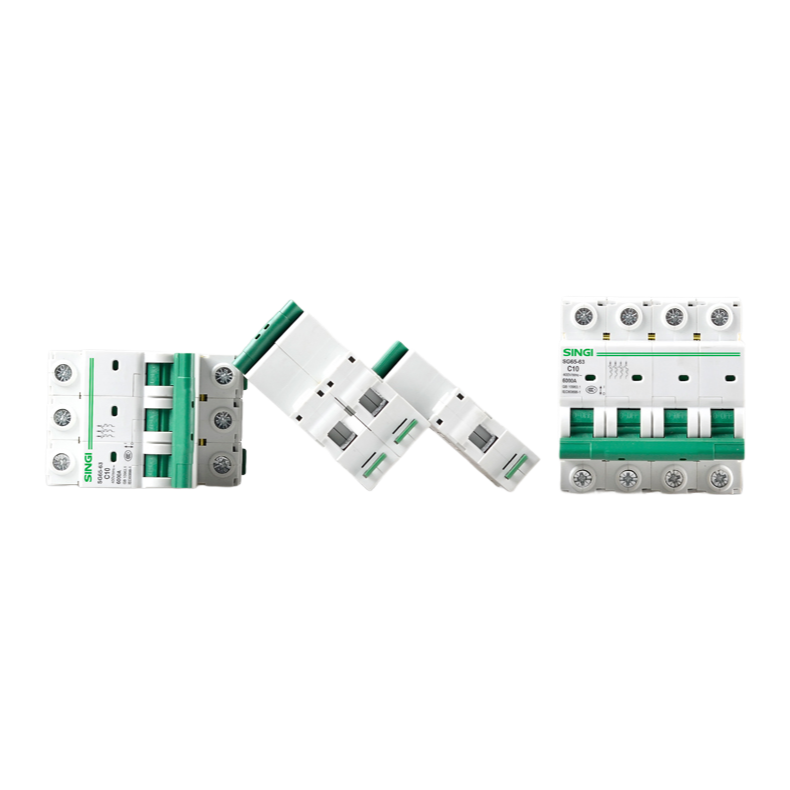

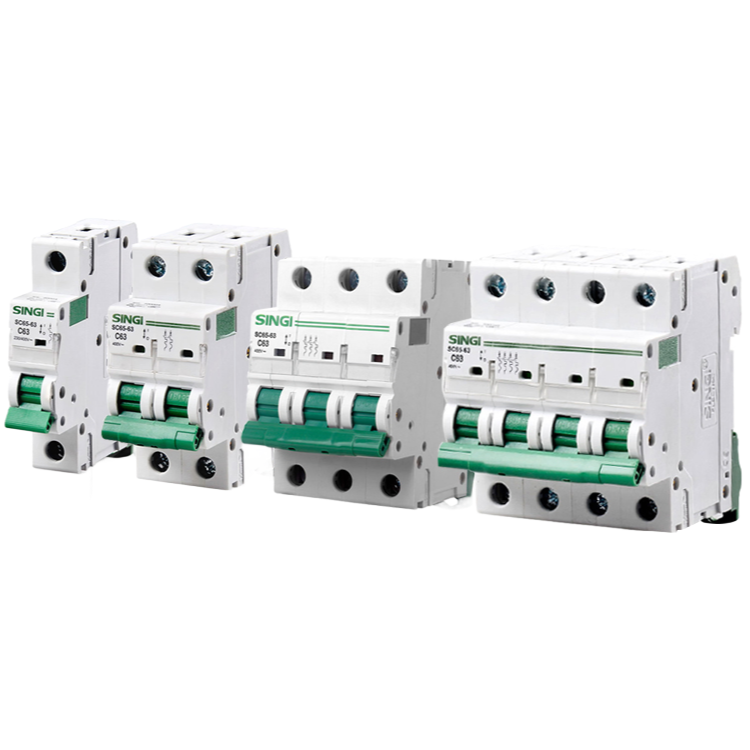

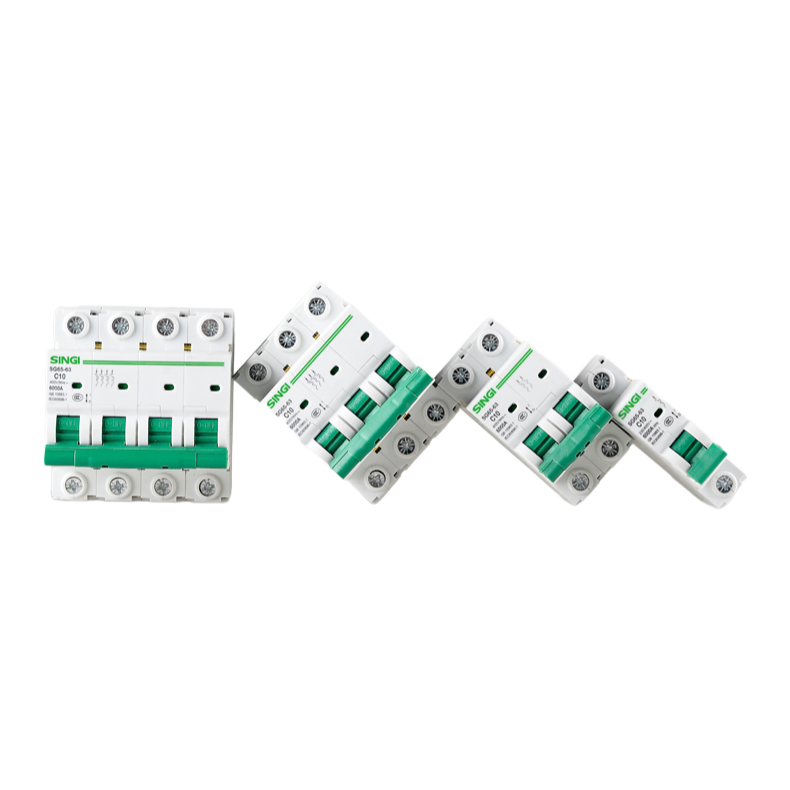

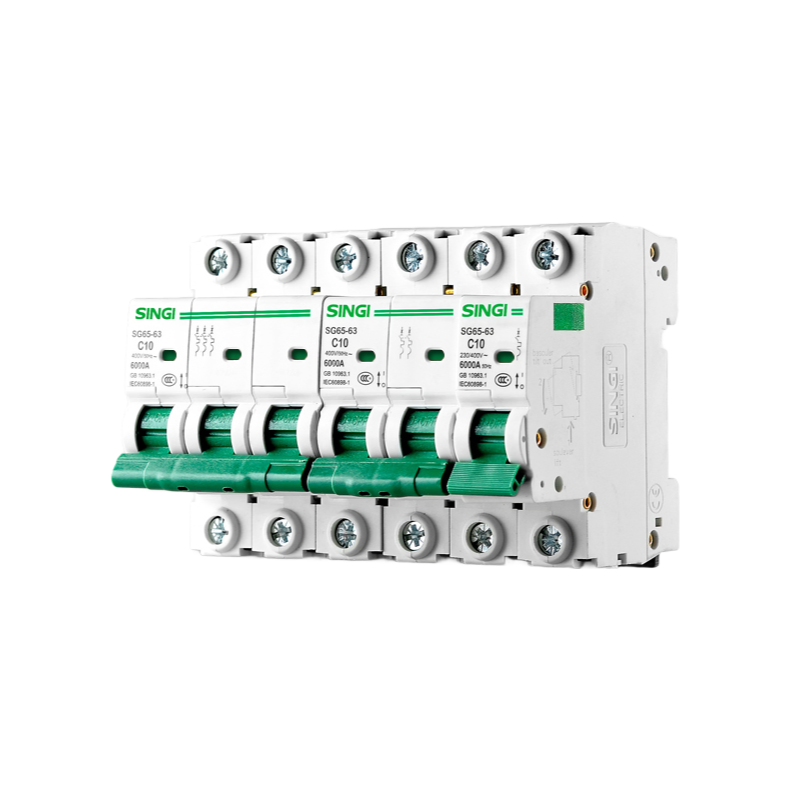

If you're wiring up a distribution board for a small commercail building or an indutrial control panel, you'll want something that handles both lighting circuits and motor starters without a fuss, and what we've got here is the SG65-63 series MCB that basically covers 6A all the way up to 63A for 230V single-phase or 400V three-phase setups at 50/60Hz.
It's 10KA breaking capacity, which is pretty standard for most light industrial applicaion, and the mechanical life sits at 10,000 operations—so it's not built for a million cycles but it'll hold up fine for years in a typical panel, and the flame-retardant PA66 housing means you don't have to worry about fire spreading if something goes wrong.
Teh trip curves come in B, C, and D, so depending on what you're protecting—say, inrush-heavy HVAC systems versus standard power outlets—you can pick the right one, and we usually stock the 10A and 16A options most often, but check lead time for the 50A or 63A as those can take 20 days or so.
One thing you might not think to ask is terminal capacity goes up to 25mm² cable, which is actually tighter than some other breakers in this class, and the IP20 rating means it's fine for indoor panels but don't put it in a wet enviroment—it's not suited for that at all.
When you order, you'll get the CE and CB certifications on the COA, plus it complies with IEC60898 and GB10963.1, and we usually have stock for the 1P and 2P versions (roughly 200 units or so), but for 3P or 4P we might need a few days to pull from our distributor network.
We typically require a MOQ of 100 pieces per model, but we can be flexible on mixed orders of different amp ratings or pole configurations — just let us know what you need and we'll work it out.
Yes, we include copies of CE and CB certificates with every shipment, and we can also provide IEC60898 test reports from a third-party lab upon request — just mention it when placing the order.
For a standard order like that, lead time is usually 15-20 working days from confirmation. If you need it faster, we can sometimes rush it to 10-12 days, depending on current production load.
Yes, the 25mm² terminal capacity is consistent across all pole options — 1P, 2P, 3P, and 4P — so you can use the same cable size regardless of configuration.
We do offer custom packaging with your brand — just send us the artwork. There's usually a small setup fee, and the per-unit cost depends on the quantity and complexity. For a standard run of 1000+ pieces, it's quite minimal.
