Factory Direct Supply DZ47-63 Miniature Circuit Breaker 230/400VAC 50/60Hz

Factory Direct Supply DZ47-63 Miniature Circuit Breaker 230/400VAC 50/60Hz

US$ 0.54 ~ 1.80

Min.Order: 2,000

Product origin: Wenzhou, Zhejiang, China

Category: Electrical Equipment & Supplies

Product Name: Electrical Equipment & Supplies

Availability:In Stock

Product Review : 0 Reviews

Infringement complaint:

* Please contact the supplier via whatsapp first before placing an order

SC65-63 High Breaking Miniature Circuit Breaker with CE/CB/ISO9001/CCC Certificates for Industrial Use

US$ 0.40 ~ 1.80

Custom DAM2 MCCB Breaker with Electric Manual Operation Options for Power Distribution Systems

US$ 1 ~ 10

MTW1-2000 to MTW1-7500 ACB Circuit Breaker Drawer Fixed Style for Power Distribution Systems

US$ 420.00 ~ 560.00

Customized CJAF1 AFDD RCBO Circuit Breaker with 6kA Short-Circuit Capacity 50/60Hz

US$ 1 ~ 10

Factory Supply IP66 Rated DC Circuit Breaker with 10kA Breaking Capacity for EV Charging

US$ 15.80 ~ 7.20

Model Number : DZ47-63
Rated Voltage : 230/400V AC
Frequency : 50/60Hz
Rated Current Range : 6A-63A
Poles : 1P, 2P, 3P, 4P
Breaking Capacity : 4kA/6kA
Mechanical Life : 10,000 operations
Housing Material : Flame-retardant PA66
Protection Degree : IP20
Operation Type : Electric

Installation Method : DIN Rail Mounting
Protection Functions : Overload and Short Circuit
Trip Characteristics : Type C (Lighting) or D (Motor)
Standards Compliance : IEC60898, GB10963.1
Ambient Temperature : -5°C to +55°C
Terminal Capacity : Up to 25mm² cable
Certifications : CE, CB, ISO9001, CCC

The DZ47-63 miniature circuit breaker features an advanced design with reliable performance and high breaking capacity. Its impact-resistant PA66 nylon shell provides excellent flame-retardant properties, making it ideal for various electrical applications.

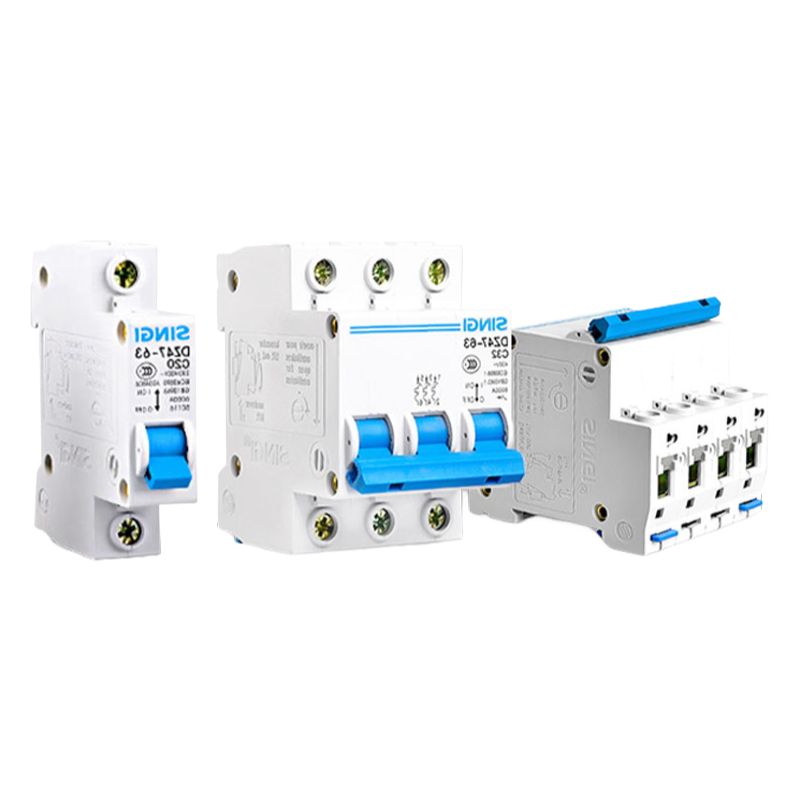

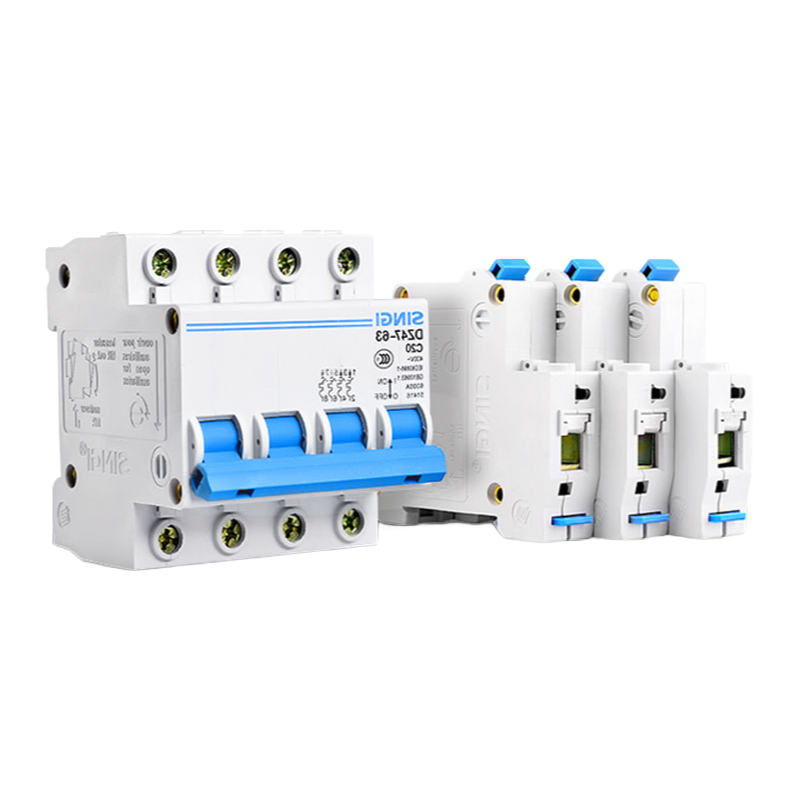

DZ47-63 MCB Miniature Circuit Breaker

This circuit breaker is suitable for power systems with frequency of 50Hz or 60Hz, rated voltage up to 400V and rated current up to 63A. It finds primary application in office buildings and residential areas for lighting, power distribution, and protection against overload and short circuit conditions.

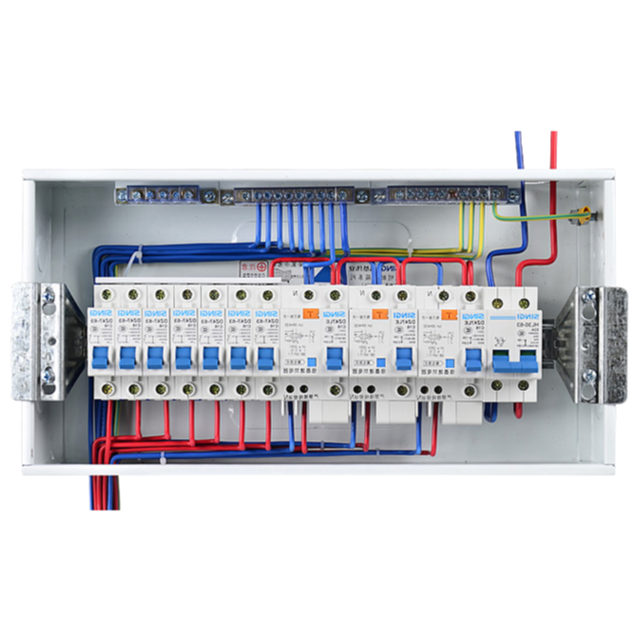

MCB Circuit Breaker Installation

The product complies with international standards IEC60898 and GB10963.1, ensuring safety and reliability in various electrical environments. With its DIN rail mounting design, installation is quick and convenient for electrical professionals.

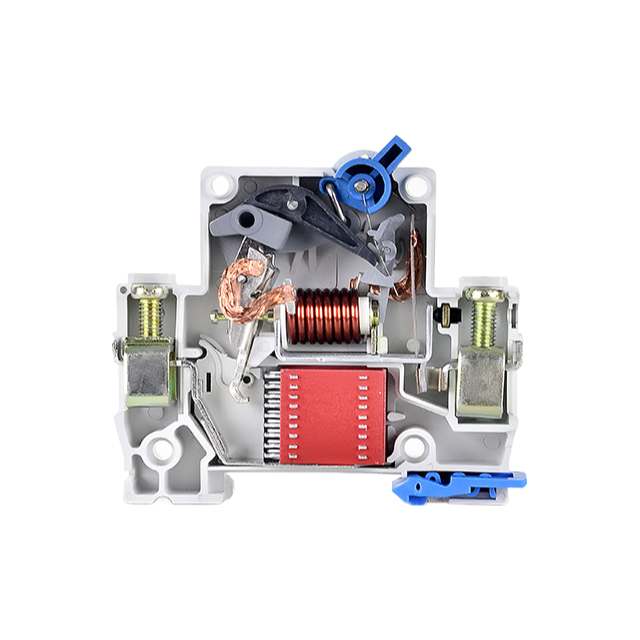

Miniature Circuit Breaker Internal Structure

Available in multiple configurations with 1-4 poles and various current ratings from 6A to 63A, this MCB offers flexibility for different electrical system requirements. The product comes with comprehensive certifications including CE, CB, ISO9001, and CCC.
