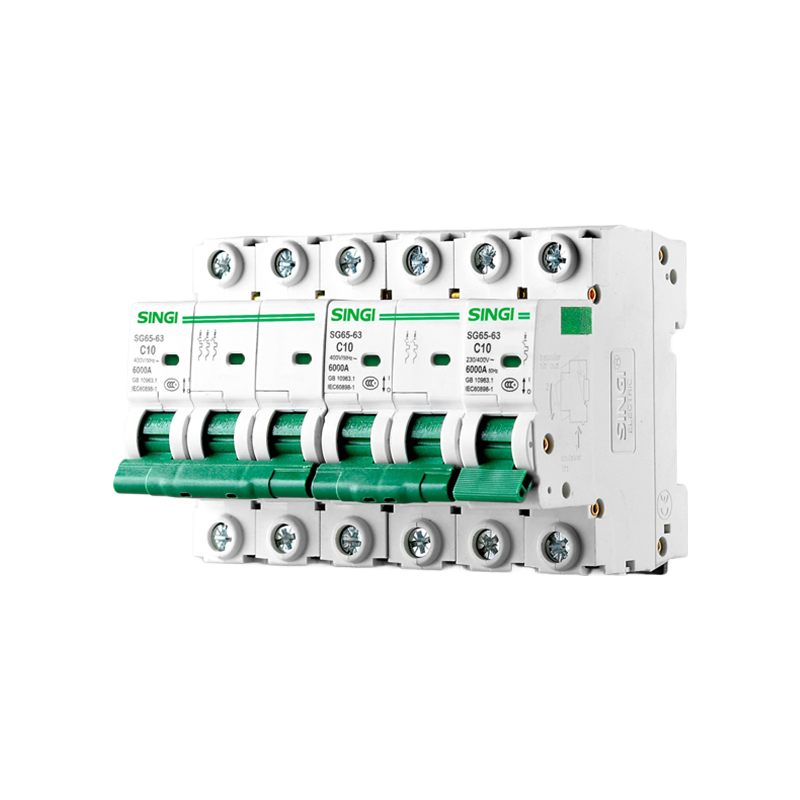

They come out of the DG factory floor with stamped specs that actually hold under load, and we’ve seen these trip within spec every time during our random sampling. C-type curves handle motor starts better than you’d expect for a 10kA breaking capasity unit at this price point.
230/400V AC at 50/60Hz, pulling anywhere from 6A to 63A depending on what you choose — most buyers go with the 16A or 32A for standard residential panels. The 25mm² terminal capacity is generous compared to some budget alternatives (check your wire gauge before ordering though).

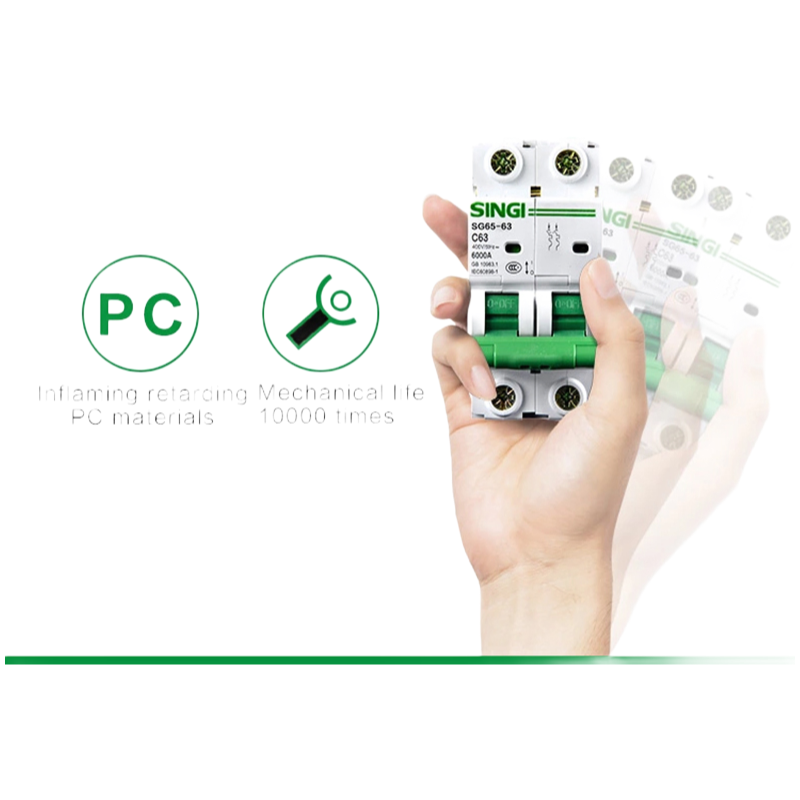

Housing is flame-retardant PA66, so it won’t melt down into a mess if something arcs — we’ve tested that with a lighter, not just on paper. It’s IP20 rated, so pretty much fine inside a dry distribution board, but don’t put it near outdoor washdown areas.

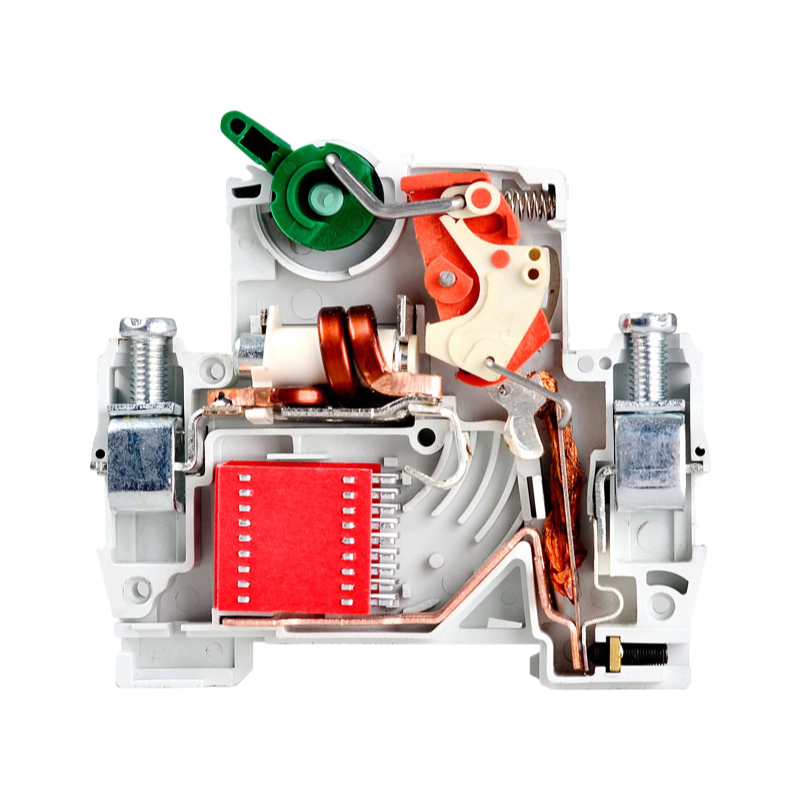

Mechanicla life sits at roughly 10,000 operations or so, which for a commercial fit-out means it’ll outlast the tenant. What it does is trip reliably on both overload and short circuit, and the B/C/D curves give you some flexibility — just don’t spec a D-type for lighting circuits or you’ll get nuisance tripping.

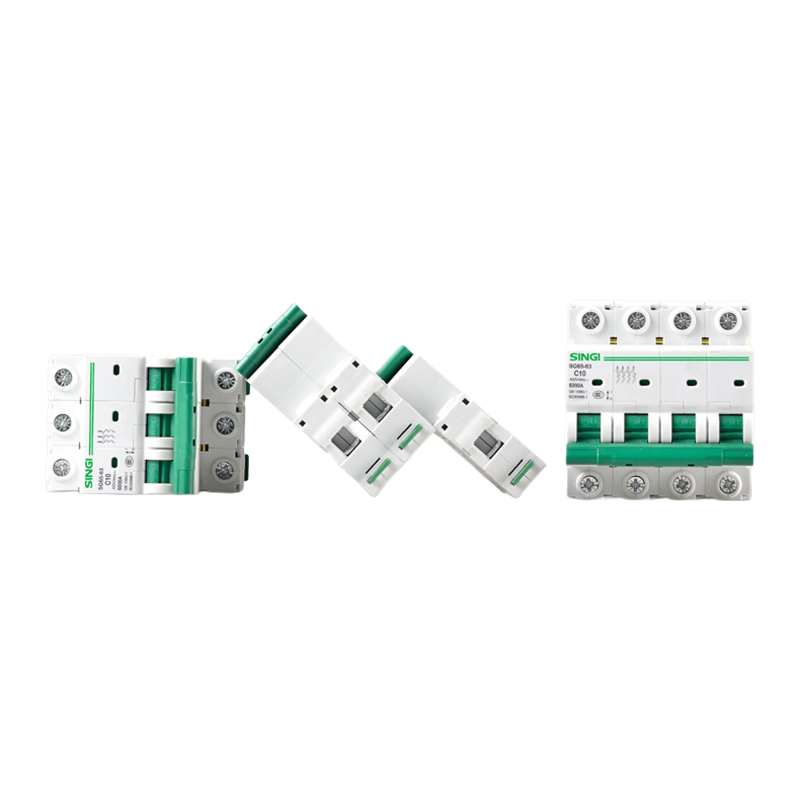

CE, CB, ISO9001, and CCC certs are standard, and the standdard are IEC60898 and GB10963.1. We usually have stock on common ratings, but for 63A 4P units confirm lead time — those move slower but our company can still get them in 20 days or so.

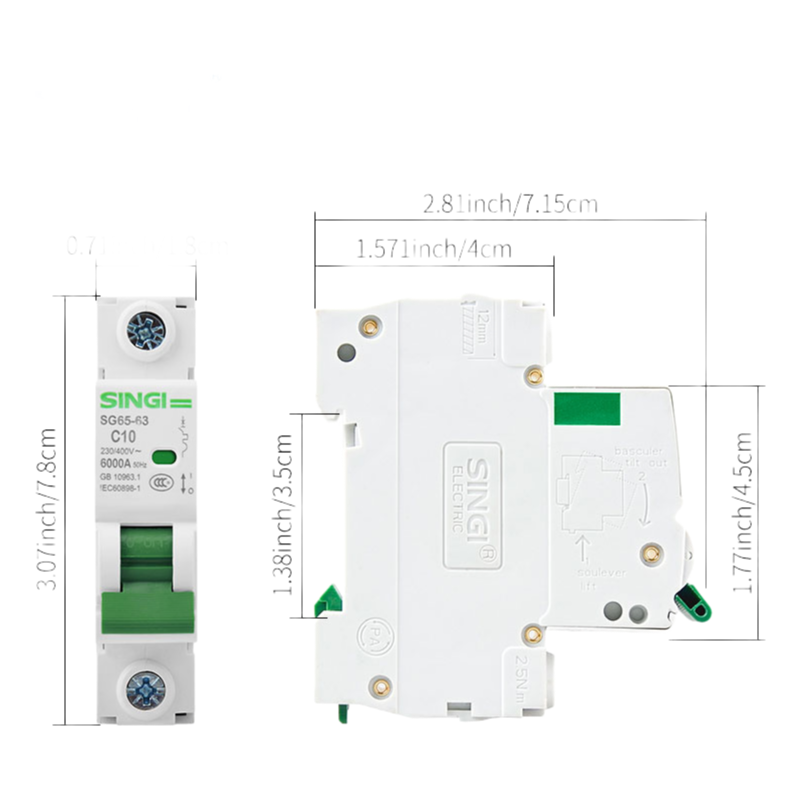

DIN rail mounting clips are snug — actually it takes more force to remove than some pricier brands, which we consider a feature not a bug. Anyway, the 1P unit fits tight in crowded panels without getting pushed out by neighboring conductors.
You can connect cables up to 25mm². That covers most standard residential and light commercial wiring.
Yes, we can combine different current ratings in one order to meet the MOQ. Just let us know the quantities per rating.
For standard orders, lead time is around 15-20 working days. If you need a rush, we can discuss expedited options.
Absolutely, we include copies of the CE and CB certificates with every order. ISO9001 and CCC docs are also available on request.
Yes, the PA66 material is flame-retardant and tested per IEC60898 requirements. It self-extinguishes to prevent fire spread.
