Customized 1P-4P Miniature Circuit Breaker for Residential and Commercial Power Distribution

Customized 1P-4P Miniature Circuit Breaker for Residential and Commercial Power Distribution

US$ 8.89 ~ 2.09

Min.Order: 20

Product origin: Shanghai, China

Category: Electrical Equipment & Supplies

Product Name: Electrical Equipment & Supplies

Availability:In Stock

Product Review : 0 Reviews

Infringement complaint:

* Please contact the supplier via whatsapp first before placing an order

Wholesale DAB6-63 Circuit Breaker - 1P 2P 3P 4P Options for Power Distribution

US$ 0.60-0.65

Factory Supply DZ47-63 4P Low Voltage Circuit Breaker for Overload and Short-Circuit Protection

US$ 0.65 ~ 0.52

Factory Supply KNBL1-32 1P+N Residual Current Circuit Breaker 50/60Hz

US$ 1 ~ 8

Customized 1P-4P Miniature Circuit Breaker for Residential and Commercial Power Distribution

US$ 8.89 ~ 2.09

UV Resistant 1500VDC Molded Case Circuit Breaker for Photovoltaic Applications

US$ 20.00 ~ 35.00

Model Number : EDB1-63 Series
Type : Miniature Circuit Breaker (MCB)
Pole Options : 1P, 2P, 3P, 4P
Rated Current : 10A,16A,20A,25A,32A,40A,50A,63A
Rated Voltage : 250V-1000V DC
Breaking Capacity : 6kA/10kA
Tripping Characteristics : B/C Curve
Electrical Life : 2000 Cycles
Mechanical Life : 20000 Cycles
Terminal Capacity : 2.5-25mm²

Protection Degree : IP40 (Wiring port IP20)
Standards : AS 60947.3:2018, IEC 60947.2:2015
Certifications : UL, TUV, CB, CE, SAA
Dimensions : 18mm (W)/Pole × 68mm (H) × 81mm (D)

The EDB1-63 series miniature circuit breaker provides reliable overload and short circuit protection for electrical systems. Designed specifically for DC applications in solar PV systems and energy storage solutions, this MCB offers superior performance with thermal magnetic tripping mechanism.

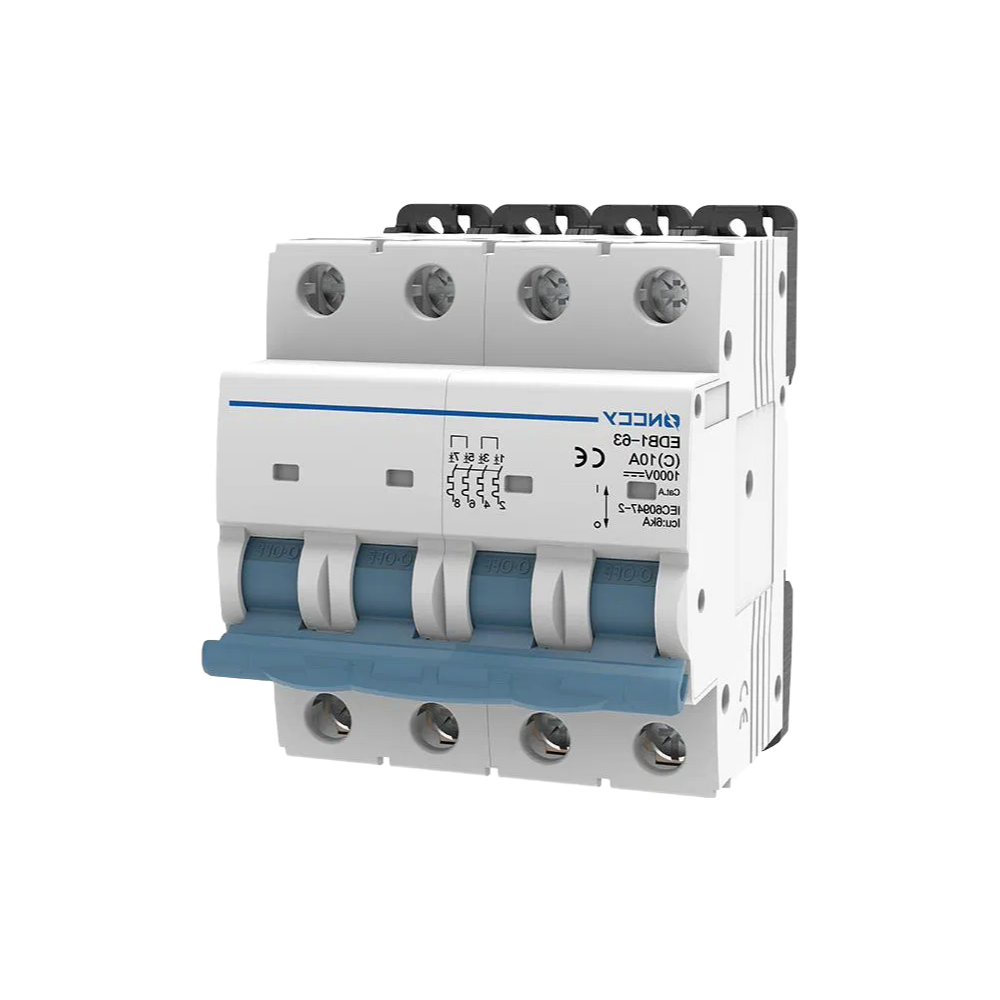

MCB Circuit Breaker Product Image

With clear ON-OFF indicators and transparent cover for line marking, these circuit breakers are user-friendly and maintenance-free. The compact design allows for space-saving installation in distribution panels while providing excellent protection against electrical faults.

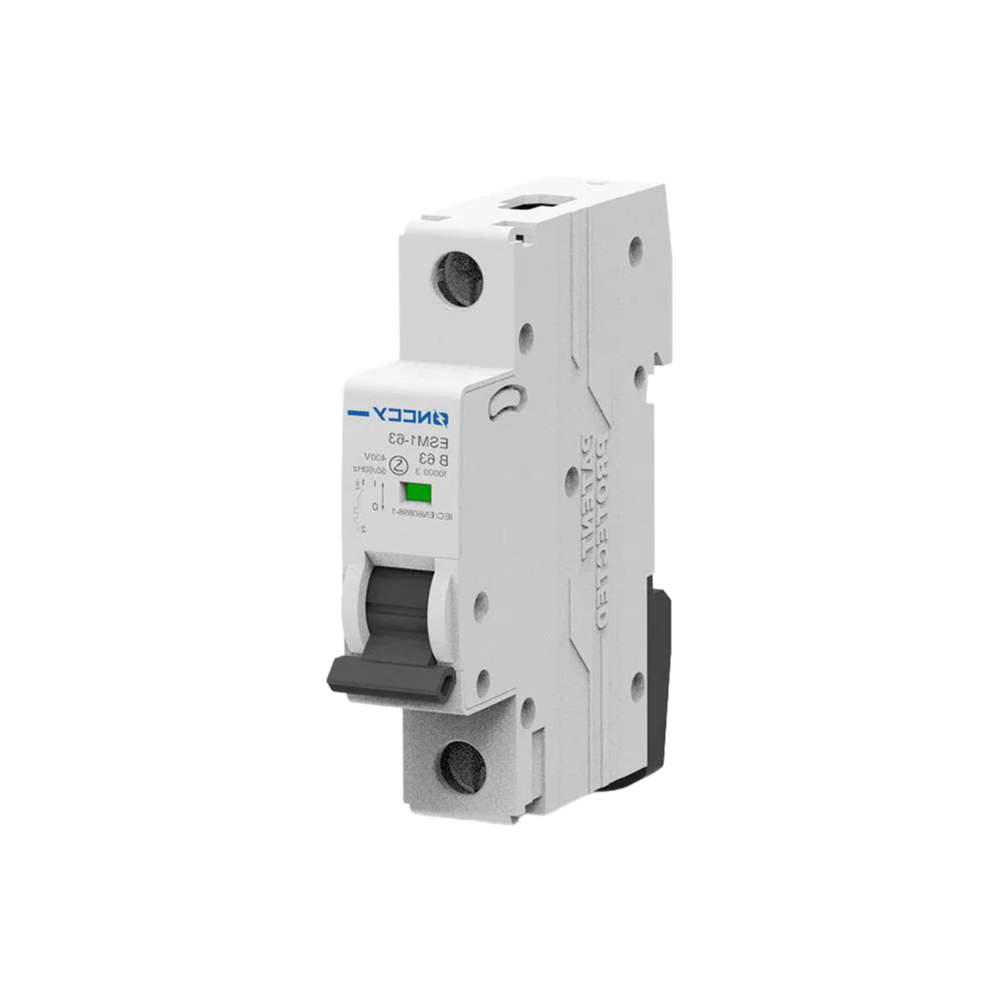

MCB Circuit Breaker Side View

Our MCBs feature high breaking capacity up to 10kA and are available in multiple current ratings from 10A to 63A. The products comply with international standards including AS 60947.3:2018 and IEC 60947.2:2015, ensuring safety and reliability in various applications.

MCB Circuit Breaker Technical Specifications

These miniature circuit breakers are suitable for both residential and commercial power distribution systems up to 63A. The durable construction withstands harsh environmental conditions with operating temperature range from -30°C to +70°C.
