KNLE2-63 C16 High-Speed Circuit Breaker with Overcurrent Protection 16A Frame Class KNLE2-63 C16 High-Speed Circuit Breaker with Overcurrent Protection 16A Frame Class
KNLE2-63 C16 High-Speed Circuit Breaker with Overcurrent Protection 16A Frame Class KNLE2-63 C16 High-Speed Circuit Breaker with Overcurrent Protection 16A Frame Class
KNLE2-63 C16 High-Speed Circuit Breaker with Overcurrent Protection 16A Frame Class KNLE2-63 C16 High-Speed Circuit Breaker with Overcurrent Protection 16A Frame Class
KNLE2-63 C16 High-Speed Circuit Breaker with Overcurrent Protection 16A Frame Class KNLE2-63 C16 High-Speed Circuit Breaker with Overcurrent Protection 16A Frame Class
KNLE2-63 C16 High-Speed Circuit Breaker with Overcurrent Protection 16A Frame Class KNLE2-63 C16 High-Speed Circuit Breaker with Overcurrent Protection 16A Frame Class
KNLE2-63 C16 High-Speed Circuit Breaker with Overcurrent Protection 16A Frame Class KNLE2-63 C16 High-Speed Circuit Breaker with Overcurrent Protection 16A Frame Class

KNLE2-63 C16 High-Speed Circuit Breaker with Overcurrent Protection 16A Frame Class

US$ 3.00 ~ 2.30
Min.Order: 10
Product origin: Wenzhou, Zhejiang, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 10 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : KNLE2-63 C16
  • Type : RCBO Circuit Breaker
  • Frame Class : 16A
  • Rated Working Voltage : 230V
  • Rated Frequency : 50Hz
  • Rated Working Current : 6,10,16,20,25,32,40,50,63A
  • Rated Residual Operating Current : 10mA, 30mA, 100mA, 300mA
  • Breaking Capacity : 6000A
  • Pole Number : 1P
  • Operation Type : Electric
  • Protection Functions : Overcurrent Protection, Leakage Protection
  • Installation Method : DIN Rail Mount
  • Mechanical Life : 20,000 operations
  • Electrical Life : 4,000 operations
  • Dimensions : 53×40×19.5mm
  • Certifications : CE, CB, CCC, ISO9001
  • Arc-extinguishing Medium : Standard
  • Application : Industrial, Commercial, Residential

The KNLE2-63 C16 circuit breaker is a high-quality electrical protection device designed for reliable performance in various applications. This 1P circuit breaker features a compact design with dimensions of 53*40*19.5mm, making it suitable for space-constrained installations.

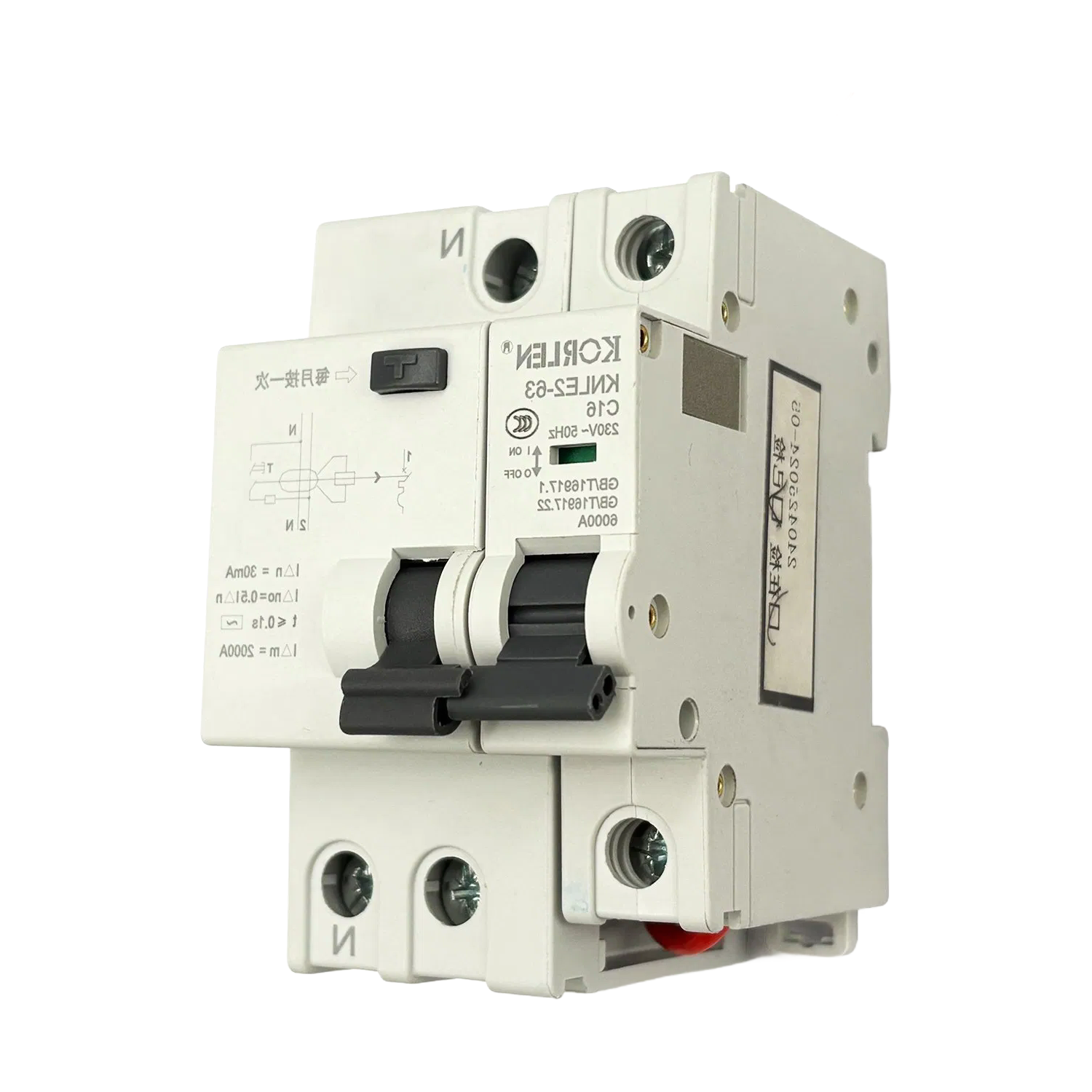

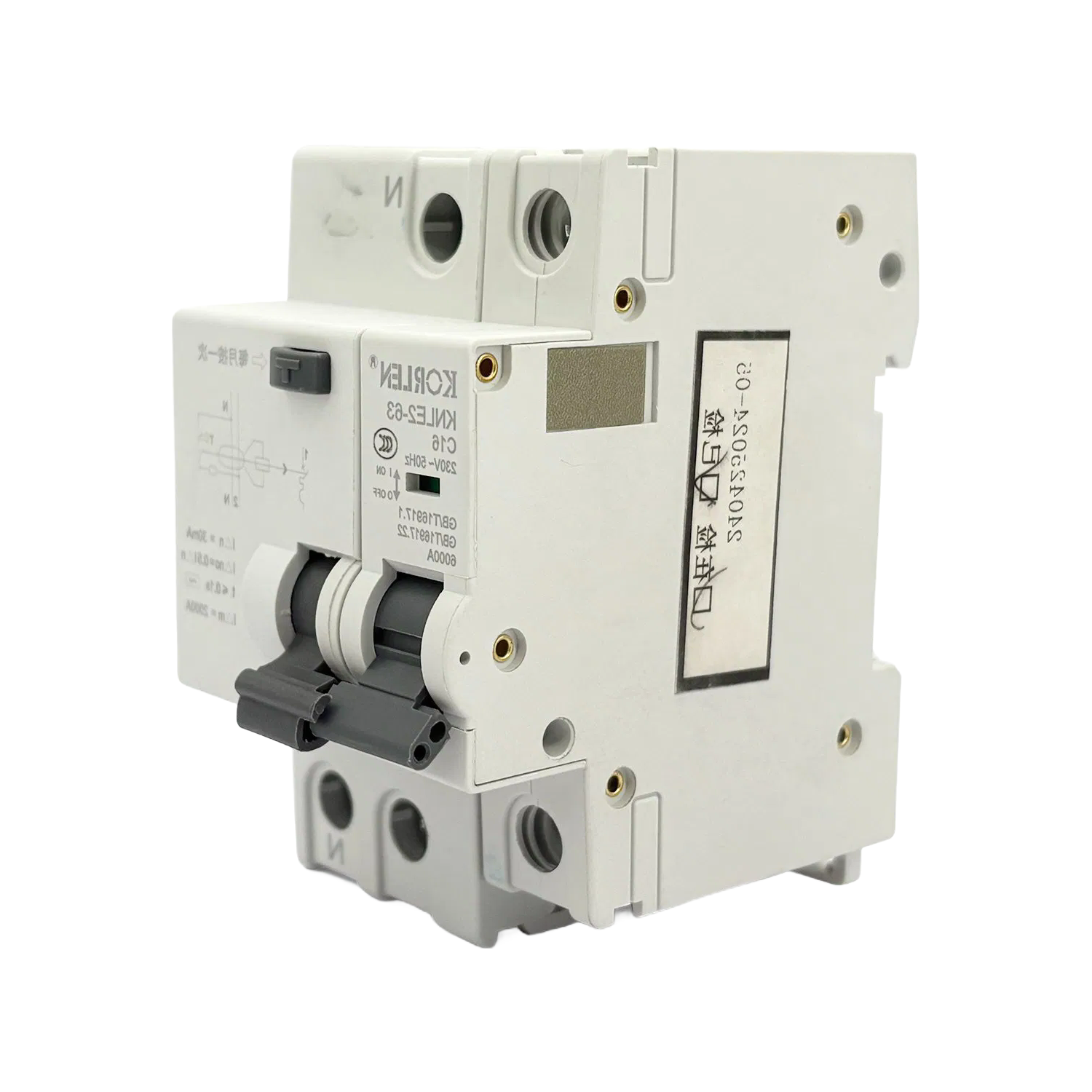

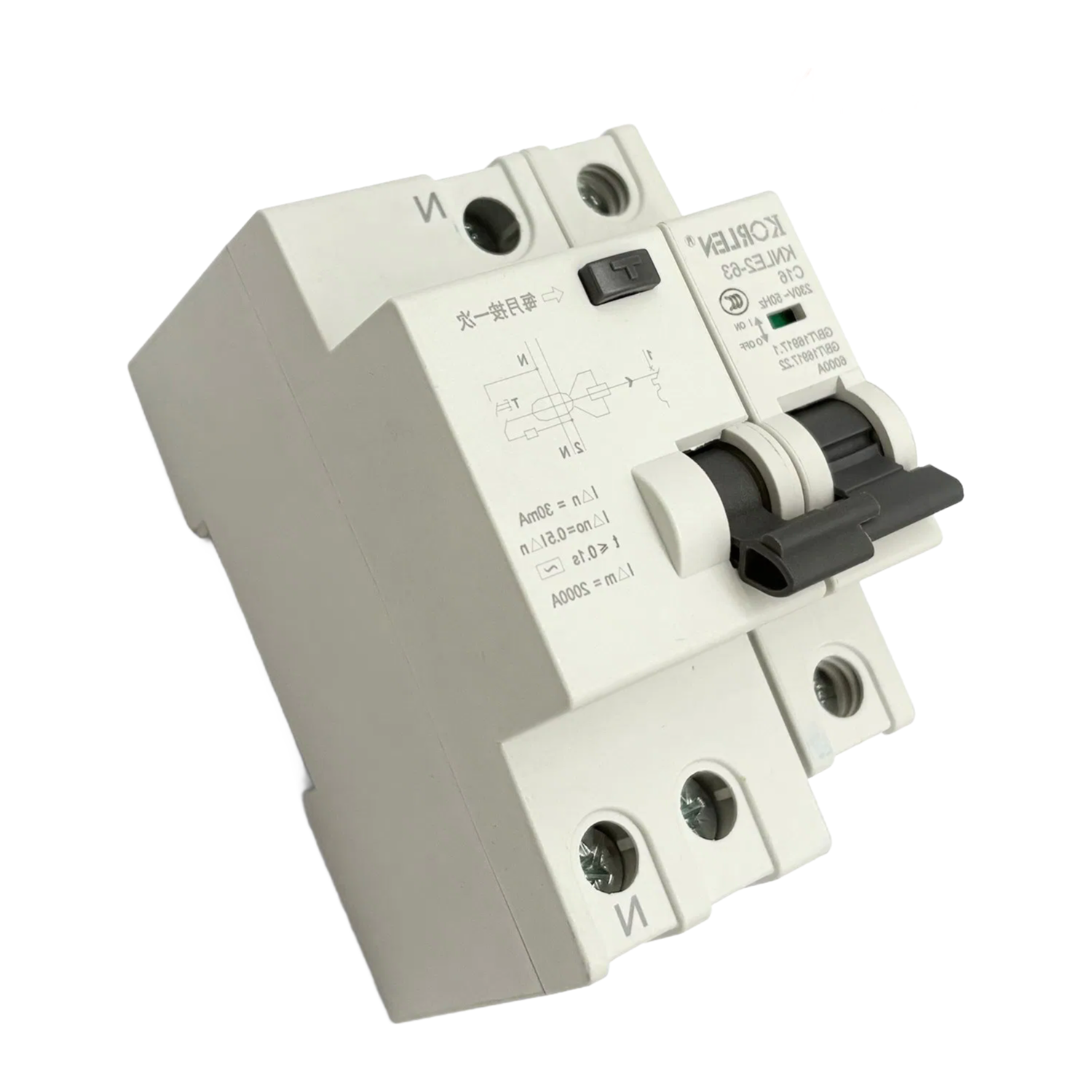

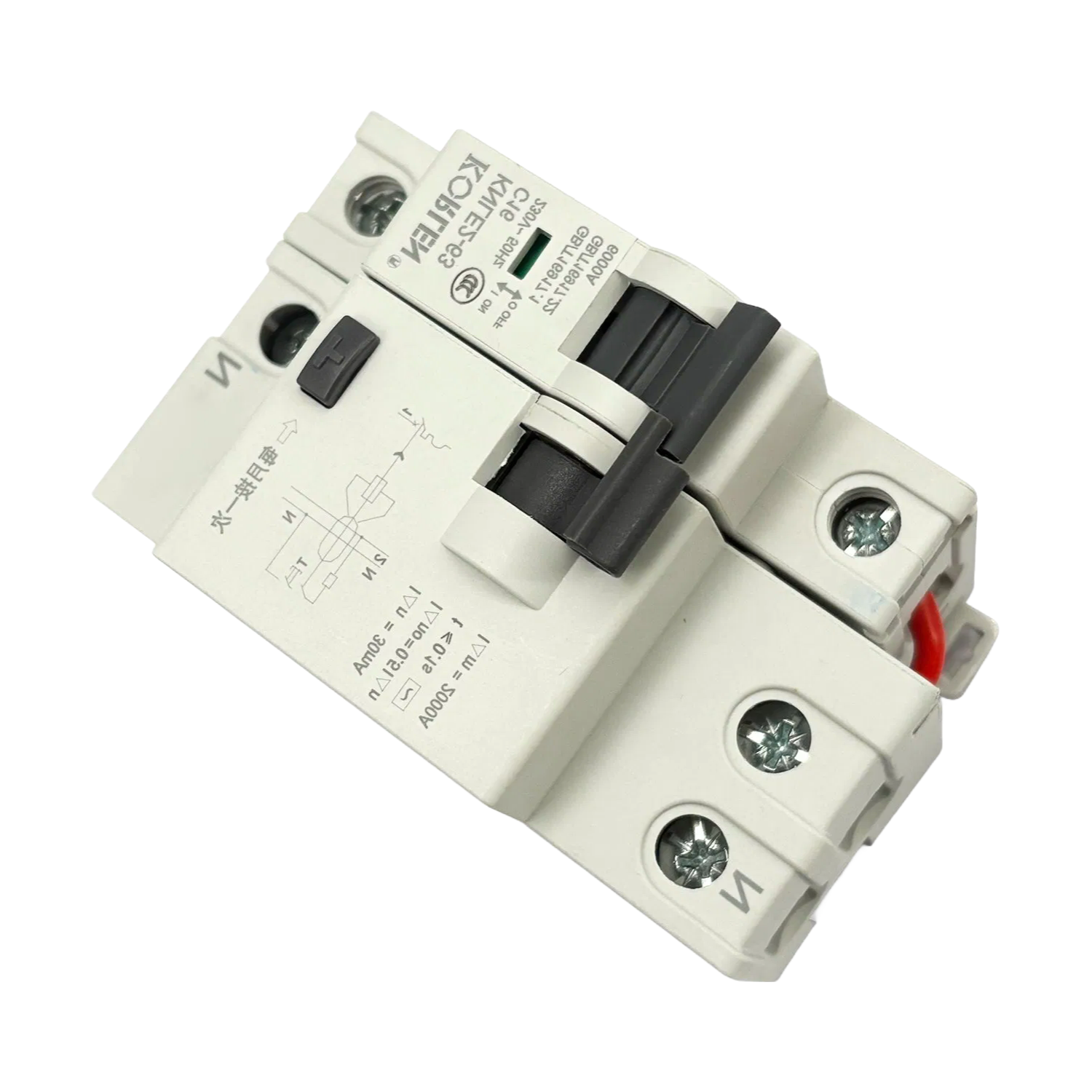

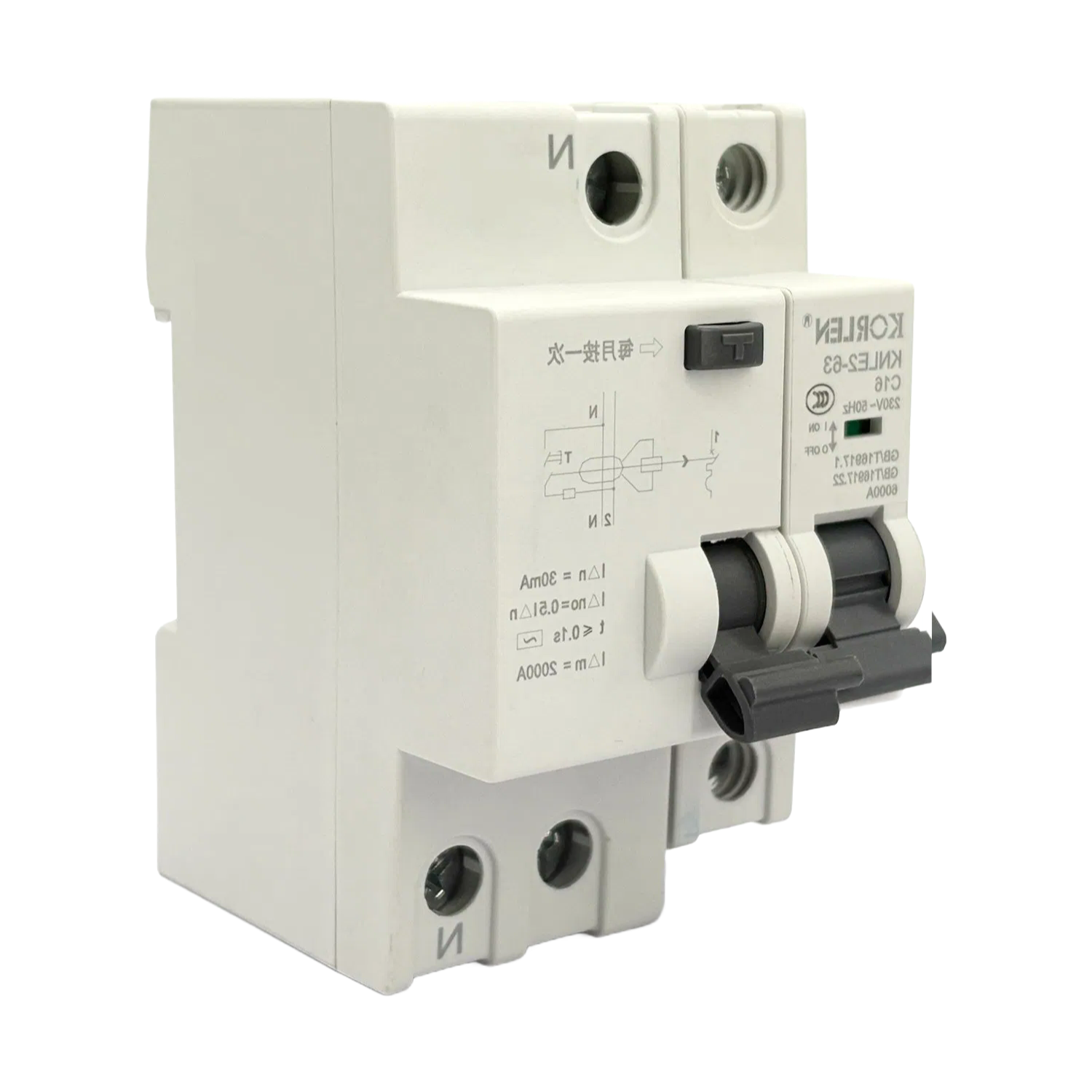

KNLE2-63 C16 Circuit Breaker

With a rated working voltage of 230V and frequency of 50Hz, this circuit breaker offers multiple current options ranging from 6A to 63A. The device provides comprehensive protection with both overcurrent and leakage protection functions, ensuring electrical safety in your systems.

Circuit Breaker Installation

The KNLE2-63 C16 features a high breaking capacity of 6000A and comes with standard DIN rail mounting for easy installation. Its electric operation type and high-speed performance make it suitable for demanding electrical environments.

Available in different residual operating current options (10mA, 30mA, 100mA, and 300mA), this circuit breaker can be customized to meet specific application requirements. The product has undergone rigorous testing and holds multiple certifications including CE, CB, and CCC.

Circuit Breaker Specifications

With a mechanical life of 20,000 operations and electrical life of 4,000 operations, this durable circuit breaker is built to last. The compact yet robust design ensures reliable performance in various environmental conditions.

Our manufacturing capabilities allow for OEM and ODM services, enabling customization of specifications and appearances to meet your specific needs. The product is manufactured with strict quality control processes to ensure consistent performance and reliability.

Circuit Breaker Components
