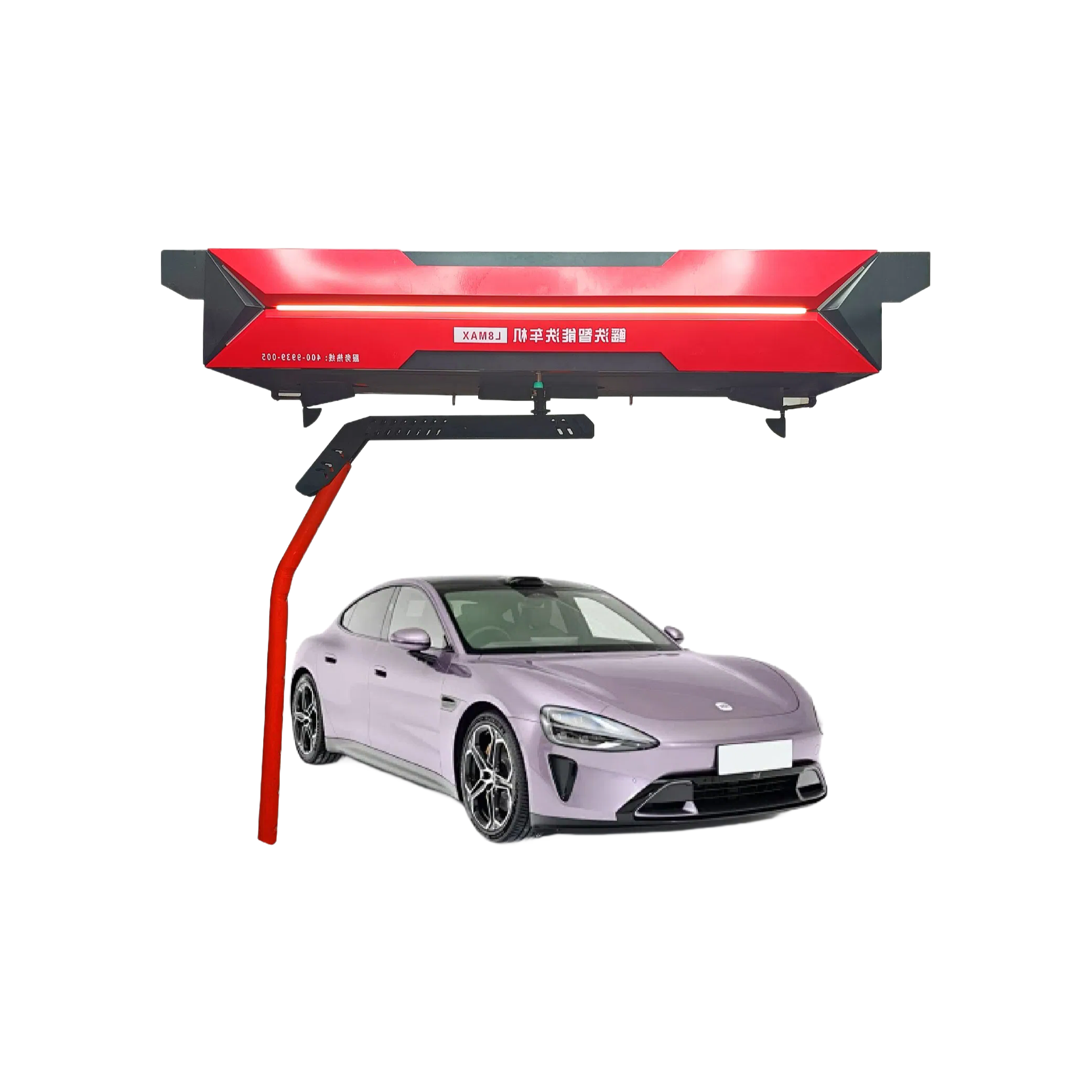

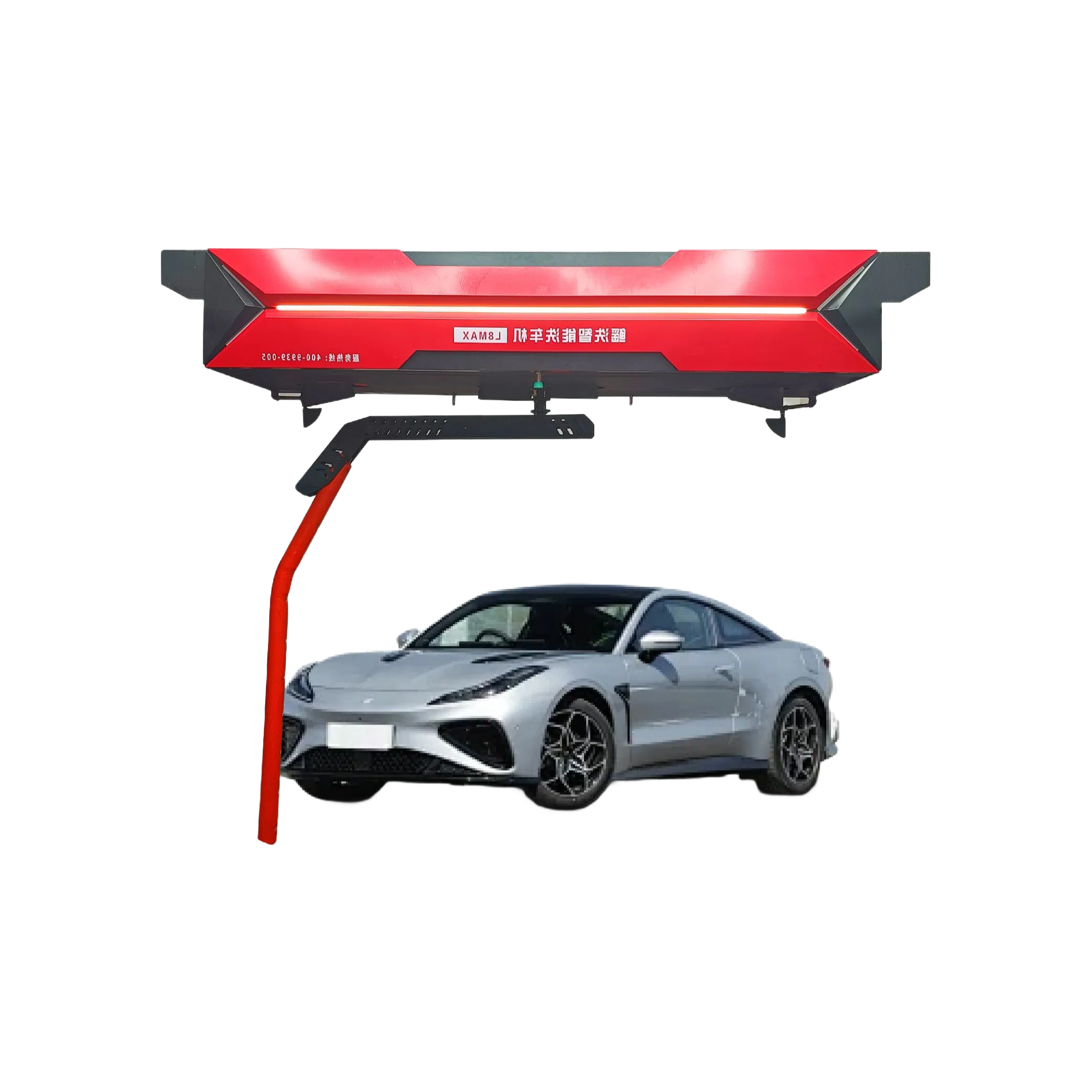

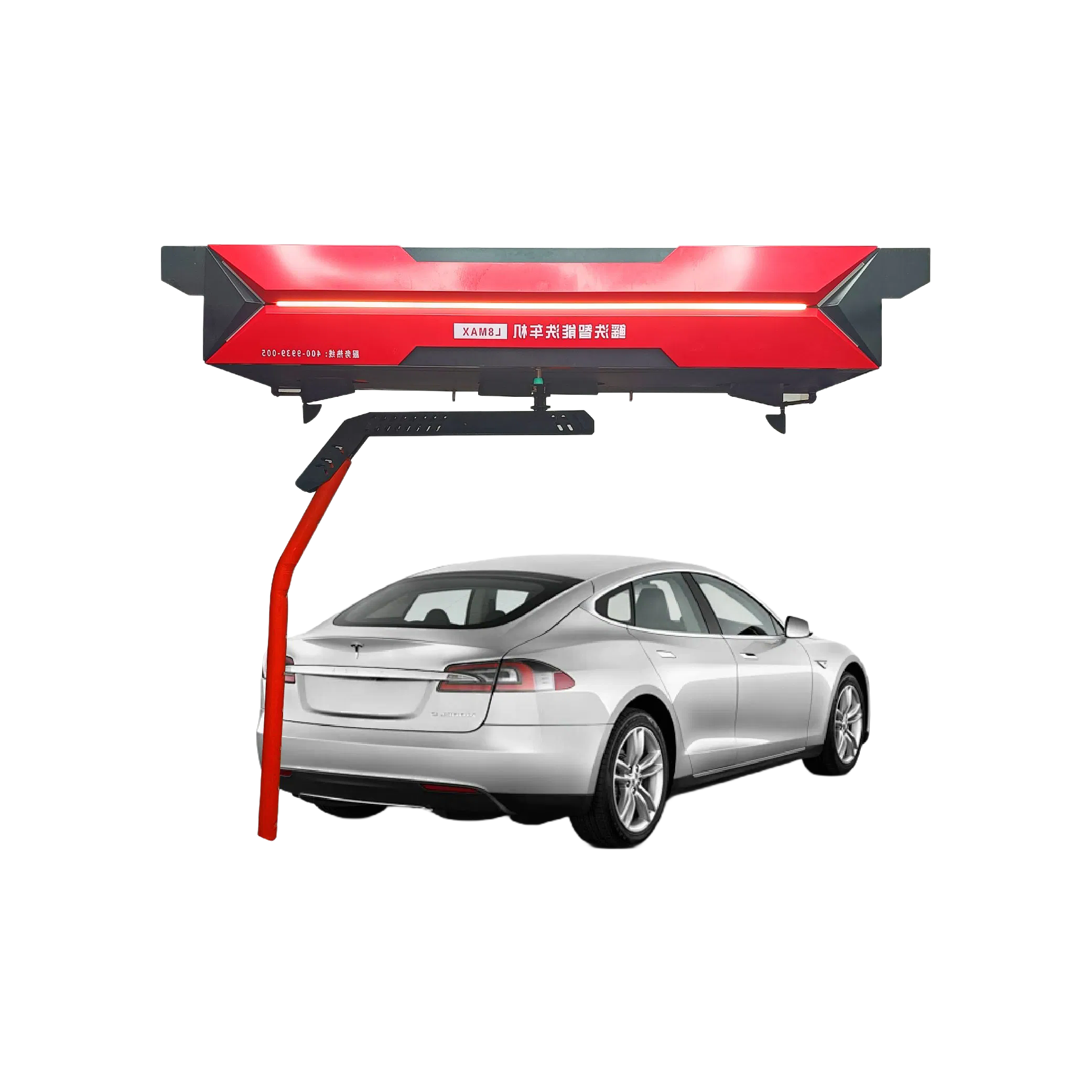

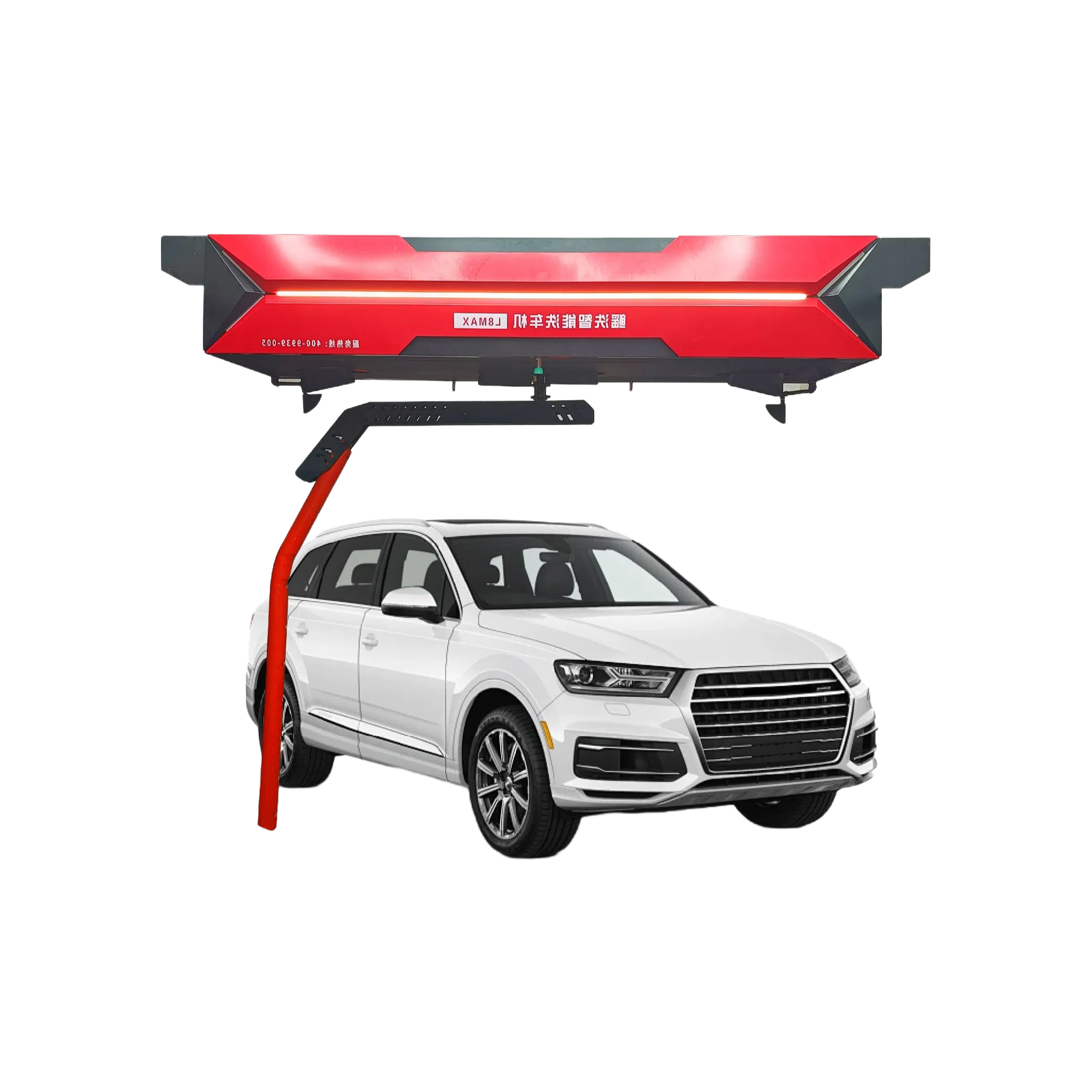

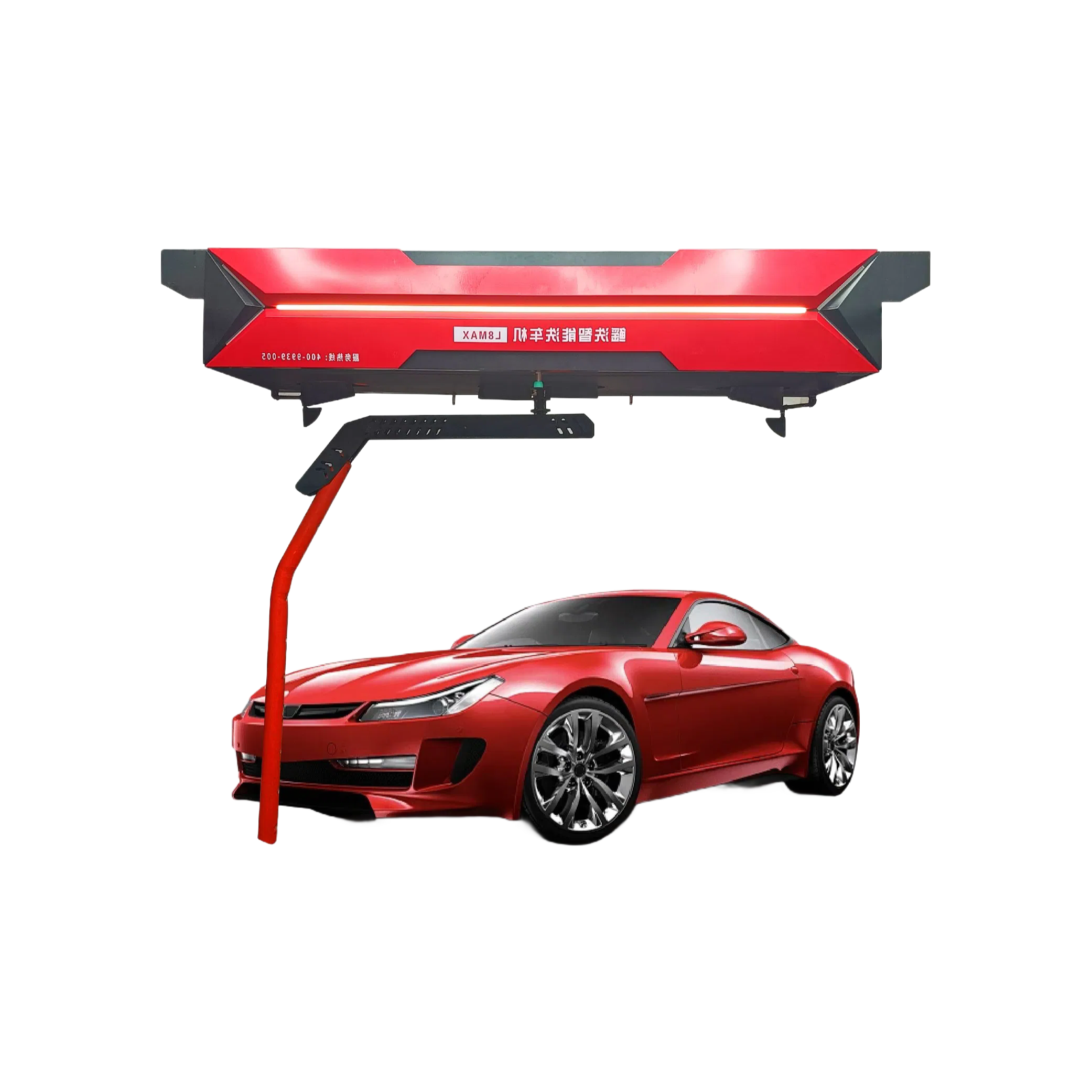

It's not going to fit every lot or every site—the footprint is roughly 2600mm by 950mm and weighs in at 1800kg, so you'll need a solid concrete pad and a 380V/50Hz three-phase supply, which rules out some smaller retrofits or residential setups.
But for a busy commercail operation that runs 24/7 unmanned, the fully automatic cycle—high-pressure water at 100-120kg/cm², foam, wax, and forced air dry—actually handles the throughput pretty well, and the hot-dip galvanized steel frame comes with a 10-year anti-corrosion warranty (components get 3 years).
We've got four model variants—L7MAX, L8MAX, L9MAX, and L9Ultra—and in most cases the main difference is the program customization and sensor suite; teh L9Ultra adds a few extra wash cycles and a tighter tolerance on the PLC touchscreen control.
The German waterproff deceleration motors and over 90% imported components mean the thing doesn't shake apart after 5000 cycles, which is main complaint we hear about cheaper units with painted frames—basically, the corrosion protection is what separates this from a 5-year machine.
CE, ISO9001, RoHS, and GS certs are on file, and we usually stock the L8MAX and L9MAX; lead time on the L7 or L9Ultra is about 20 days or so (confirm before ordering), and you can fit 5 units per 40-foot container.
We typically require a minimum of 1 unit for the L7MAX, but container loading is optimized at 5 units per 40FT container. We can discuss smaller orders if needed.
Standard lead time is 25-30 working days. Customized models like the L9Ultra may take an extra 10-15 days depending on the complexity of the program changes.
Yes, we include CE, ISO9001, RoHS, and GS certificates with every shipment. They are available in both digital and hard copy formats for customs clearance and quality assurance.
The frame is submerged in molten zinc, creating a thick, bonded coating that prevents rust even in wet environments. This process ensures the 10-year frame warranty, and with proper maintenance, it can last up to 20 years.
Absolutely—these motors are designed for industrial-grade durability with IP65 waterproof rating and thermal protection. They run reliably for 10+ hours daily under high-pressure conditions without overheating.
