Factory Direct Supply Low Noise Ceiling Mounted Ventilation Equipment with 1 Year Warranty

Factory Direct Supply Low Noise Ceiling Mounted Ventilation Equipment with 1 Year Warranty

US$ 250.00 ~ 270.00

Min.Order: 5

Product origin: Dezhou, Shandong, China

Category: Medical Equipment

Product Name: Medical Equipment

Availability:In Stock

Product Review : 0 Reviews

Infringement complaint:

* Please contact the supplier via whatsapp first before placing an order

High Precision OEM CNC Machining Parts Manufacturer for Metal Processing Machinery

US$ 0.20 ~ 0.18

High-Power 443W Air Mover for Carpet Drying and Water Restoration - AM-A04-1 Model

US$ 1 ~ 62

High Quality Medical Ventilator for ICU with 10.4" TFT Display and Multiple Breathing Modes

US$ 900.00 ~ 8000.00

Custom CNC Turning and Milling Services for Aluminum Brass Steel Stainless Steel Parts

US$ 0.20 ~ 0.18

Energy Saving Cross Flow Heat Exchanger Core for Ventilation Systems

US$ 1500.00 ~ 1400.00

Model Range : XH-400D, XH-500D, XH-800D, XH-1000D, XH-1500D
Airflow Capacity : 400-1500 m³/h
Static Pressure : 60-160 Pa
Motor Power : 60-360W (dual motor options)
Heat Exchange Efficiency : ≥70%
Noise Level : ≤45 dB(A)
Power Supply : 220V/50Hz (custom voltages available)
Housing Material : Galvanized steel with aluminum frame
Filter Grade : Standard G4+F8 (options available)
Heat Exchanger Type : Plate-type counterflow

Weight : 45-85kg (model dependent)
Operating Temperature : -30°C to +50°C
Humidity Range : 10-90% RH (non-condensing)
Certifications : ISO, CE, RoHS
Warranty : 1 year (extendable)
Customization : Logo, color, voltage, filters

The XH Series Fresh Air Ventilators are designed for optimal indoor air quality management in commercial and industrial spaces. These units feature advanced plate-type heat exchangers that recover over 70% of thermal energy while providing continuous fresh air circulation.

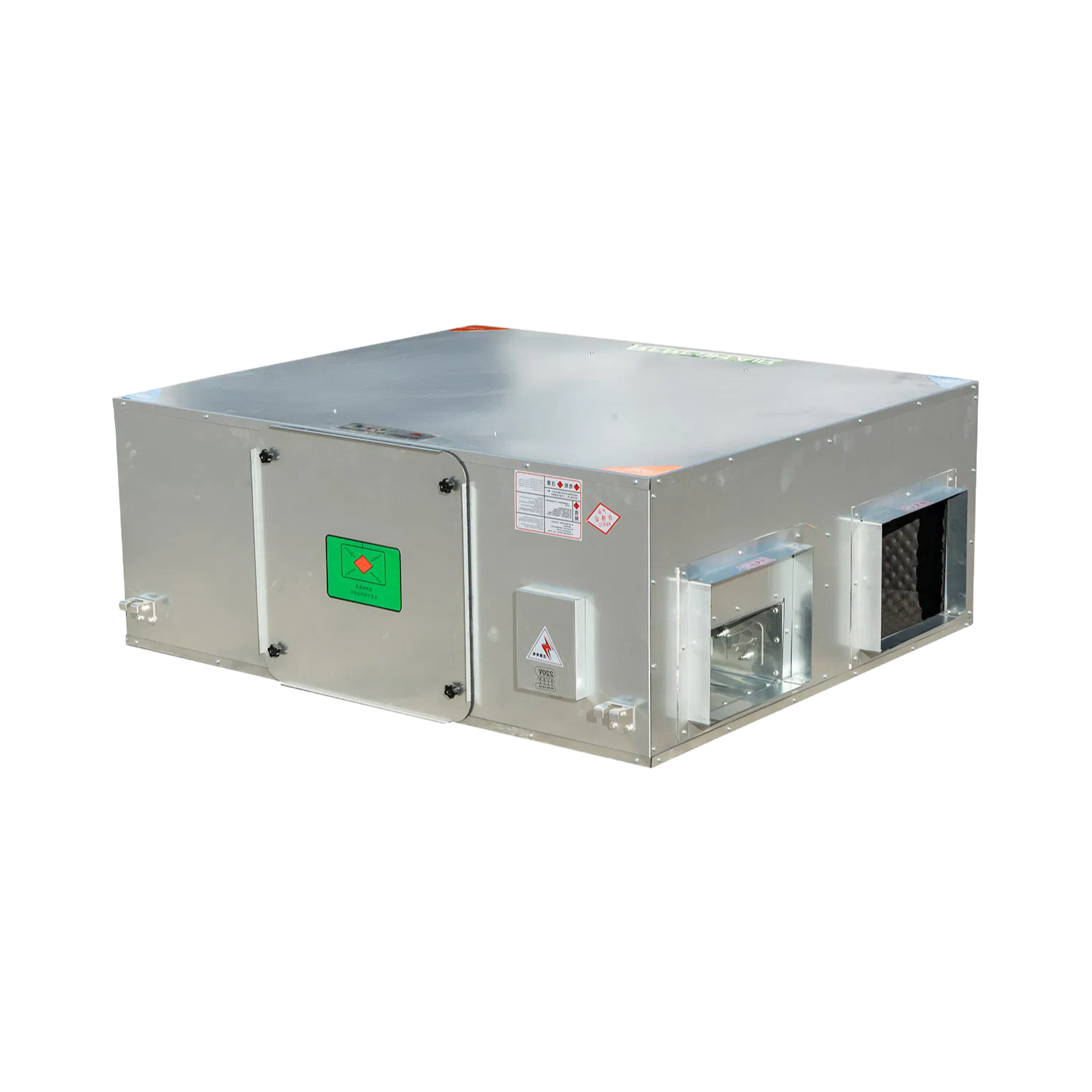

XH Series Fresh Air Ventilator

Our ventilation systems employ high-efficiency motors and aerodynamic fan designs to deliver powerful airflow (400-1500m³/h) while maintaining low noise levels. The units are constructed from premium galvanized steel with aluminum alloy frames for durability and corrosion resistance.

Ventilator Internal Structure

Key features include bidirectional airflow technology, multi-stage filtration systems, and intelligent temperature exchange mechanisms. The compact ceiling-mounted design simplifies installation in both new construction and retrofit applications.

The ventilators are particularly effective in: Office buildings, Schools and universities, Hospitals and healthcare facilities, Hotels and restaurants, Industrial workshops.

Ventilator Installation Diagram

All units undergo rigorous quality control testing and are ISO certified for performance and safety. The standard configuration includes G4+F8 filter combinations, with optional HEPA or activated carbon filters available.
