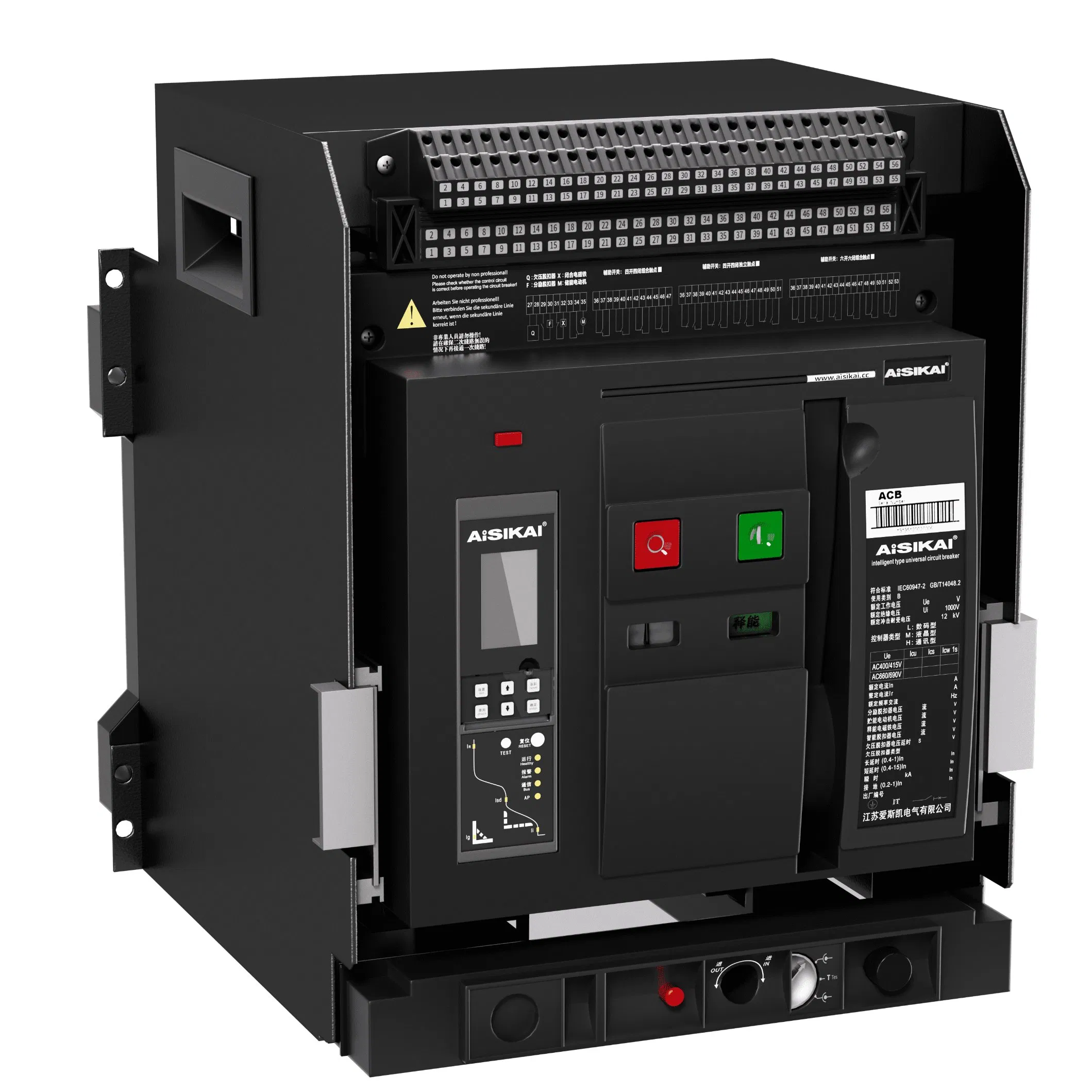

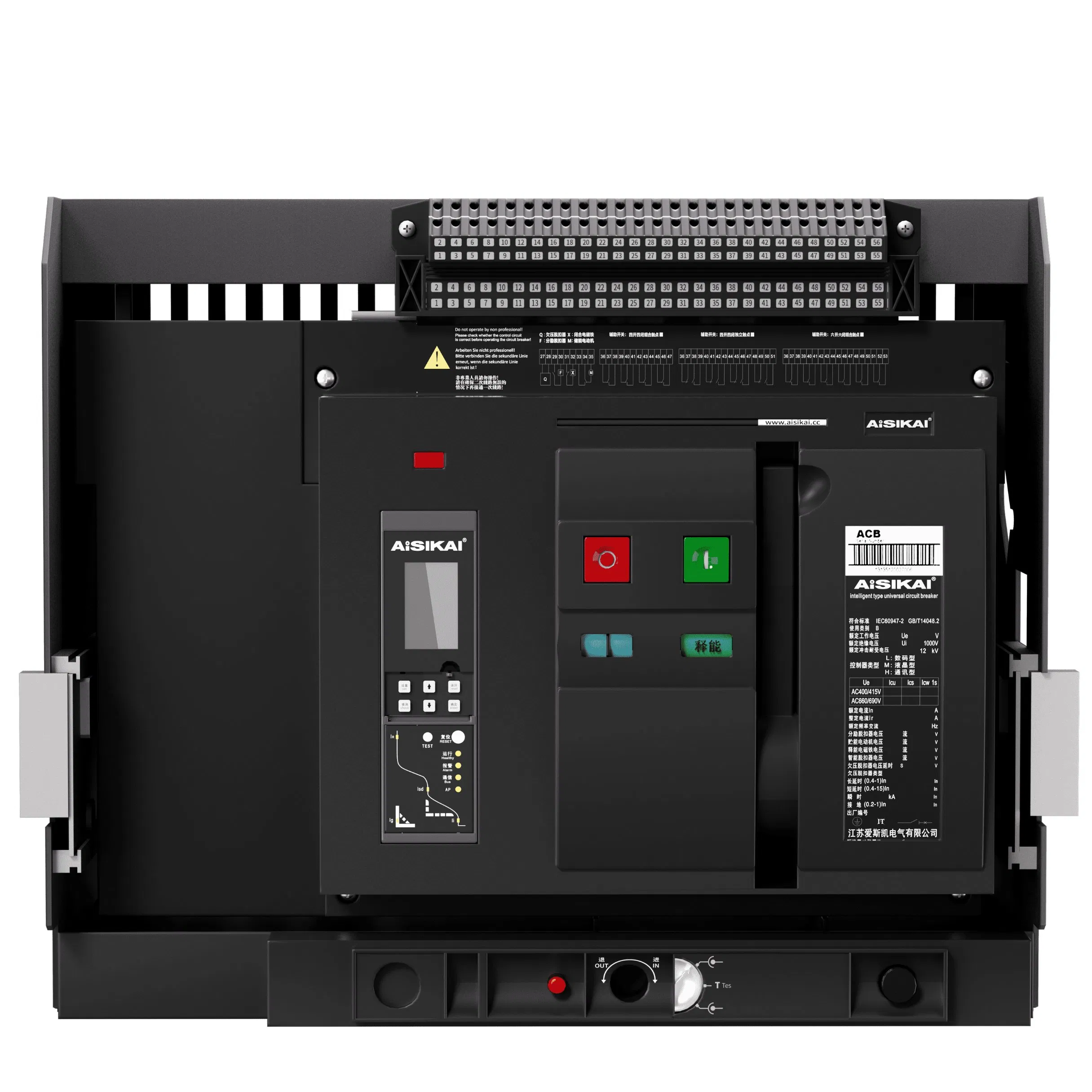

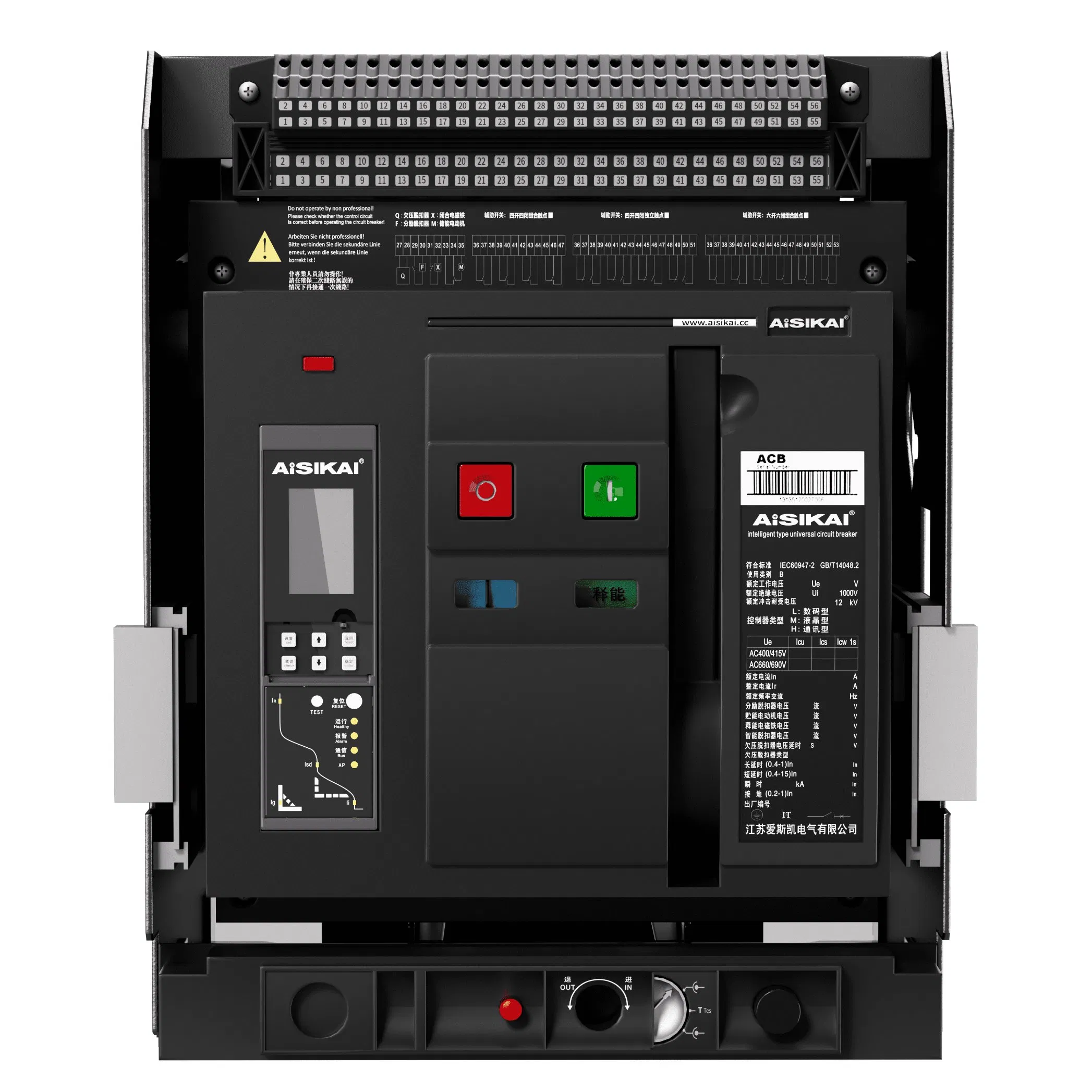

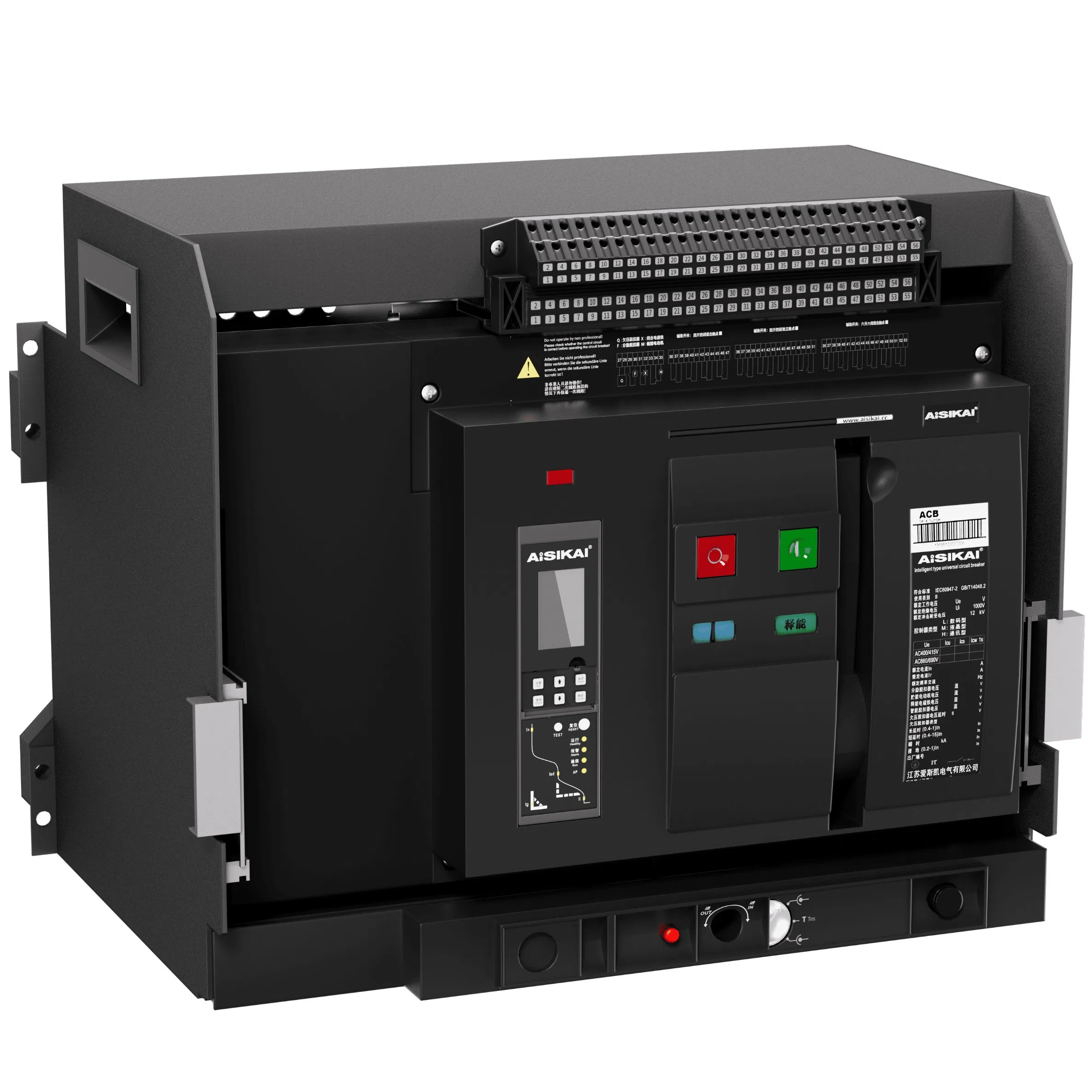

The Aisikai Universal Air Circuit Breaker series provides reliable protection for industrial power distribution systems with frame ratings from 2000A to 6300A. These breakers feature advanced protection mechanisms and multiple configuration options to meet various application requirements.
The intelligent controller options include LED display (L type), LCD screen with button adjustment (M type), and communication-capable LCD (H type). The breakers support both drawout and fixed installation methods, with optional accessories including under voltage trippers, mechanical interlocks, and DC power modules.
Technical specifications include rated operational currents from 630A to 6300A depending on frame size, with 50Hz/60Hz frequency compatibility. The breakers feature zero arc distance design and equal breaking capacity for both upper and lower inlets.
Certifications include China Compulsory Certification (CCC), CE, ISO9001 Quality Management System, ISO14001 Environment Management System, and ISO45001 Occupational Health Management System. The products have undergone strict quality control processes including individual product testing before shipment.
Available in 3P, 4P, and 3P+N configurations, these breakers are suitable for various industrial applications requiring reliable circuit protection. The modular design allows for customization with various optional accessories to meet specific system requirements.
