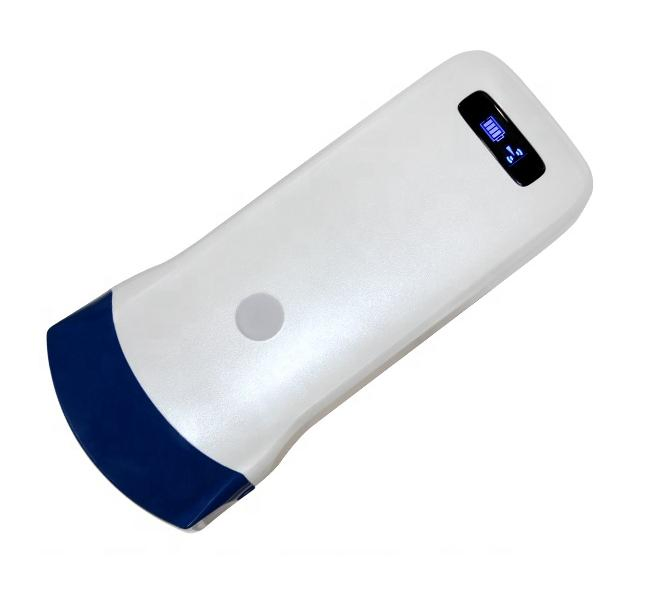

The L5C convex ultrasound probe is a professional medical imaging transducer designed for diagnostic applications. This high-performance probe features a 128-element convex array with dual frequency options of 3.5MHz and 5MHz, providing excellent imaging quality for various clinical examinations.
With a wide 50° scan angle and adjustable depth up to 305mm, this probe offers comprehensive scanning capabilities. The device supports multiple display modes including B-mode, B/M-mode, Color Doppler (B+Color), Power Doppler (B+PDI), and Pulsed Wave Doppler (B+PW), making it versatile for different diagnostic needs.
The probe features advanced image adjustment options including B-Gain, TGC, DYN, Focus, Depth control, Harmonic imaging, and Denoise functions. It supports both automatic and manual cineplay with adjustable frame storage (100/200/500/1000 frames) and maintains a stable image frame rate of 16 frames per second.
Measurement capabilities include length, area, angle, heart rate calculations, and specialized obstetrics measurements. Images can be saved in multiple formats including JPG, AVI, and DICOM for seamless integration with hospital information systems.

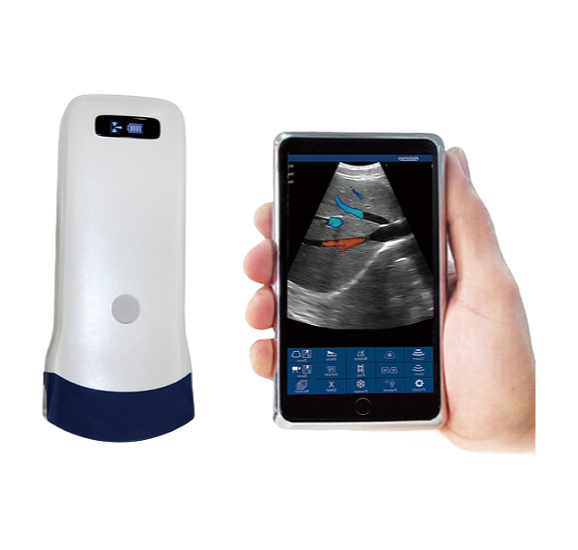

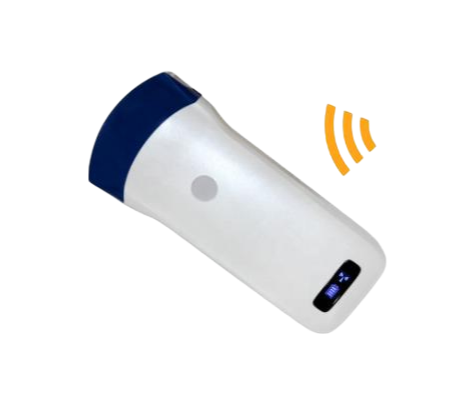

The wireless design features a built-in battery providing up to 3 hours of continuous scanning time, with convenient wireless charging that completes in approximately 2 hours. The probe is compatible with Apple iOS, Android, and Windows systems through 802.11g/20MHz/5G/450Mbps WiFi connection.
This convex ultrasound probe is particularly suitable for abdominal, obstetric, and urological examinations. The 45mm transducer head radius provides optimal contact surface for patient comfort while maintaining excellent imaging performance.
