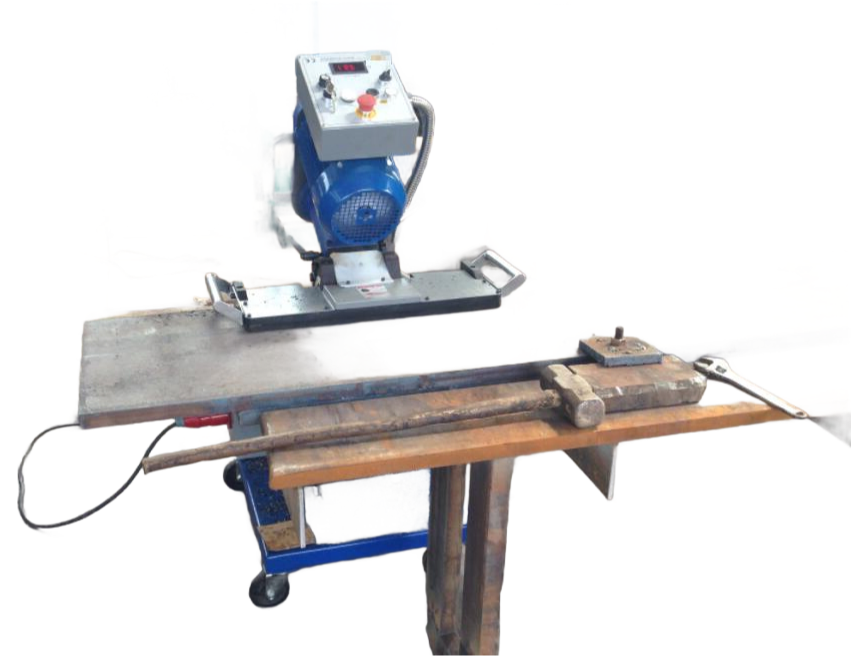

We've been running this vertical desktop beveler for about six months now in our fabrication shop, and it's pretty much replaced our old manual grinding setup for weld prep work on thick plate.
It handles plate form 6mm up to 60mm, with a bevel angle range from 0 to 60 degrees—the hydraulic height adjustment makes switching between materail thicknesses quick, usually within a minute or so. Most buyers go with this model for structrual steel or heavy equipment manufacturing where consistent bevel width matters.
The spindle runs at 1050r/min and uses six carbide inserts on a 63mm cutter head, which gives a cleaner edge than what you'd get with a handheld grinder anyway. Total power draw is 4520W on AC 380V 50Hz, and feed speed is variable from 0 to 1500mm/min depending on material condition.
Worktable height sits between 700 and 760mm with an 800×800mm surface, and the auto clamping works well for but you'll want to check the grip on thinner stock under 8mm or so. Not ideal for alumnum plate over 30mm unless you have the right carbide inserts, but for carbon steel it's been solid.
We usually have stock on these, typically 10-15 units, and lead time is about 20 days or so if we're out. It comes with a 1-year warranty and CE plus ISO certs, which our quailty team verified on the COA before accepting the first batch.
The net weight is 200kg, gross about 255kg, so you'll need a pallet jack or forklift to position it—something we learned the hard way when it arrived on a standard delivery truck.
We typically start at 1 unit for trial orders, and we can discuss volume discounts if you're looking at 5 or more machines.
Yes, the GMMA-60S is CE and ISO certified. We can provide copies of the certificates with your order or upon request.
Standard lead time is about 15-20 working days from order confirmation, depending on stock levels. We'll give you a precise timeline when you place the order.
No, the hydraulic system is designed specifically for plates between 6mm and 60mm. Going outside that range could damage the machine or affect bevel quality.
The net weight is 200kg, and it's packed in a wooden crate for export. The gross weight with packaging is 255kg, so make sure your handling equipment can manage that.
