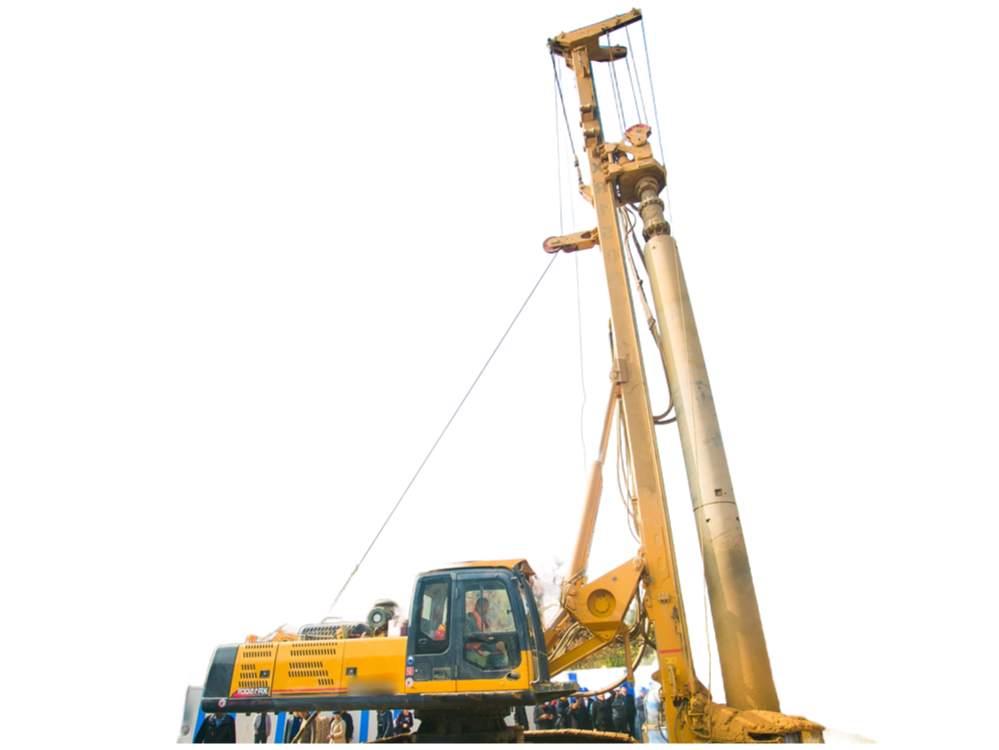

The XR150 Hydraulic Rotary Drilling Rig represents advanced engineering in foundation construction equipment. This robust machine combines power, precision, and durability for demanding drilling applications.
Engineered with a dedicated hydraulic retractable crawler chassis, the XR150 delivers exceptional stability during operation while maintaining transport convenience. The large diameter slewing bearing further enhances operational stability for precise drilling performance.
Powering this formidable machine is an electric control turbo-supercharged Volvo TAD1171VE engine, delivering 265kw of reliable power while meeting stringent Euro III emission standards. The intelligent hydraulic system incorporates threshold power control and negative flow control for optimal efficiency and energy conservation.
The innovative single rope winding system effectively minimizes steel wire rope wear, significantly extending service life. The integrated drill depth detection device in the main winding ensures precise depth measurement during operation.
Designed to meet CE directive requirements, the XR150 incorporates comprehensive safety features for secure construction operations. The machine's 22.7m working height and 82t working weight provide the necessary stability for heavy-duty drilling tasks.
With its 5000mm stroke crowd cylinder delivering 210kN crowded force and 220kN extraction force, the XR150 handles challenging ground conditions with ease. The hydraulic system operates at 34MPa maximum working pressure with a flow capacity of 2x280+90L for consistent performance.
