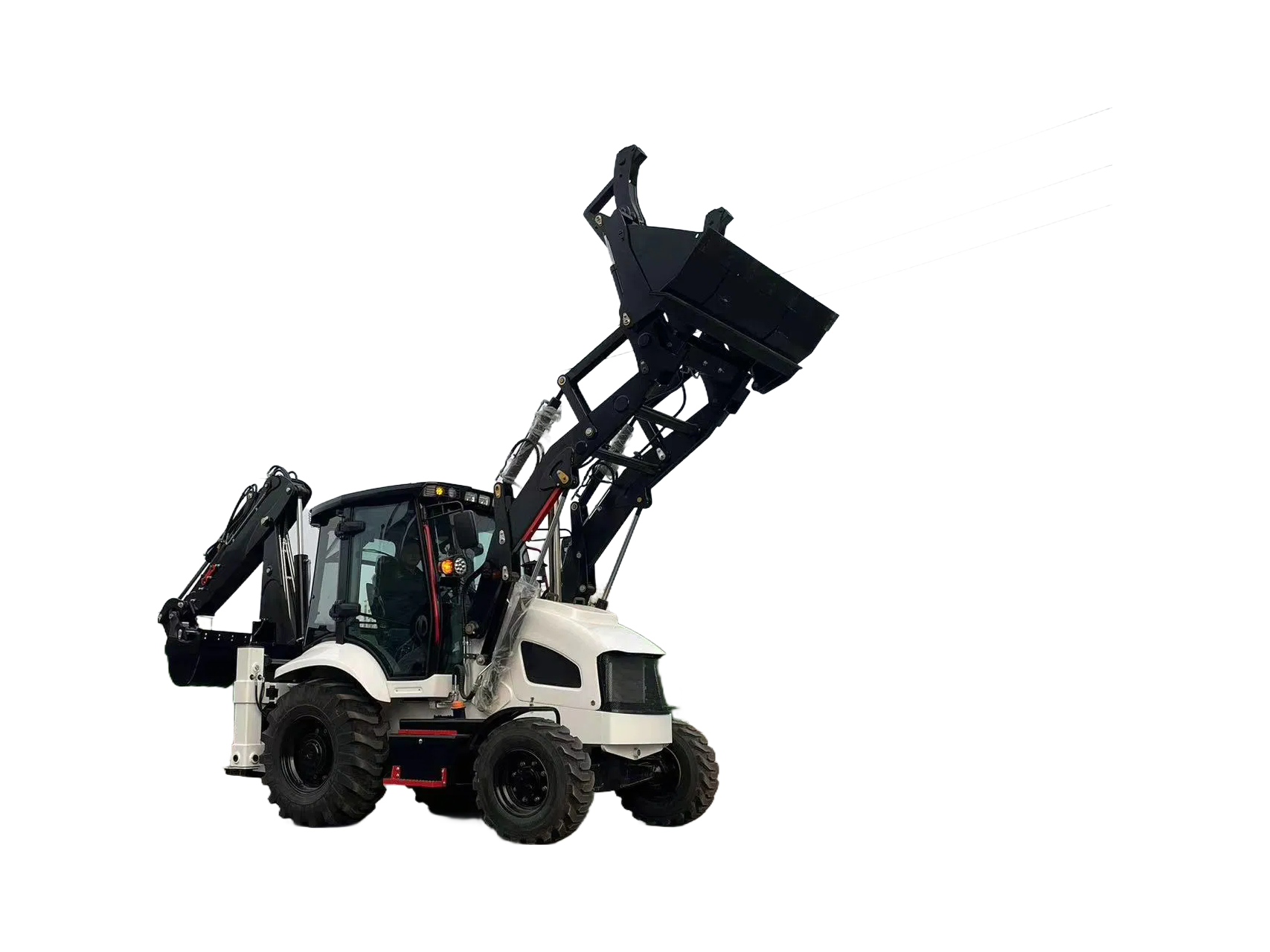

The HZM 788-F(XC MG) backhoe loader is a high-performance construction machine designed for demanding work environments. Featuring a Yuchai YC4A105Z-T20 engine with 75kw power output, this equipment delivers reliable performance for various construction and excavation tasks.

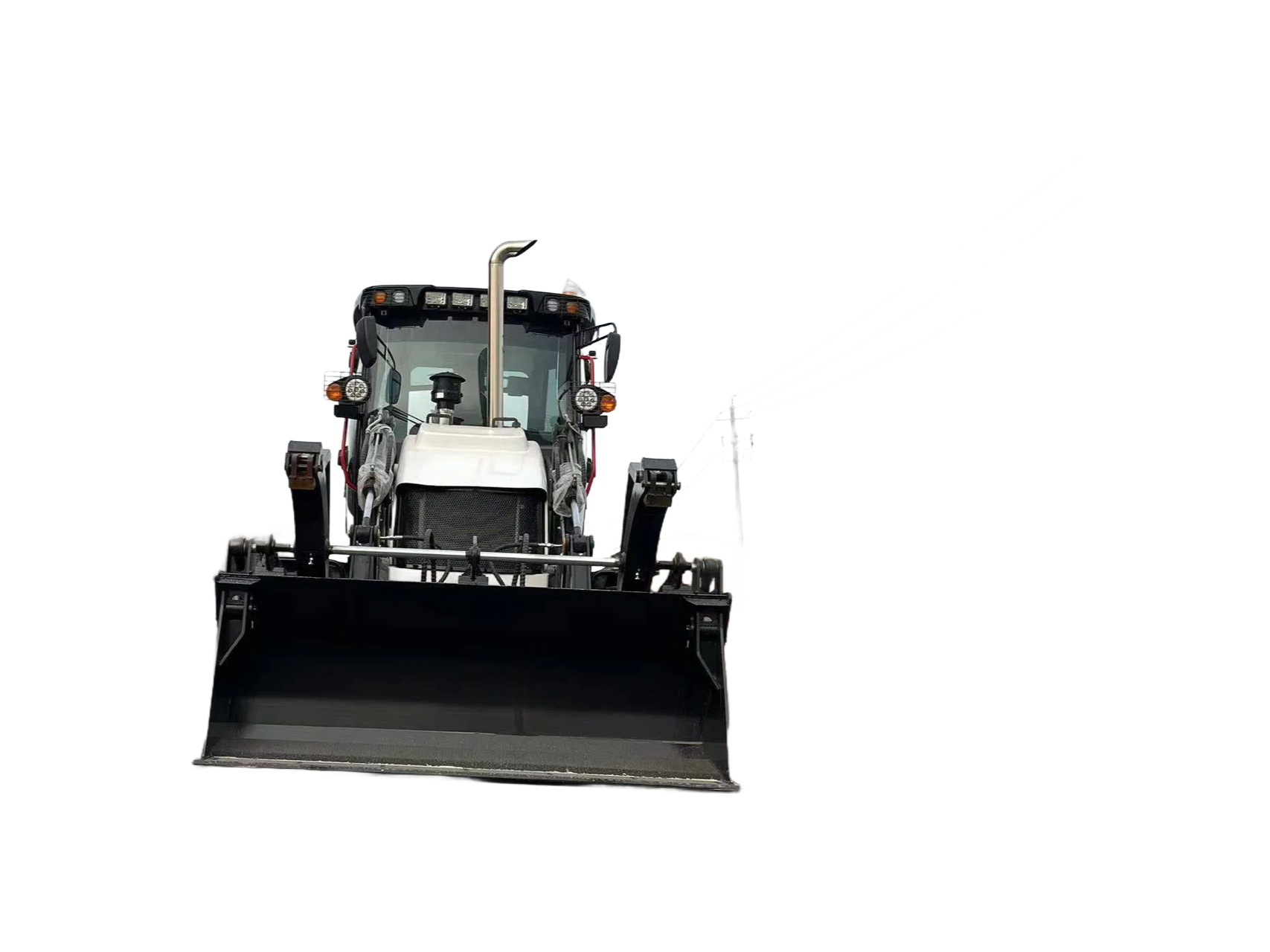

This model comes with a wet transmission axle (XC MG) that ensures smooth operation and durability. The hydraulic transmission system provides precise control, while the 1.2m³ bucket capacity handles substantial material loads efficiently.

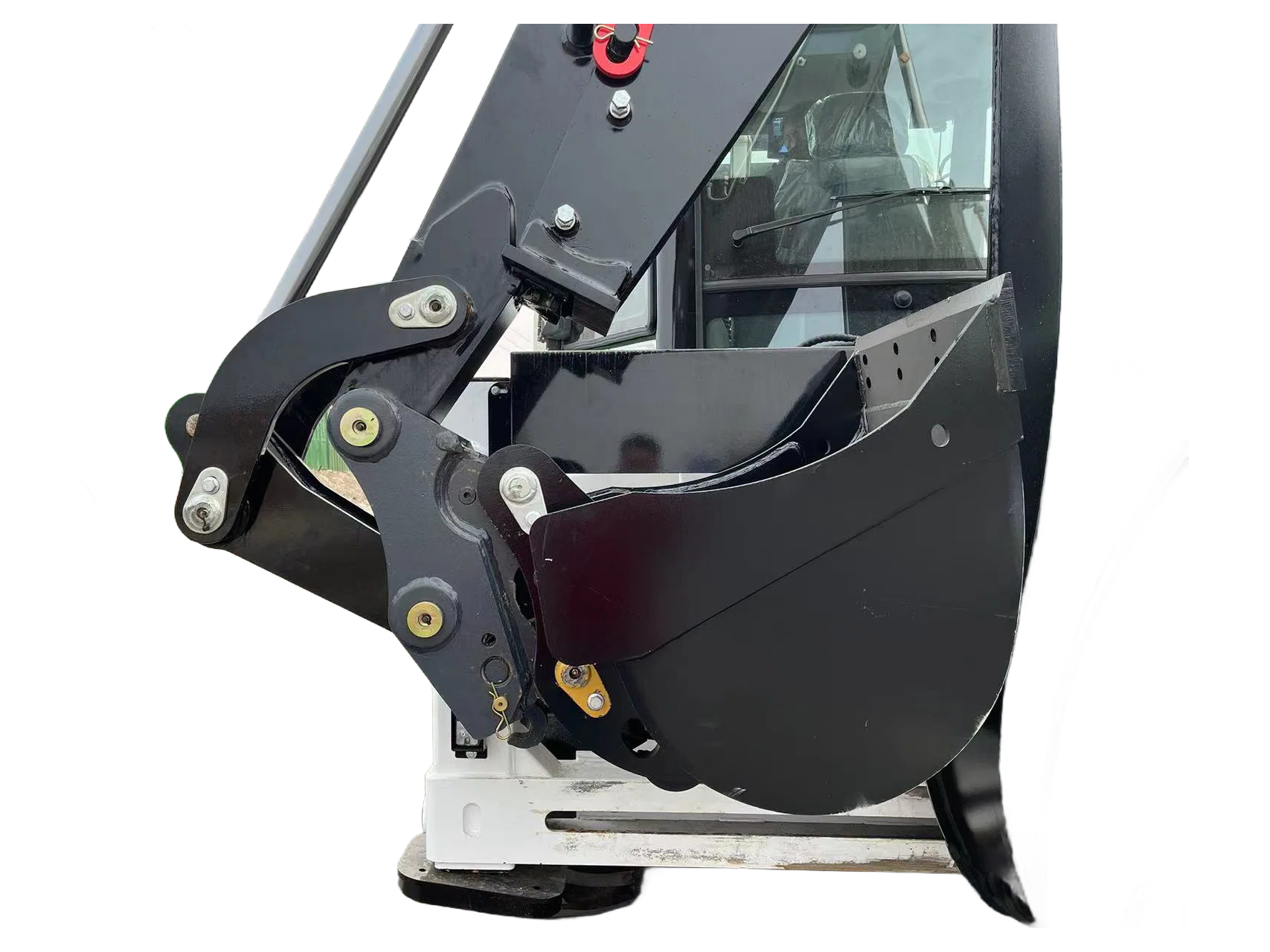

Key features include a maximum dump height of 3230mm, digging depth of 3620mm, and breakout force of 54KN. The backhoe offers 190° swing angle and 0.3m³ capacity for versatile excavation work.
The machine incorporates advanced safety features including rollover-proof cab with air conditioning and leg height sensors. The ergonomic design includes pilot handle integrated with seat for operator comfort during extended work periods.
With its 4.8L displacement engine rated at 2200r/min, the HZM 788-F delivers maximum torque of ≥410N.M while maintaining fuel efficiency (≤242g/km.h). The overall dimensions (6260×2500×3100mm) and 9950kg operating weight make it stable yet maneuverable.
Available in multiple colors including red, green, yellow, blue, black, white, and orange, this backhoe loader can be customized to meet specific requirements. The rational pipeline layout and proper use of materials prevent wear and enhance durability.
