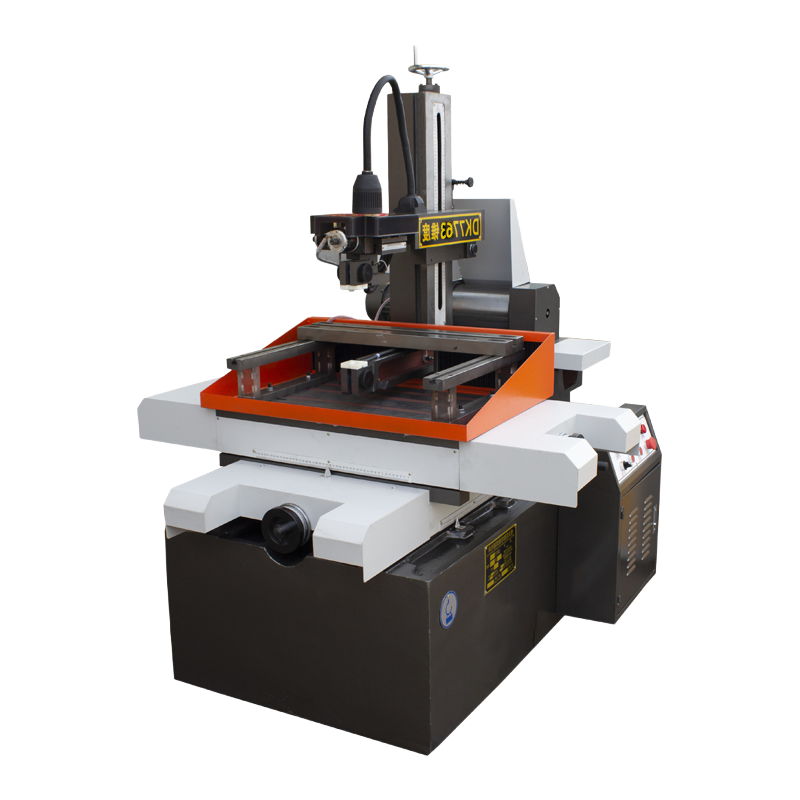

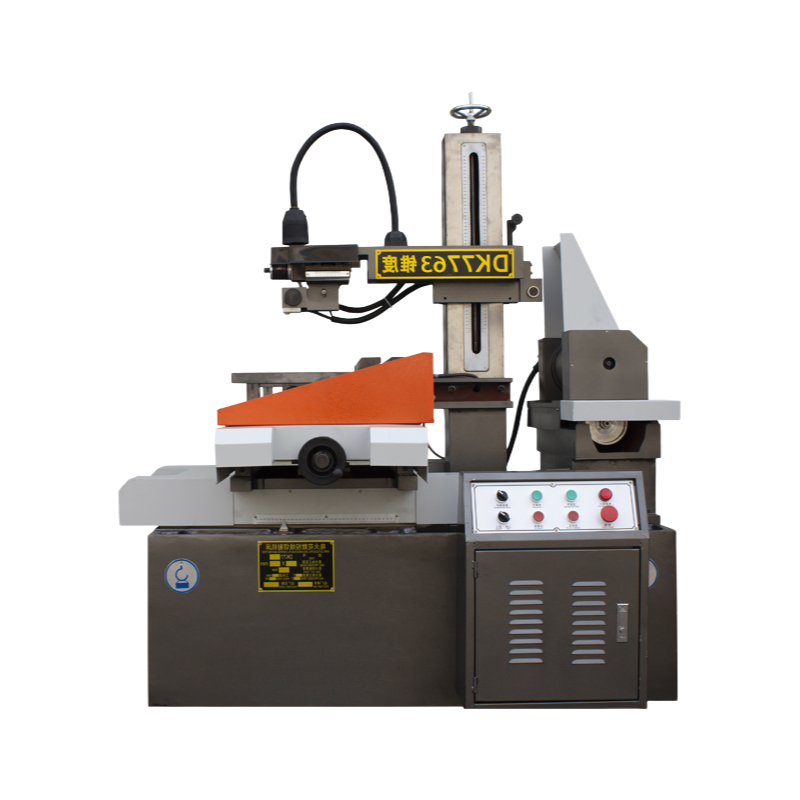

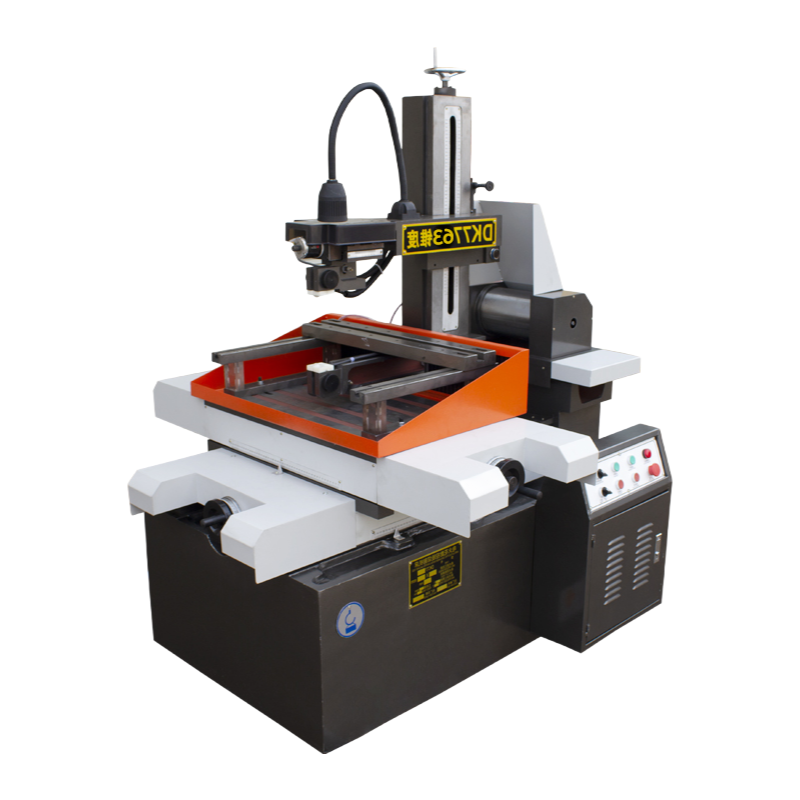

The DK7725 CNC molybdenum wire cut EDM machine is designed for high precision metal cutting applications. With its advanced spark working technology, this machine delivers exceptional accuracy and surface finish for various industrial needs.
This automatic wire cut machine features a worktable travel of 250*320 mm and worktable size of 520*460 mm, making it suitable for medium-sized workpieces. The Z-axis travel of 500 mm provides sufficient clearance for various cutting requirements.
Key technical specifications include a maximum cutting speed of 120 mm²/min, accuracy of ≤0.02 mm, and best surface roughness of Ra2.5 μm. The machine supports a maximum taper of ±6°/80mm and can handle loads up to 500 kg.

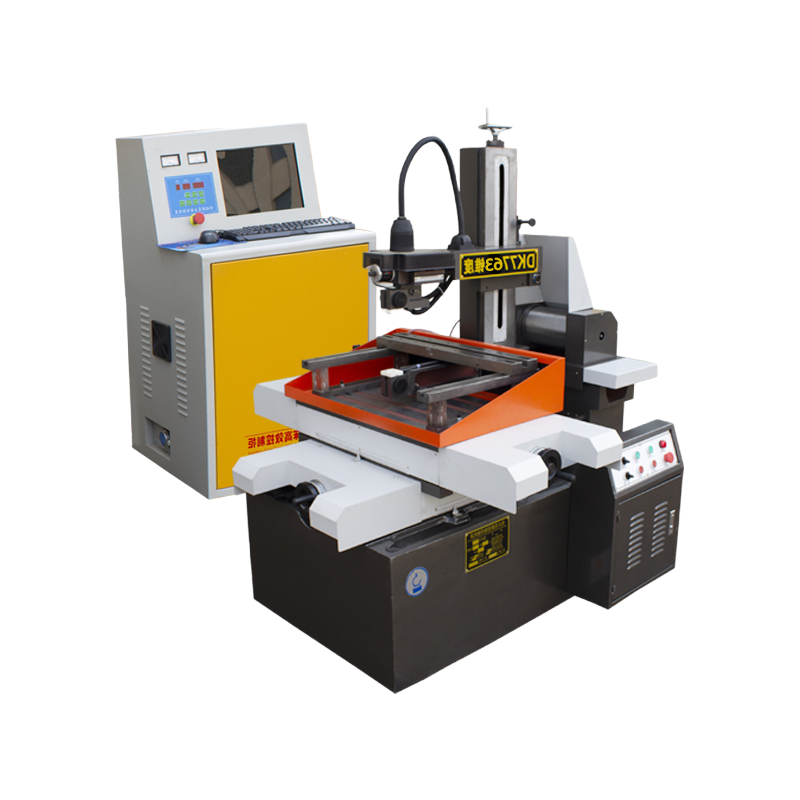

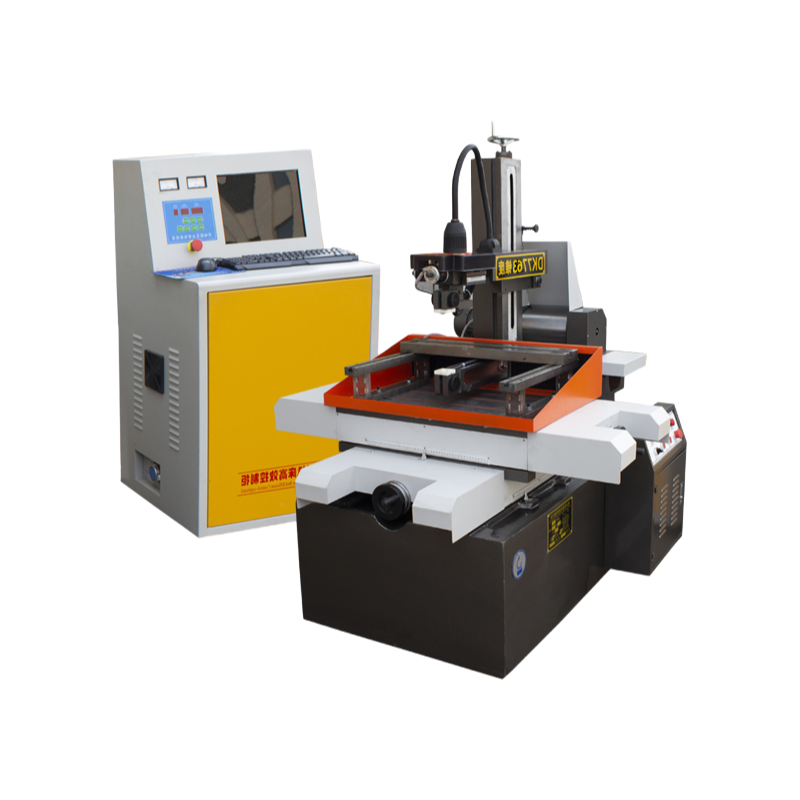

The intelligent control system offers two configuration options: semi-intelligent and fully intelligent control cabinets. The semi-intelligent version provides cost-effective performance with multi-cut function improving finish to Ra1.2-1.5μm, while the fully intelligent version features built-in expert database for superior finish of Ra0.8-1.2μm.
With dimensions of 1450*900*1500 mm and weight of 1000 kg, the DK7725 maintains a compact footprint while delivering robust performance. The machine operates on 220V or 380V power supply and consumes 1.5 kW during operation.
Certified with CE, ISO 9001, and SGS standards, this EDM wire cut machine comes with a 2-year warranty and permanent technical support. It finds applications across multiple industries including metallurgy, electrical components, aviation, and light industry.
