High Precision LCD Touch Screen Carton Box Compression Test Machine for Packaging Quality Control

We're looking at roughly 2-4 weeks lead time on the HD-A502S-1200, and unit itself weighs somewhere in the 500-1000kg range depending on options — it's a solid piece of gear, 2000×1200×2030mm overall, so make sure your floor can handle it.

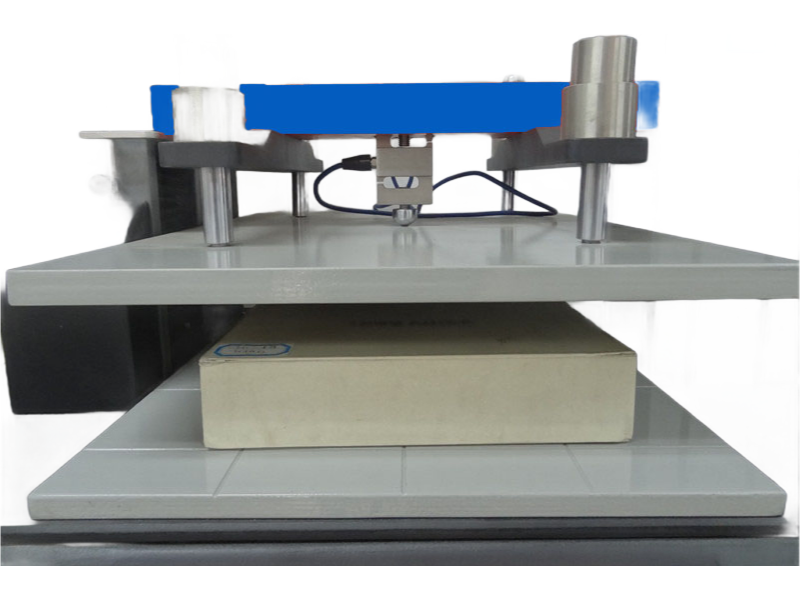

Basically, it's a compression test machine for boxes and cartons, and most buyers go with the 2000kg capacity since that covers corrugated cartons and beverage boxes pretty well, though the accuracy is ±0.25% with a load cell resolution of 1/250,000, which is better than some older models we've seen.

Test speed is adjustable form 0.01 to 200mm/min, but the standard setting is 10±3mm/min, and you can switch display units between kgf, Ibf, N, KN, or T on the Windows 7 control system with RS-232 interface — it's not suited for very small containers like cosmetic tubes, though, as the effective test area is 1000×1200×1000mm.

The Panasonic servo motor and DC variable speed drive keep operation smooth, and safety features include an E-stop, over-load protection, and limit switches, so you don't have to worry about runaway tests, but we usually have stock on the standard model — confirm lead time if you need a custom speed range.

Also, it meet TAPPI-T804, JIS-20212, GB4857.3.4, and ASTM-D642 standard, which is handy for qualiy control audits, and one thing buyers don't always ask is that the load cell resolution of 1/250,000 gives you tighter tolerance than most basic units for this price point.

Anyway, the MOQ is one unit, and we include a COA with each machine, but the power requirment is AC220V, 50Hz, so check your facility's setup before ordering — the 20KN capacity or 10KN depending on your batch is usually enough for corrugated cartons.
