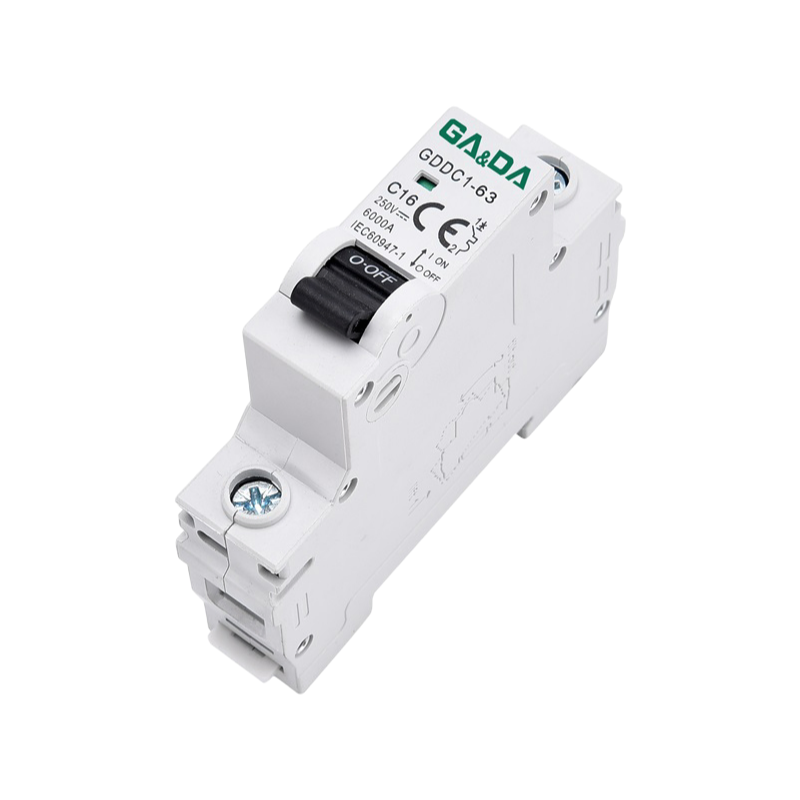

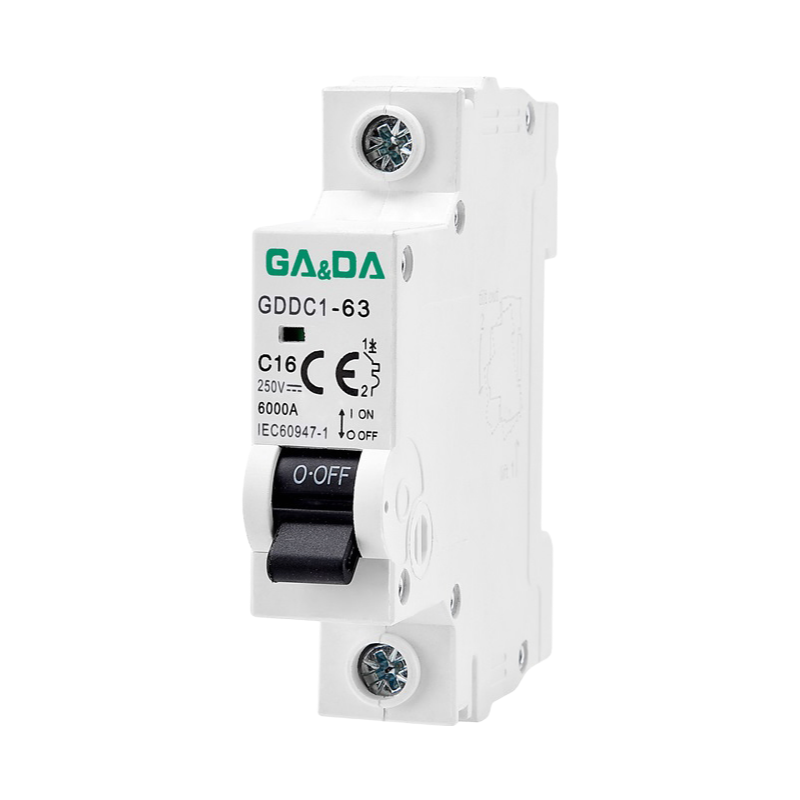

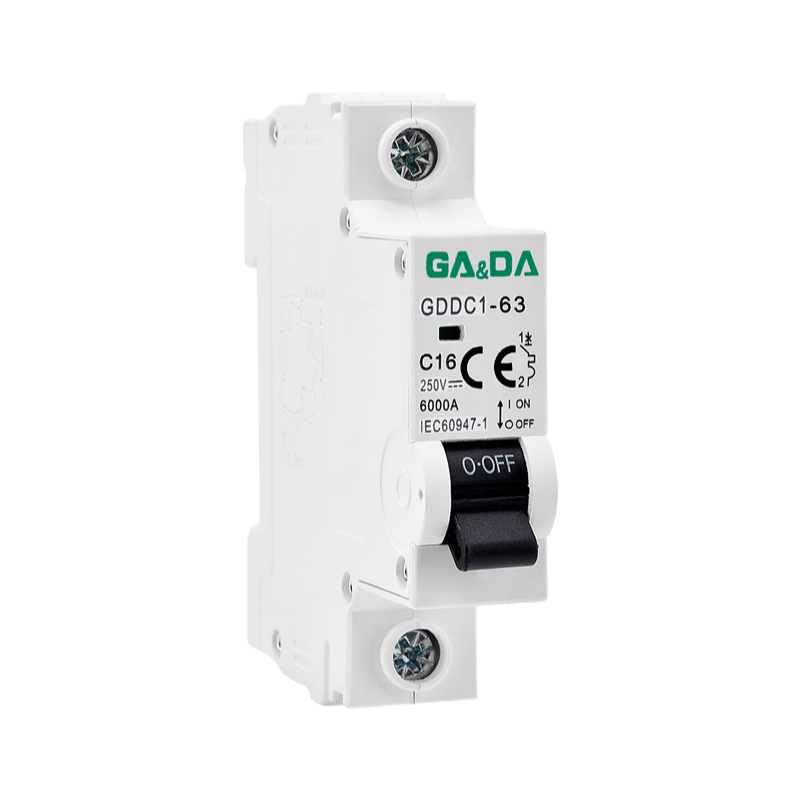

So what you're actually getting here is a single-pole 16A breaker that trips on both overload and short circuit—pretty much standard workhorse for most branch circuits, and we've shipped thousands of these across residential jobs and light commercial panels without issues.
Rated votage is 230V AC with a 6kA breaking capacty, though the model number shows 4.5kA on some older datasheets (we usually have stock, but confirm lead time for the 6kA variant) and the air arc-quenching does what it needs to for this size—better than some sealed units we've seen that fail on repetitive spikes.
At 18 by 74 by 82 mm it fits DIN rails fine, and the IP20 rating means it's for indoor enclosures only, not wet locations or external distribution boards—most buyers go with this one for lighting circuits and small motor protection where you don't need a full 10kA interrupting rating.
our company can do 50-100 units on a standdard lead of about 25 working days or so, basically whatever MOQ you're comfortable with, and the price includes standard CE and RoHS docs plus a COA for the batch if you request it when placing the order.
One thing that caught a few buyers out is the 1P design doesn't provide overvoltage protection in the way some assume—it's just overload and short circuit, so if you're protecting sensitive electronics you'll want an additional SPD upstream rather than expecting this unit to do everything.
We can start with as low as 100 pieces for this model, but if you need less, just let us know and we'll see what we can do.
We usually keep stock for this MCB. Lead time is around 7-15 days depending on your location and shipping method.
Yes, we include copies of ISO9001, CE, CB, and RoHS certificates with every order. Just request them in your order notes.
The 6000A breaking capacity works well for both residential and light commercial setups. It's enough for typical household circuits and small shops.
Keep them in their original packaging in a dry, clean place away from moisture and extreme temperatures. IP20 means they're not waterproof, so avoid wet areas.
