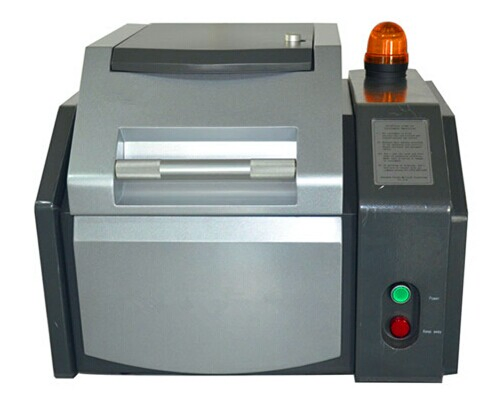

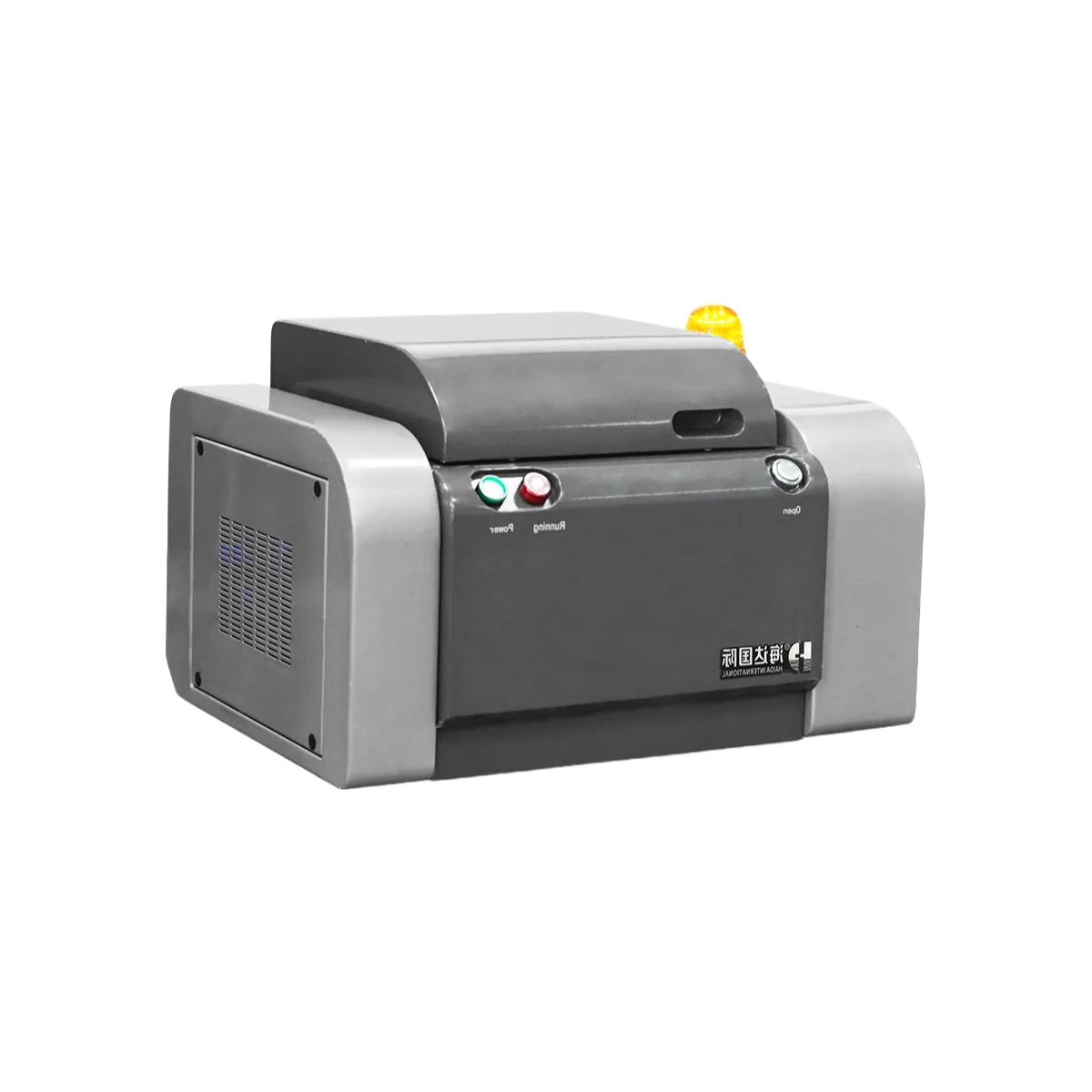

The XRF Analyzer is a professional testing equipment designed for RoHS compliance and metal analysis. With its advanced V8.0 analysis software combining empirical coefficient method and fundamental parameter method, it delivers precise measurement results for various elements from Na to U.
This analyzer features a triple radiation protection system (software, hardware, and labyrinth design) to ensure operator safety. The optimized optical path design minimizes air path effects, particularly for Cl element measurement, ensuring stable results. The equipment automatically adjusts X-ray tube power based on sample characteristics, extending tube life while maximizing detection precision.
Key applications include RoHS directive control for household appliances, IT equipment, electric tools, and toys, as well as halogen-free directive control for products using flame retardants containing Cl or Br. The spectrum comparison function enables real-time material change tracking and timely warnings.
The system incorporates advanced spectrum processing methods including FFT, precise background deduction, automatic peak search, and Quasi-Newton optimization. It supports multiple report formats including Excel and PDF for convenient data analysis and documentation.
With its high-resolution 1.3MP HD CCD camera, operators can clearly observe the measuring area in real-time and capture images for test reports. The external fine-tuning test platform ensures accurate sample positioning for reliable results.
