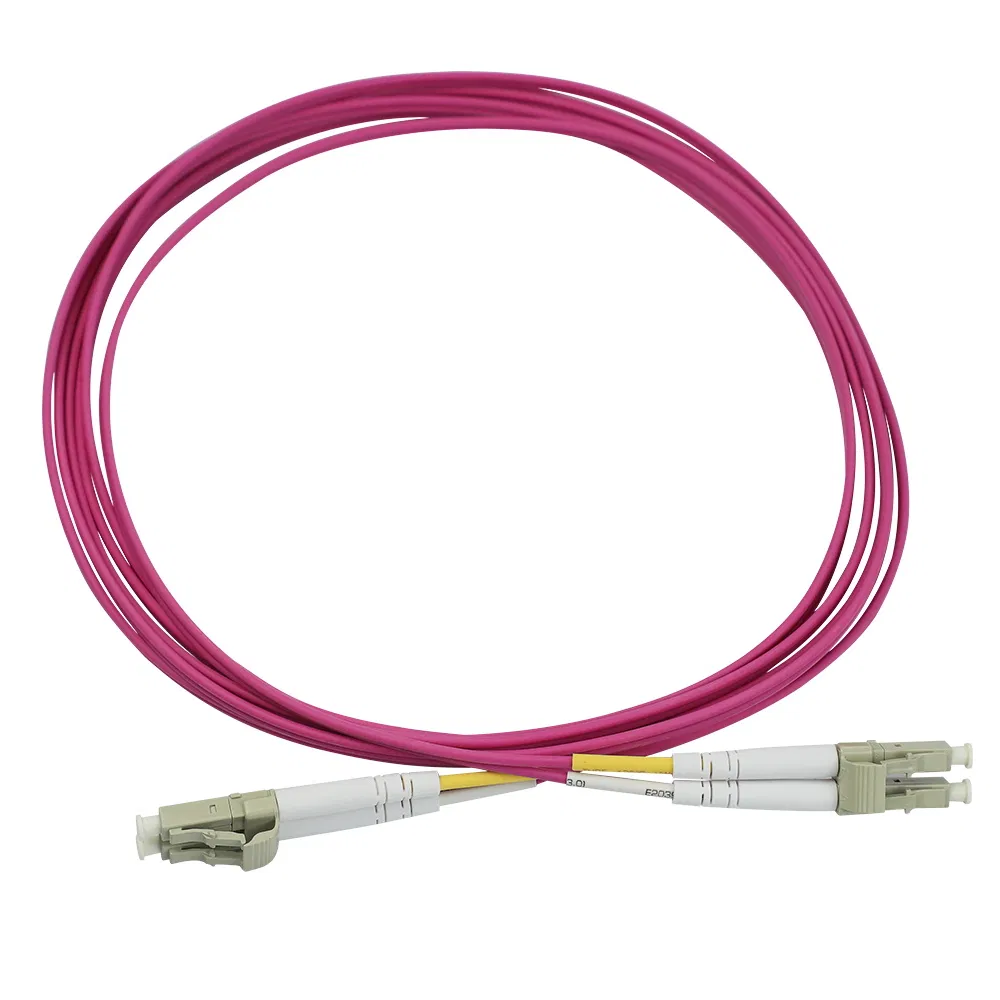

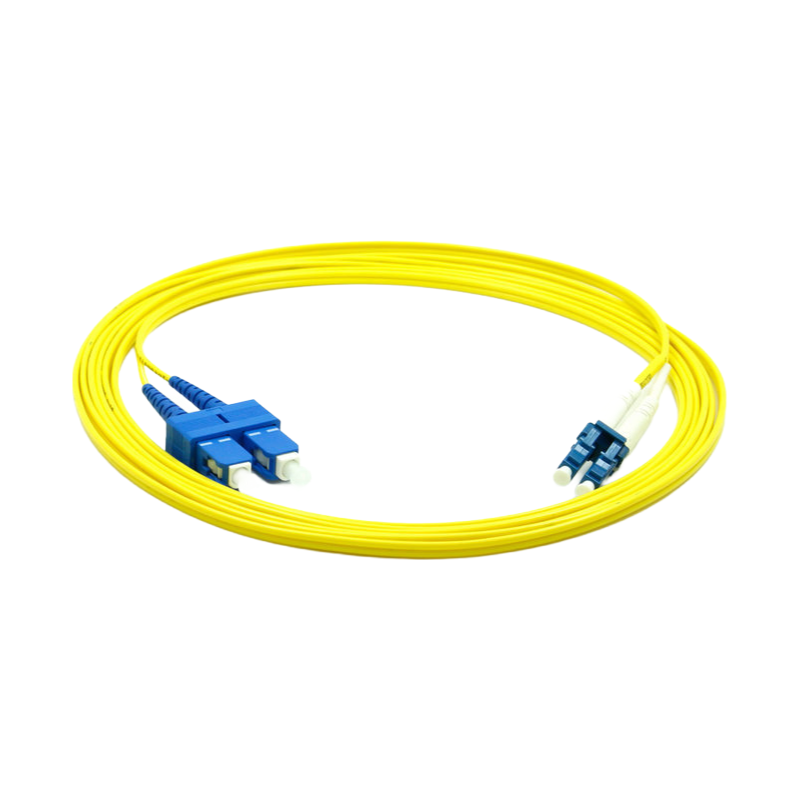

We've got stock on these in single-mode and both multimode variants right now, and the stockroom says lead time is typically 3-5 business days on standdard orders — but if you need LC-LC duplex OM4 with LSZH jacket and 3.0mm cable diameter specifically, I'd confirm because that combo moves fast and we usually have about 50 units or so on hand for quick ship.
What makes them worth buying is basically the ≤0.2dB insertion loss on single-mode and ≤0.25dB on multimode, which is tighter than most generic patch cords we've tested, and the return loss hits ≥50dB for PC and ≥60dB for APC connectors — that's good for CATV or data network work where back reflection matters. RoHS and CE certs are in the bag, so no compliance headache.
The 1000 mating cycle durability rating is a solid number — I've had some cheaper jumpers degrade after 400 cycles or so, and these hold within 0.2dB typical change according to COA we pulled. Also, temperture range form -40°C to +85°C means you can run them in outdoor cabinets or unheated closets without worrying about signal drift.
One thing I'd mention — don't use these for high-power laser application or anything where bend-insensitivity is critical; the standard 50/125μm OM4 will work fine, but the 9/125μm single-mode version might be better for long-haul telecom runs (check your link length specs). Anyway, the LSZH jacketing is a plus for plenum-rated spaces, though I'd still double-check local fire codes.
They follow Telcordia GR-326-CORE, which most buyers don't ask about but matters when you need consistent performance across a big install, and teh tensile strength >70N gives you a bit of margin when pulling through tight conduit. So I ordered a mix of 2m and 5m lengths for testing — we'll see how they stand up to daily patching.
Our MOQ for custom-length jumpers is 100 pieces. For standard stock lengths we can accommodate smaller orders, just check with us.
Yes, we include individual test reports for insertion loss and return loss with each batch. We can also share third-party test data upon request.
We offer three options: 0.9mm, 2.0mm, and 3.0mm cable diameter. The 0.9mm is great for tight patch panels, while 2.0mm works well for general patching.
For 500 pieces, lead time is usually 7-10 working days. If you need them faster, we can rush the order with a small surcharge.
Yes, they meet Telcordia GR-326-CORE standards, including 1000 mating cycles and stable insertion loss. We also have RoHS, CE, and ISO9001 certifications.
