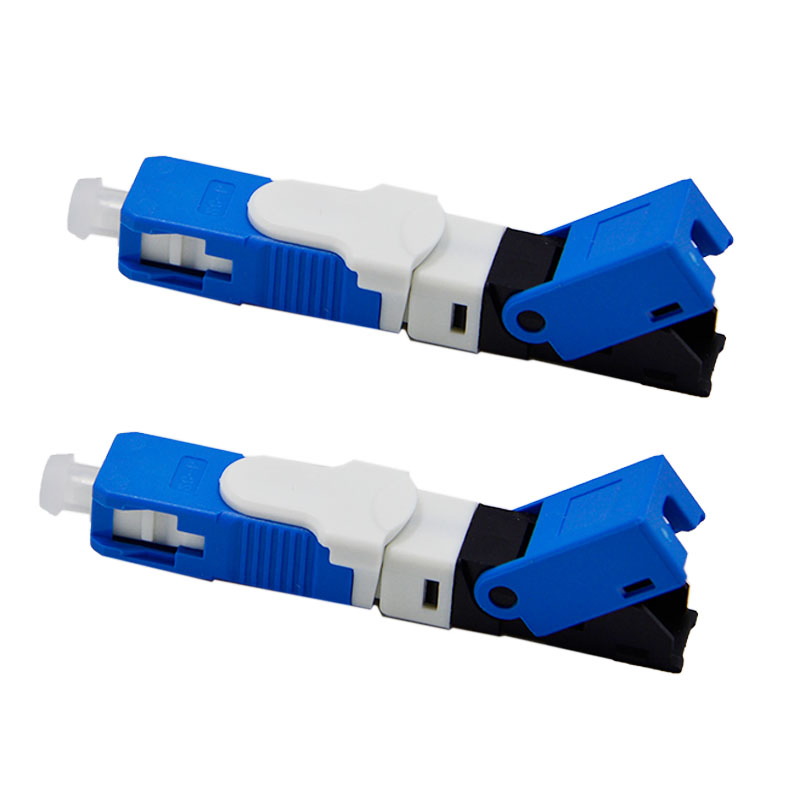

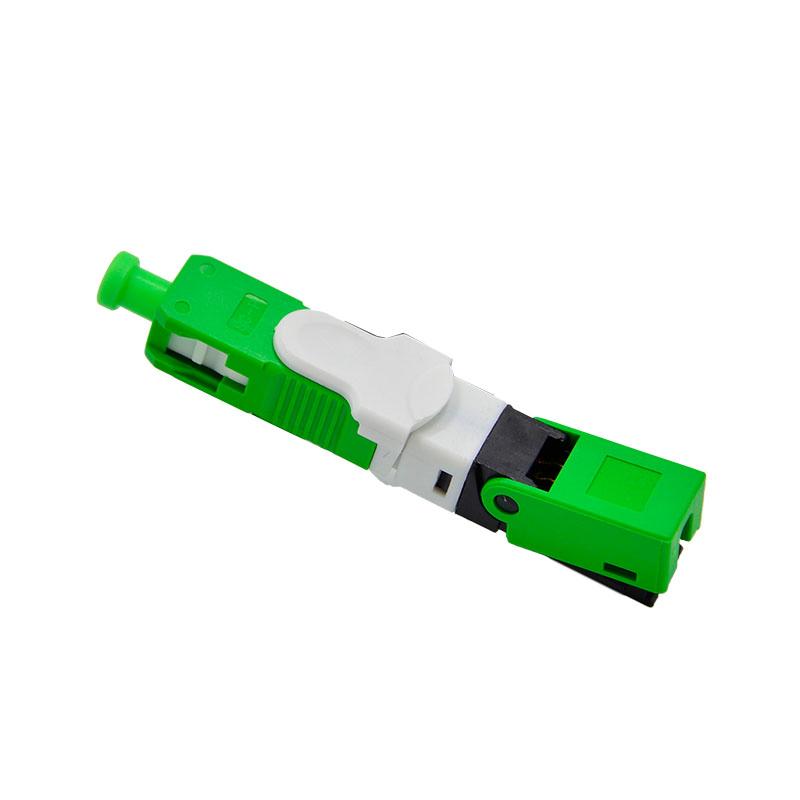

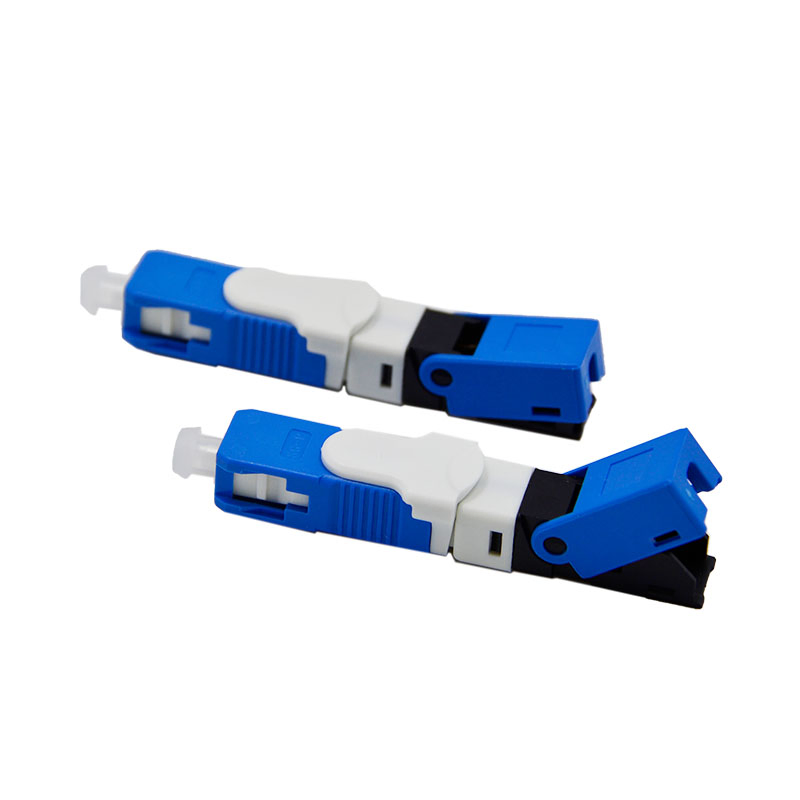

The SC/APC fiber optic connector is designed for high-performance optical communication systems. Featuring a precision 1.25mm ferrule and snap-on coupling mechanism, this connector enables reliable connections in high-density installations.
Key technical specifications include superior polishing quality with insertion loss ≤0.2dB (APC) and return loss ≥60dB (APC). The connector supports both single mode (9/125) and multimode (50/125 or 62.5/125) fiber types, making it versatile for various network requirements.
Available in multiple cable diameters (φ0.9mm, φ2.0mm, φ3.0mm), the SC/APC connector supports various installation scenarios. Its modularized jack door lock mechanism ensures secure connections while maintaining compliance with ANSI, EIA/TIA, IEC, and Telcordia standards.
The connector's durable PC material construction and precision engineering make it suitable for demanding applications including telecommunications networks, CATV systems, LAN/WAN installations, and data processing networks. The snap-on design simplifies installation while eliminating the need for epoxy and polishing.
With certifications including ISO9001 and RoHS compliance, our SC/APC connectors meet the highest industry standards for quality and environmental safety. Custom configurations are available for bulk orders, including special cable types or connector combinations.
