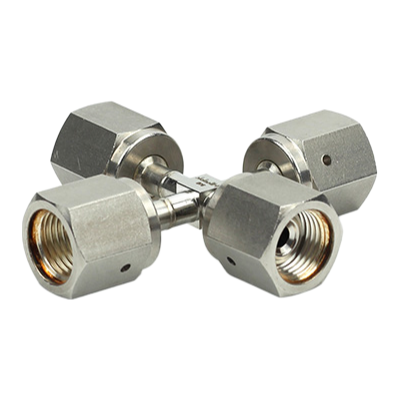

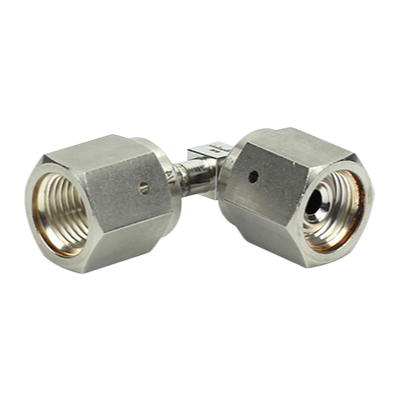

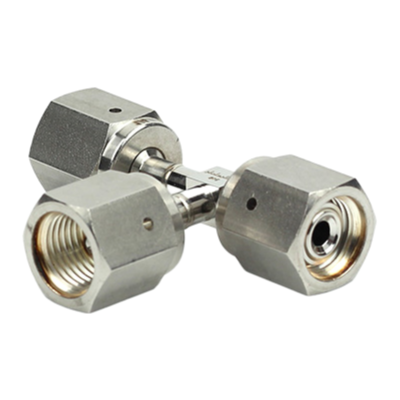

ANSI/ASME B31.3 Certified VCR Welded Union Fittings for Vacuum to High Pressure Applications ANSI/ASME B31.3 Certified VCR Welded Union Fittings for Vacuum to High Pressure Applications
ANSI/ASME B31.3 Certified VCR Welded Union Fittings for Vacuum to High Pressure Applications ANSI/ASME B31.3 Certified VCR Welded Union Fittings for Vacuum to High Pressure Applications
ANSI/ASME B31.3 Certified VCR Welded Union Fittings for Vacuum to High Pressure Applications ANSI/ASME B31.3 Certified VCR Welded Union Fittings for Vacuum to High Pressure Applications
ANSI/ASME B31.3 Certified VCR Welded Union Fittings for Vacuum to High Pressure Applications ANSI/ASME B31.3 Certified VCR Welded Union Fittings for Vacuum to High Pressure Applications
ANSI/ASME B31.3 Certified VCR Welded Union Fittings for Vacuum to High Pressure Applications ANSI/ASME B31.3 Certified VCR Welded Union Fittings for Vacuum to High Pressure Applications
ANSI/ASME B31.3 Certified VCR Welded Union Fittings for Vacuum to High Pressure Applications ANSI/ASME B31.3 Certified VCR Welded Union Fittings for Vacuum to High Pressure Applications

ANSI/ASME B31.3 Certified VCR Welded Union Fittings for Vacuum to High Pressure Applications

US$ 6.00 ~ 60.00
Min.Order: 1
Product origin: Chengdu, Sichuan, China
Category: Tools
Product Name: Tools
Availability:In Stock
Product Review : 92 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : WU Series
  • Standards : ANSI/ASME B31.3, B31.1, GB
  • Material Options : 316, 316L, 316L VAR Stainless Steel
  • Connection Type : Welded Union
  • Surface Finish : 10μin. (0.25μm) Ra
  • Head Design : Hexagon
  • Size Range : 1/16" to 1"
  • Pressure Standard : ANSI/ASME B31.3 Compliant
  • Temperature Range : -425°F to 1000°F (-254°C to 538°C)
  • Gasket Materials : 316L SS, Copper, Nickel
  • Certifications : Ultrahigh Purity Clean Room Manufactured
  • Minimum Order : 1 Piece
  • Customization : OEM Services Available

Our VCR metal gasket face seal fittings feature an advanced metal-to-metal sealing technology that ensures perfect leak-tight performance across a wide range of applications, from critical vacuum systems to high pressure environments. These precision-engineered fittings are designed for reliability in demanding industrial conditions.

The female threads are silver plated to prevent galling during installation and maintenance, while the smooth internal diameter transition minimizes potential entrapment areas that could compromise system integrity. Each fitting comes with two test ports for convenient leak testing procedures.

VCR metal gasket face seal fitting

Manufactured with exacting standards, these fittings feature a surface finish with a roughness average of 10μin. (0.25μm) Ra on both glands and bodies. Available in three premium stainless steel material options: 316, 316L, and 316L VAR (Vacuum Arc Remelt) to meet various application requirements.

Stainless steel VCR fitting cross-section

The pressure ratings are calculated in strict accordance with ANSI/ASME B31.3 standards, with working pressure for ANSI/ASME B31.1 applications determined by multiplying the base rating by 0.94. This ensures compliance with industry safety standards across different operating conditions.

Temperature performance varies by component material, with 316 stainless steel fittings rated for operation from -425°F to 1000°F (-254°C to 538°C). Gasket materials include 316L stainless steel, copper (rated to 400°F/204°C), and nickel (rated to 600°F/316°C) to accommodate different thermal requirements.

VCR fitting temperature rating chart
