Large Volume Steam Sterilization Equipment with Dynamic Pulse Exhaust and Drying Function

US$ 1199.00 ~ 1899.00
Min.Order: 1
Product origin: Jinan, Shandong, China
Category: Medical Equipment
Product Name: Medical Equipment
Availability:In Stock
Product Review : 10 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model : BKQ-B50II, BKQ-B75II, BKQ-B100II, BKQ-B120BII, BKQ-B150(II), BKQ-B200(II)
  • Capacity : 50L, 75L, 100L, 120L, 150L, 200L
  • Chamber Size (mm) : φ386*514, φ386*694, φ386*874, φ386*1054, φ500*760, φ500*1000
  • Chamber Material : S30408 stainless steel
  • Designed Pressure : 0.28MPa, 0.217MPa
  • Designed Temperature : 134°C, 138°C
  • Working Pressure : 0.23MPa, 0.217MPa
  • Working Temperature : 105~136°C, 50~134°C
  • Temperature Display Accuracy : 0.1°C
  • Timing Range : 0~999 minutes, 0~99 hours
  • Dynamic Pulse Exhaust Temperature : 105~136°C
  • Dissolution Temperature Range : 60~100°C (programmable)
  • Temperature Holding Range : 45~60°C (programmable), 50~100°C (programmable)
  • Power Consumption : 4.4KW, 4.7KW, 5.2KW, 6KW
  • Power Supply : AC110/220V±10%, 50/60Hz; 380V, 50Hz; 200V, 50/60Hz
  • Stainless Steel Basket : 1 piece, 2 pieces, 3 pieces, 4 pieces
  • External Size (W*D*H) mm : 640*550*970, 640*550*1070, 640*550*1270, 640*550*1370, 650*650*1400, 650*650*1700
  • Gross Weight (kg) : 102, 112, 125, 140, 213, 238

We saw your inquiry about large-volume sterilization equipement and pulled the specs on the BKQ series — the 200L model is our workhorse for bigger loads, chamber runs φ500*1000mm in S30408 stainlss, and the pulse exhaust lets you cycle 0 to 9 times at 105-136°C depending on your load density.

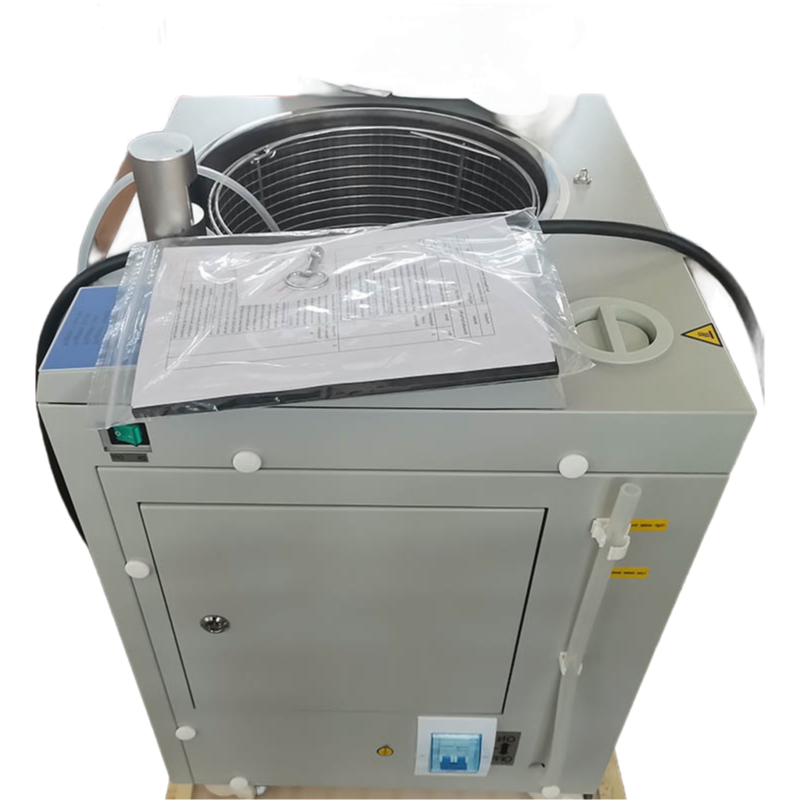

Pressure Steam Sterilizer Autoclave

Actually, most buyers with mixed media go for the 150L or 120L units because the pulse exhaust helps with air removal in dense packs, and you can program the dissolution temperature from 60-100°C if you're dealing with liquids that need slow heating first — the holding range is programmable too, 45-60°C or 50-100°C.

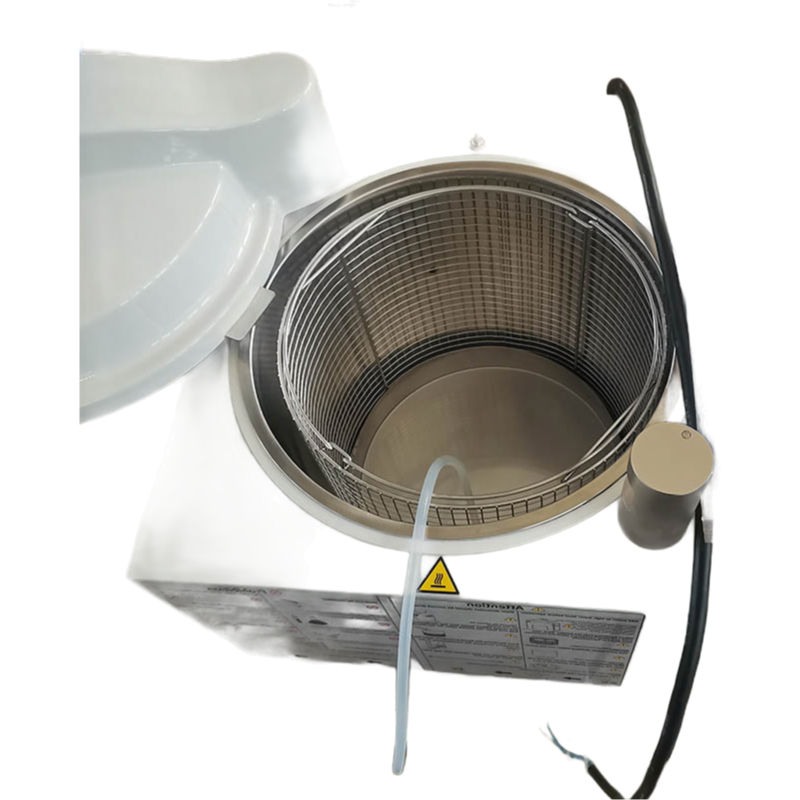

Autoclave Internal View

The working pressure hits 0.23MPa on bigger models, and the temperture display accuracy is 0.1°C, which matters more for validation than daily use honestly — we usually have stock on the 100L, 120L, and 150L, but the 200L is typically a 4-6 week lead time.

One thing people don't always ask about is the drying function — it's not just a post-cycle dry, it actually pulls a vacuum and holds temperature to get wrapped items dry enough to store immidiately, though it adds about 20 minutes or so to the total cycle for a full 200L load.

Sterilizer Control Panel

Power consumption varies from 4.4KW on the 50L up to 6KW on the 200L, and the supply options are AC110/220V±10% or 380V depending on your facility — just confirm which voltage you'd need because the 380V models have a different heating element configuration.

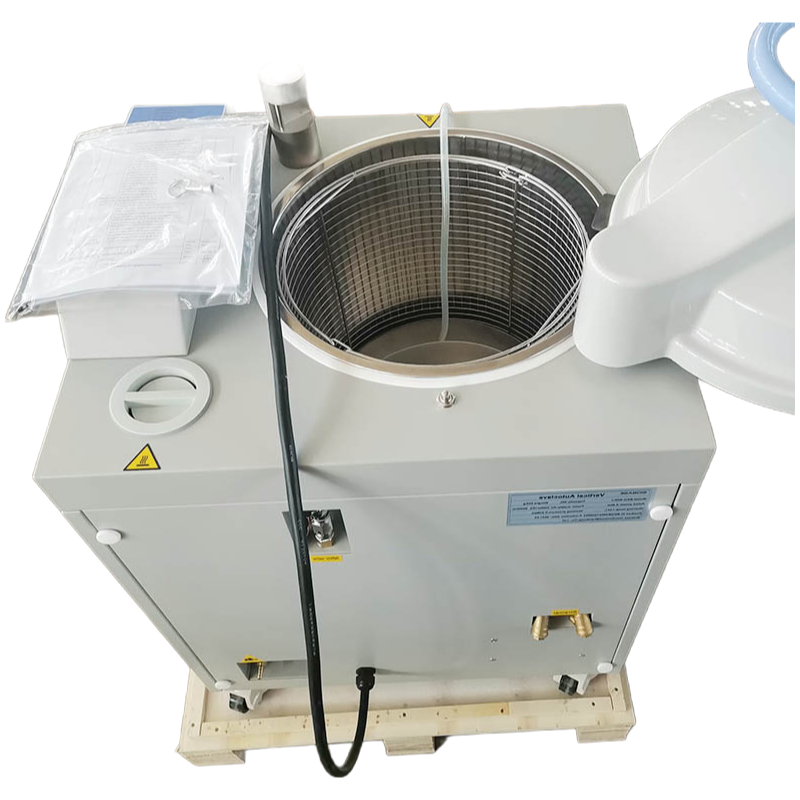

Autoclave Chamber Details

Anyway, our company can bundle two stainless steel baskets with the 100L or three with the 150L, and the external footprint on the 150L is 650*650*1400mm, so it fits through standerd doorways if you're retrofitting into an existing lab space.

Frequently Asked Questions

What is the minimum order quantity for the BKQ-B50II model?

MOQ for the BKQ-B50II is 1 unit. We can mix different capacities in a single order if needed.

How long is the typical lead time for a BKQ-B200(II) unit?

Lead time for the BKQ-B200(II) is around 30-45 days from order confirmation, depending on current production volume.

Does this equipment come with a certificate for the S30408 stainless steel chamber?

Yes, we provide a material certificate for the S30408 stainless steel chamber upon request. It confirms the grade and quality.

Can the dissolution temperature range be set anywhere between 60 and 100°C?

Yes, the dissolution temperature is fully programmable within that 60-100°C range, so you can dial in exactly what your process needs.

What packaging do you use for shipping the 200L model to prevent damage?

We use export-grade wooden crates with foam padding and secure strapping. For the 200L unit, which weighs 238 kg, we also add extra corner reinforcement.
