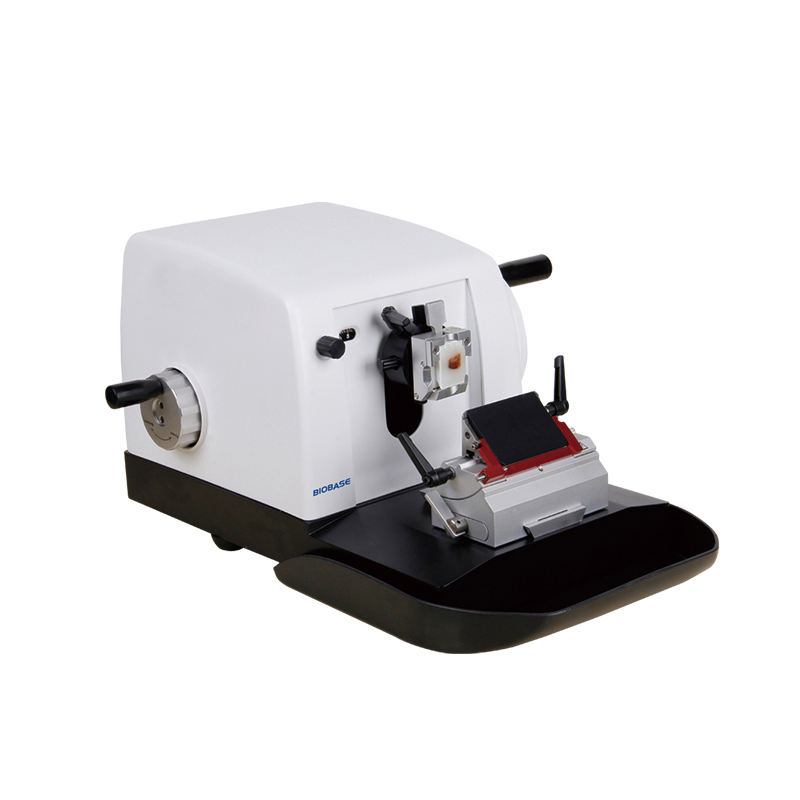

The manual trimming you have to do before getting clean sections is honestly the most tedious part, and this unit's 60μm max capacty means you're not going to blast through thick blocks in one pass—most buyers who work with paraffin-embedded tissues end up staying in the 3-10μm range anyway, so the 0.5μm minimum with ±5% precision is what actually matters for routine histology.
What it does is give you that consistent, chatter-free ribboning even at 4μm when the blade is properly aligned, and the cross-roller guide rails handle the vertical and horizontal stroke—28mm horizontal, 52mm vertical—without that annoying stick-slip you get on cheaper units; we've had labs running these for 18 months or so without needing to replace any wear parts.
360° rotation on the specimen holder plus 8° adjustment in both horizontal and vertical planes means you can square up even those tricky 50×70mm blocks that were cut slightly off-axis during embedding, but honestly the left/right tool holder movement of 23mm is the spec most people don't think to ask about until they're trying to align a fresh blade with a partial block.
Bulk pricing starts at roughly $2,800 per unit for a 5-piece MOQ, lead time is usually 20 working days but we've been running about 30 days recently due to compnent shortages, and the OEM services (our company can do custom color or branding on the housing) add about 2 weeks and a 12% upcharge—most buyers just take the standdard white unit and focus on getting the COA with the HPLC data for their validation docs.
The packaging dimensions are 595×575×470mm and gross weight hits 42kg, which basically means you're looking at a freight cost that's about 15-20% of the unit price for internatioanl shipping, and our company have seen some labs go with air freight for a single unit when they needed it in 7 days, but the 29kg net weight is easier to handle than it sounds.
Also, this isn't suited for frozen section work where you need rapid trimming at 50μm or above—the manual feed wheel gets stiff after continuous use at the high end, so it's really a paraffin block machine through and through, and teh blade guard (full-length, covers the edge) is non-negotiable for safety compliance in most institutional settings.
You can go as low as 0.5μm for thin sections, with a precision of ±5% across the full 0–60μm range.
Yes, we offer OEM services. You can customize branding, packaging, and certain specifications to fit your lab's needs.
MOQ typically starts at 1 unit for sample orders. Lead time is around 7–15 days depending on quantity and customization requirements.
Absolutely, samples are available. You can request one to test the cutting precision and build quality before committing to a larger quantity.
We provide a CE certificate and a full calibration report showing the ±5% precision. You'll also get an instruction manual and warranty card.
