24kV VS1 Withdrawable Vacuum Circuit Breaker for KYN Switchgear - High Voltage Protection Solution 24kV VS1 Withdrawable Vacuum Circuit Breaker for KYN Switchgear - High Voltage Protection Solution
24kV VS1 Withdrawable Vacuum Circuit Breaker for KYN Switchgear - High Voltage Protection Solution 24kV VS1 Withdrawable Vacuum Circuit Breaker for KYN Switchgear - High Voltage Protection Solution
24kV VS1 Withdrawable Vacuum Circuit Breaker for KYN Switchgear - High Voltage Protection Solution 24kV VS1 Withdrawable Vacuum Circuit Breaker for KYN Switchgear - High Voltage Protection Solution

24kV VS1 Withdrawable Vacuum Circuit Breaker for KYN Switchgear - High Voltage Protection Solution

US$ 1 ~ 2500
Min.Order: 1
Product origin: Shantou, Guangdong, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 16 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : VS1-24
  • Rated Voltage : 24kV
  • Rated Frequency : 50Hz
  • Rated Current : 1250A/3150A
  • Breaking Capacity : 31.5kA
  • Short-time Withstand Current : 31.5kA
  • Peak Withstand Current : 80kA
  • Power Frequency Withstand Voltage : 65kV
  • Lightning Impulse Withstand Voltage : 125kV
  • Mechanical Life : 20,000 operations
  • Operation Mechanism : Energy-storage type
  • Arc-extinguishing Medium : Vacuum
  • Installation Type : Withdrawable
  • Phase-to-phase Distance : 275±2mm
  • Operating Sequence : O-0.3s-CO-180s-CO
  • Standards Compliance : IEC 62271-100:2021

The 24kV VS1 withdrawable vacuum circuit breaker is a high-performance electrical protection device designed for medium voltage applications in power distribution systems. This industrial-grade circuit breaker features advanced vacuum arc-extinguishing technology for reliable operation in demanding environments.

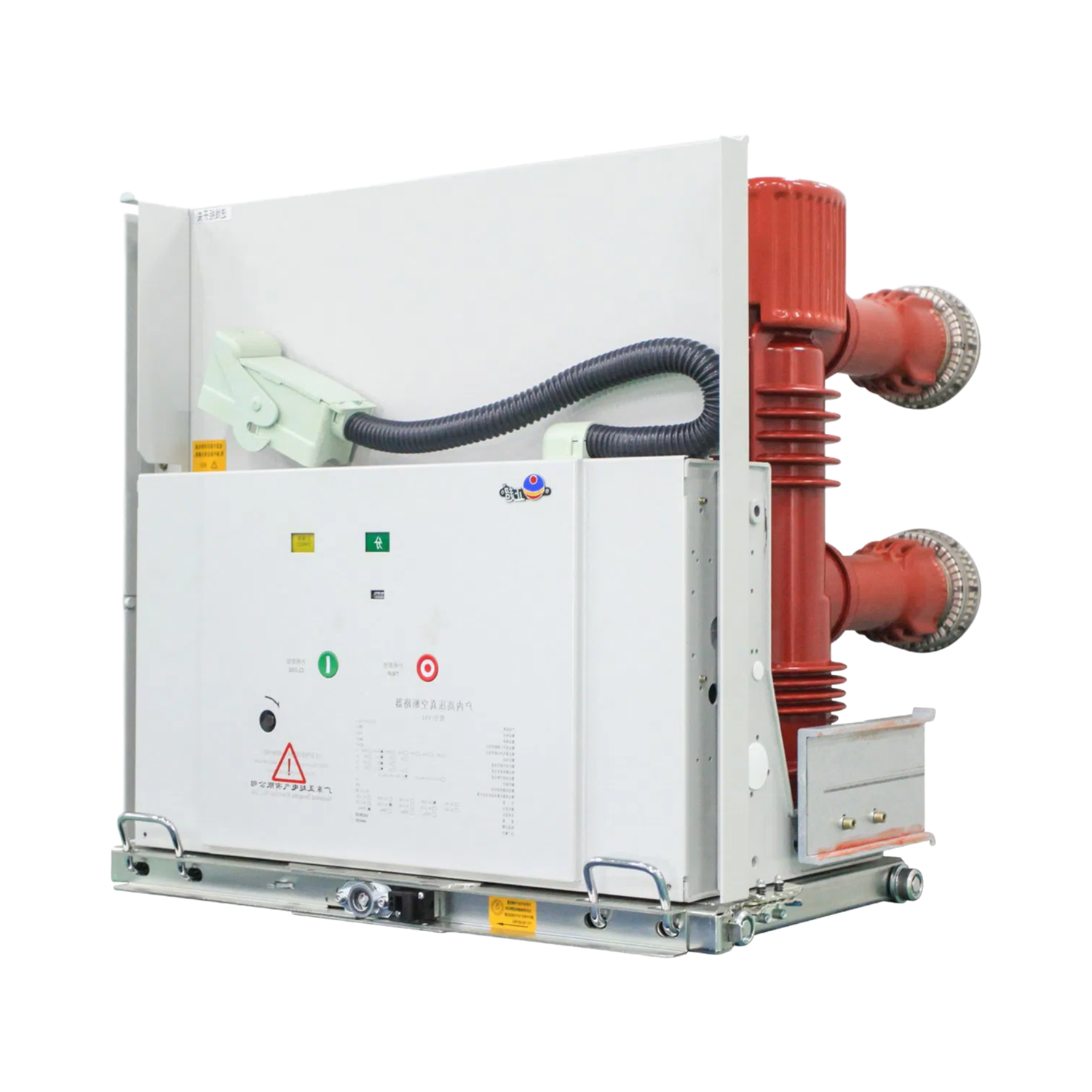

24kV VS1 Vacuum Circuit Breaker Front View

Engineered for compatibility with KYN series air insulated switchgear, this withdrawable type breaker offers convenient maintenance and service capabilities. The vacuum interrupter technology ensures minimal contact erosion and extended electrical life, making it a cost-effective solution for power distribution networks.

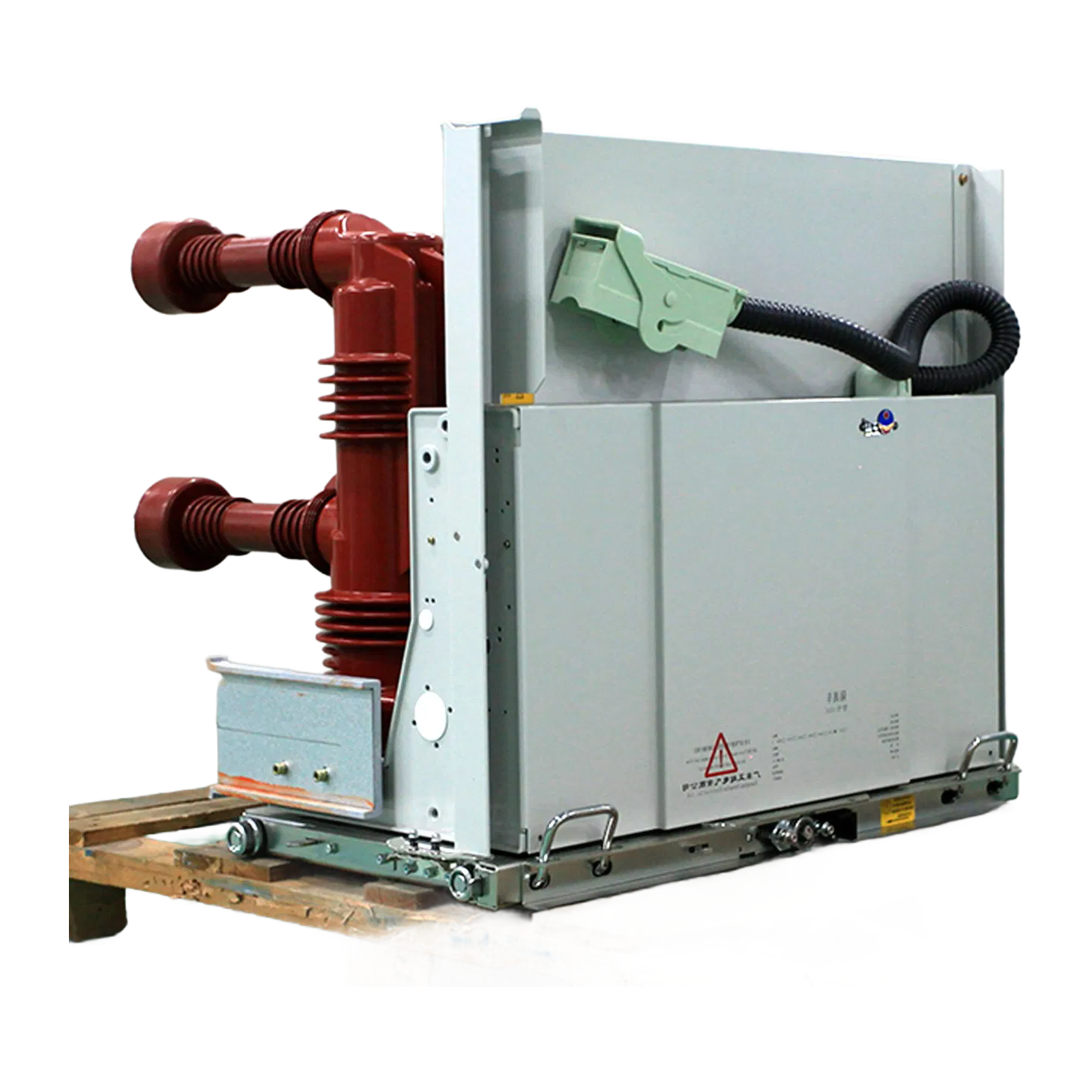

VS1-24kV Circuit Breaker Side View

With a rated short circuit breaking current of 31.5kA and rated current options up to 3150A, this circuit breaker provides robust protection for industrial and utility applications. The energy-storage operation mechanism ensures quick and reliable switching performance under all load conditions.

The breaker's compact design with 275mm phase-to-phase center distance allows for space-efficient installation in switchgear panels. The mechanical life of 20,000 operations and electrical life classification of E2 demonstrate the product's durability and long service life.

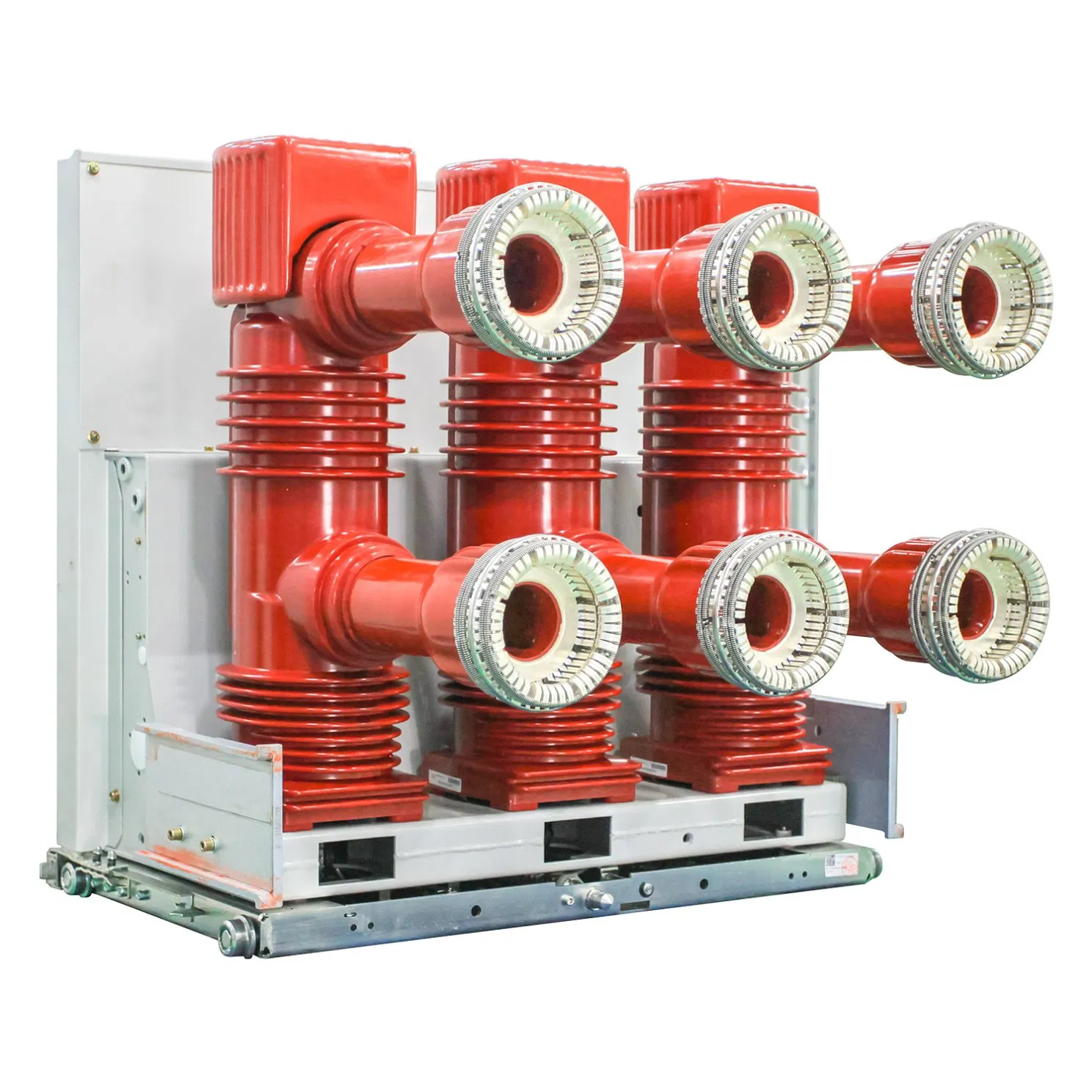

24kV VS1 VCB Internal Components

This circuit breaker meets international standards including IEC 62271-100 (2021 edition) for high-voltage switchgear and controlgear. The product is available with various control voltage options including DC 110/220V, AC 110/220V, and DC 48V for flexible system integration.
