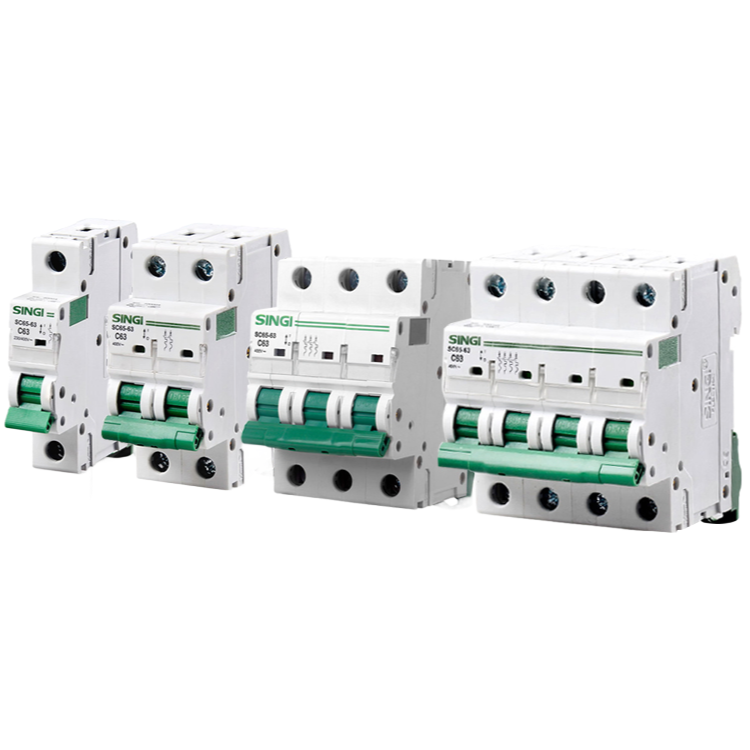

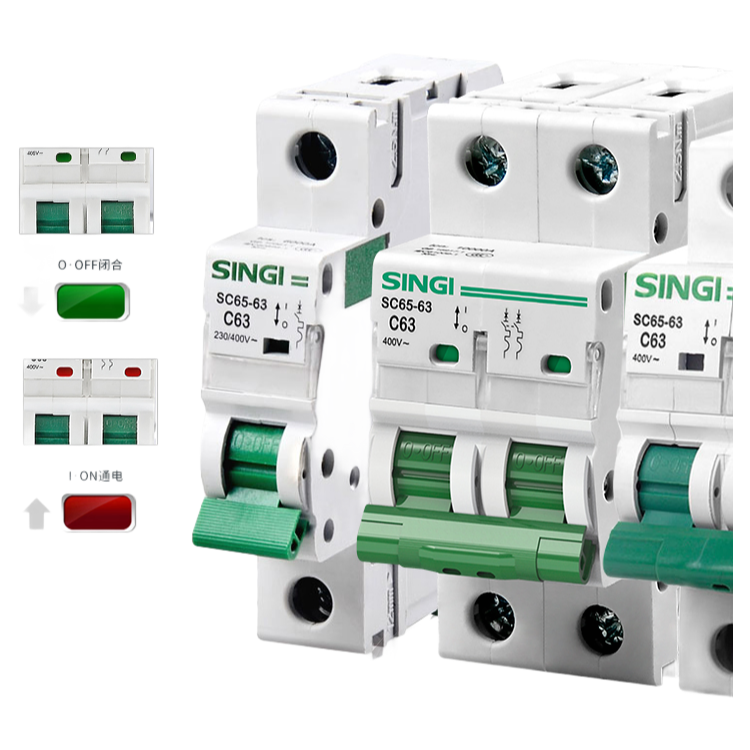

SC65-63 6-63A Single Phase Miniature Circuit Breaker MCB with Overload Protection

The SC65-63 miniature circuit breaker is a high-performance electrical protection device designed for single-phase applications. With current ratings ranging from 6A to 63A, this MCB provides reliable overload and short circuit protection for residential and commercial electrical systems.

This circuit breaker features a durable PA66 nylon housing with flame-retardant properties and meets international standards including IEC60898-1 and GB10963.1. The compact design allows for easy DIN rail mounting in electrical distribution panels.

Key features include:

- Multiple current ratings available (6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A)

- 10kA breaking capacity for superior protection

- Mechanical life of 10,000 operations

- IP20 protection degree

- Suitable for ambient temperatures up to 55°C

The SC65-63 MCB is ideal for protecting lighting circuits, power distribution systems, and electrical equipment in offices, residences, and commercial buildings. Its advanced design ensures reliable performance and long service life in various electrical applications.

Technical specifications include:

- Rated voltage: 230/400V AC

- Frequency: 50/60Hz

- Protection types: B, C, D curves available

- 1P, 2P, 3P, and 4P configurations

- Terminal accepts cables up to 25mm²

With its combination of safety features, durability, and performance, the SC65-63 miniature circuit breaker is an excellent choice for electrical system protection in various applications.
