32A 63A High Performance Air Circuit Breaker - MCB for Electrical Safety Protection

Basically, we're looking at the SG65-63 series here, and what it does is handle overloads and short circuits in residential or commercail setups—breaking capacity sits at 10kA, which is pretty standard for most distribution boards. It's available from 6A up to 63A, with 1P, 2P, 3P, or 4P pole options, and you'll pick a trip curve (B, C, or D) depending on whether your load is resistive, inductive, or has motor start-ups; the B curve is better for lighting circuits, while the D curve handles those high inrush currents without nuisance tripping.

Mechanical life is rated at 10,000 operations, give or take, and the housing uses flame-retardant PA66—it's rated IP20, so keep it in a panel or enclosure where moisture isn't a concern. Terminal capacty accepts up to 25mm² cable, which is usually enough for most branch circuits, but check your local code on derating. The operating temperature range is -25°C to +55°C, so it'll handle a utility closet in summer or a cold storage area, though we've seen issues if you push it near the upper limit for extended periods.

10,000 operations is the mechancial life, but that's under ideal conditions—real-world switching with heavy inductive loads might cut that down by 20% or so. It's not suited for high-cycle applictions like motor starters that need 100,000 operations; you'd want a contactor for that. One thing a buyer might not ask: the PA66 housing can yellow slightly under UV exposure, so avoid direct sunlight if you're mounting it outdoors.

Compliance covers IEC60898 and GB10963.1, and you'll get CE, CB, CCC, and ISO9001 certifications with each batch—COAs are available on request, but we usually have them ready within 2-3 days. The trip characteristics are tested per those standard, so you're looking at a B curve for 3-5x In, C for 5-10x In, and D for 10-14x In, though the actual thresholds can vary by about 5% due to thermal tolerances. We've found the C curve is what most residential buyers go with for general lighting and socket circuits.

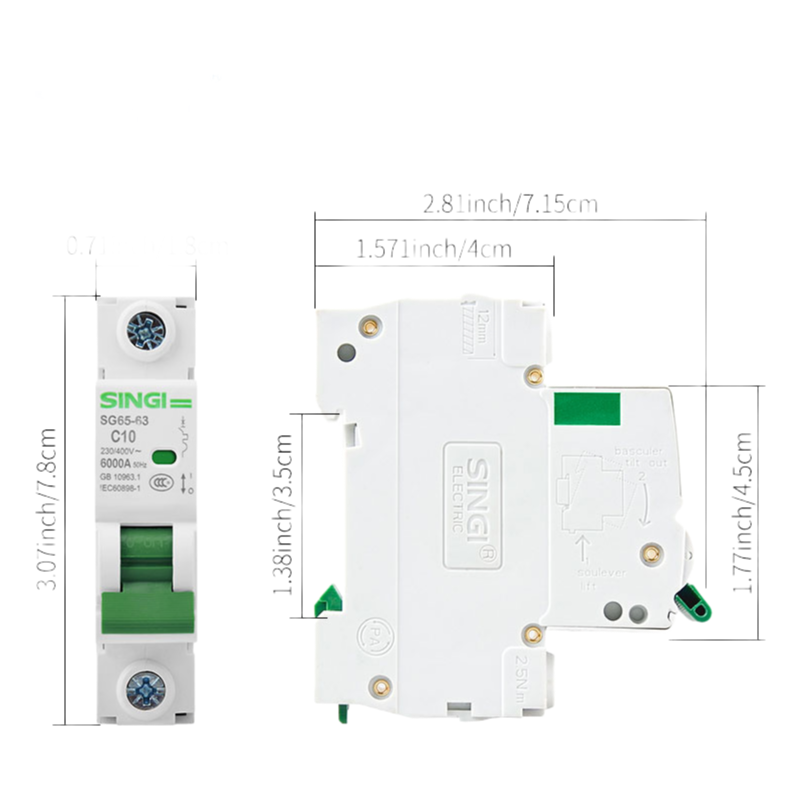

Ordering's straightforward: MOQ is 50 units per rating and pole configuration, and lead time is typically 4-6 weeks for standard orders—stock items like the 32A C-curve 1P ship in about 2 weeks if we have them. Packaging is in bulk cartons of 10 units each, with individual polybags if you request it, but that adds a small cost. For the 63A models, terminal capacity is the same 25mm², but the housing is slightly larger to handle the heat dissipation.
