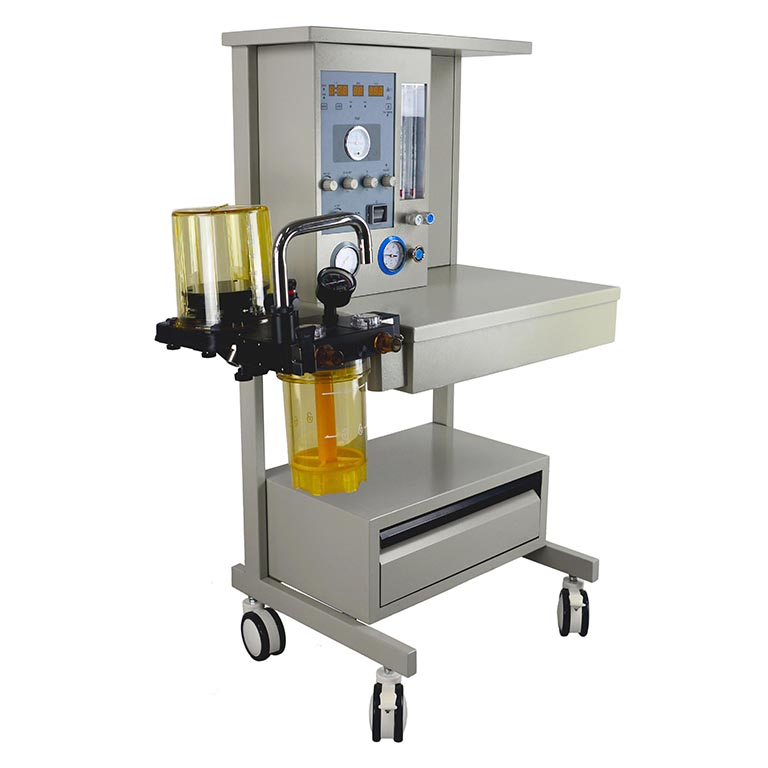

The JINLING-01 Anesthesia Machine represents advanced medical technology for surgical applications. This pneumatically driven, electronically controlled system offers three operating modes: closed, semi-closed and semi-open configurations to meet diverse clinical requirements.

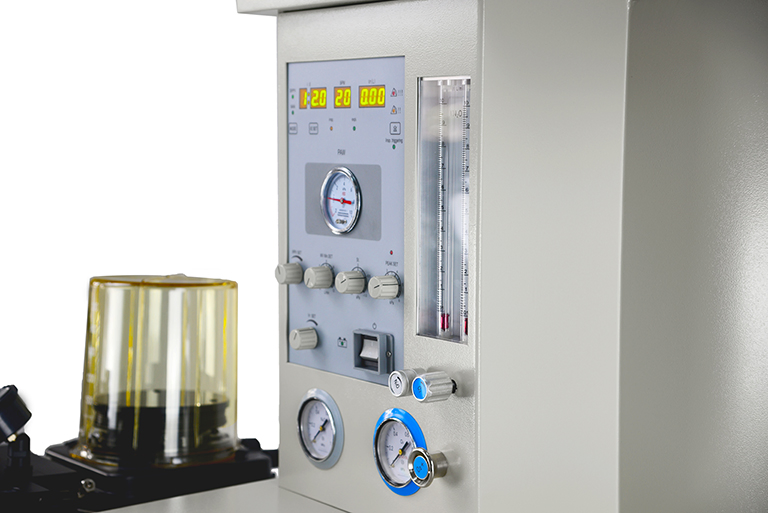

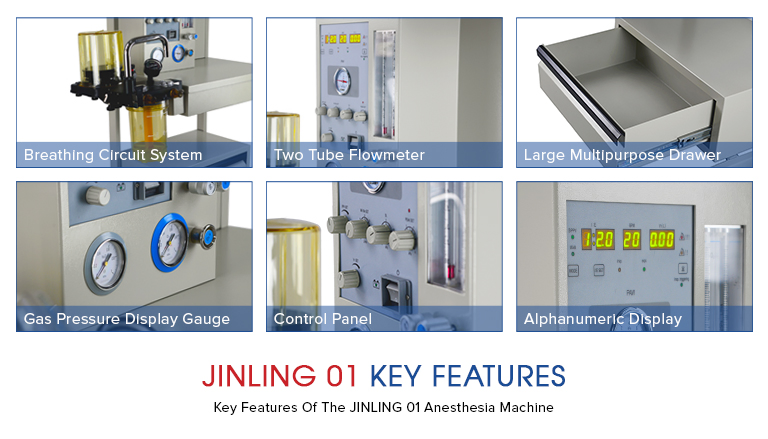

Featuring a high-visibility LED alphanumeric display, the integrated metallic modular respiratory circuit ensures reliable gas sealing even after high-temperature disinfection. The precision-engineered dual tube flowmeter includes oxygen-nitrous oxide interlocking safety mechanisms, maintaining minimum 21% oxygen output at all times.
The ventilator supports IPPV, SIPPV and MANUAL modes with adjustable tidal volume (50-1500ml) and respiratory rate (4-40bpm). Advanced safety features include automatic power failure conversion with 4+ hours backup operation and comprehensive alarm systems for tidal volume, airway pressure and oxygen failure monitoring.
Equipped with imported vaporizer components supporting Enflurane, Isoflurane and Sevoflurane (Halothane optional), the system features self-compensating functionality with 0-5% concentration ranges. The innovative rotating Na-lime tank design allows single-handed operation using temperature-resistant PPSU material (134°C rated).
Built with a fully metallic frame, the JINLING-01 performs automatic self-checking during startup and features continuous sensor calibration. The infrared turbine flow sensor provides precise gas flow measurement for stable, reliable operation in critical care environments.
