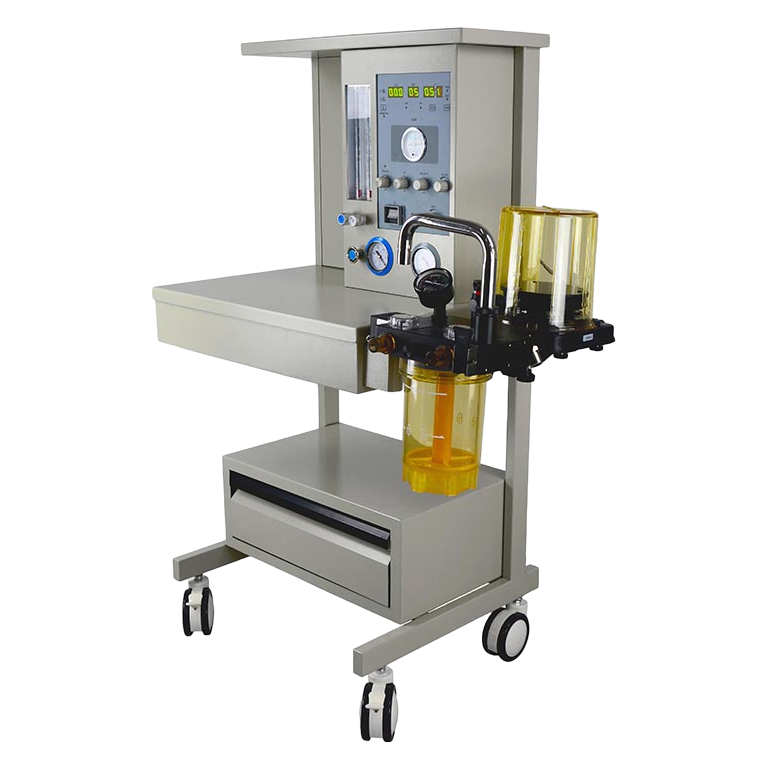

The JINLING-01 Standard Anesthesia Machine represents advanced medical technology for surgical procedures. This CE and ISO13485 certified equipment features a high-visibility LED alphanumeric display that provides clear monitoring of all critical parameters during anesthesia administration.
With its pneumatically driven and electronically controlled system, the machine offers three operating modes: closed, semi-closed, and semi-open. The built-in anesthesia ventilator includes multiple ventilation modes including IPPV, SIPPV, and MANUAL, making it versatile for various surgical requirements. The tidal volume is adjustable from 50-1500ml with a display range extending to 2000ml for comprehensive monitoring.

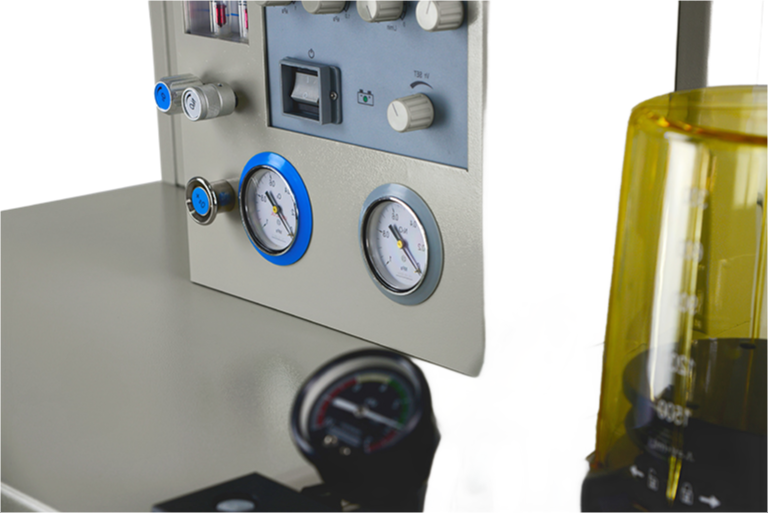

The precision-engineered flowmeter system features two tubes with O2 range of 0.1-10L/min and N2O range of 0.1-10L/min, equipped with oxygen-nitrous oxide interlocking safety mechanism that guarantees oxygen concentration never falls below 21%. The respiratory rate can be set from 4-40bpm with adjustable I:E ratio between 1:1.5 to 1:3.0.
For vapor administration, the machine comes with a single PA-80 type vaporizer slot compatible with Enflurane, Isoflurane, and Sevoflurane (Halothane optional), featuring concentration ranges of 0-5%. The advanced rotating Na-lime tank uses imported PPSU material resistant to temperatures up to 134°C.
Safety features include comprehensive alarm systems for tidal volume, airway pressure, power failure, and oxygen failure, along with automatic backup power conversion that provides at least 4 hours of operation during AC power outages. The fully metallic frame ensures durability while the self-checking and self-calibrating functions maintain operational accuracy.
The integrated modular respiratory circuit solves gas sealing challenges during high temperature disinfection, making cleaning and maintenance straightforward. Optional multi-parameter patient monitoring can be added for enhanced surgical support.
