The JINLING-01B Advanced Anesthesia Machine represents the pinnacle of medical anesthesia technology, designed for precision and reliability in surgical environments. This sophisticated system combines pneumatic drive with electronic control, offering closed, semi-closed, and semi-open operating modes to accommodate various clinical requirements.
At the heart of the system is the built-in 5.4 inch TFT display that provides clear visualization of Pressure-Time and Frequency-Time waveforms. The intuitive interface allows medical professionals to cycle through displayed waveforms instantly with a simple touch, enhancing operational efficiency during critical procedures.
The machine features a standard integrated metallic modular respiratory circuit that completely solves gas sealing challenges during high temperature disinfection. This design not only ensures patient safety but also simplifies cleaning and disinfection processes, meeting strict hospital hygiene standards.

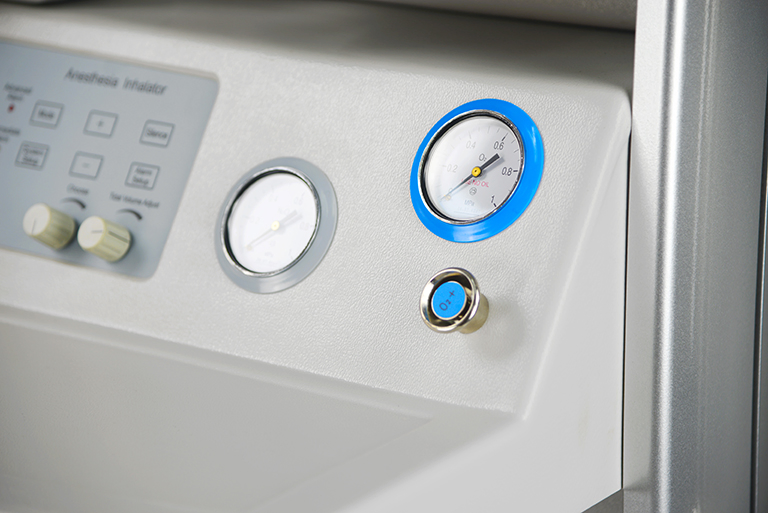

Safety is paramount with the JINLING-01B, which includes an oxygen failure alarm system that automatically cuts off nitrous oxide when oxygen pressure falls below 0.20 MPa. The four-tube flowmeter with interlocking oxygen-nitrous oxide supply guarantees oxygen output never drops below 21%, while the backup power system provides at least 4 hours of operation during AC power outages.
The anesthesia ventilator offers multiple ventilation modes including IPPV, SIPPV, IMV, SIMV, and MANUAL, with adjustable tidal volume ranging from 50-1500ml. The advanced rotating Na-lime tank, made from imported PPSU material, is temperature resistant to 134°C and can be operated with one hand for convenience.

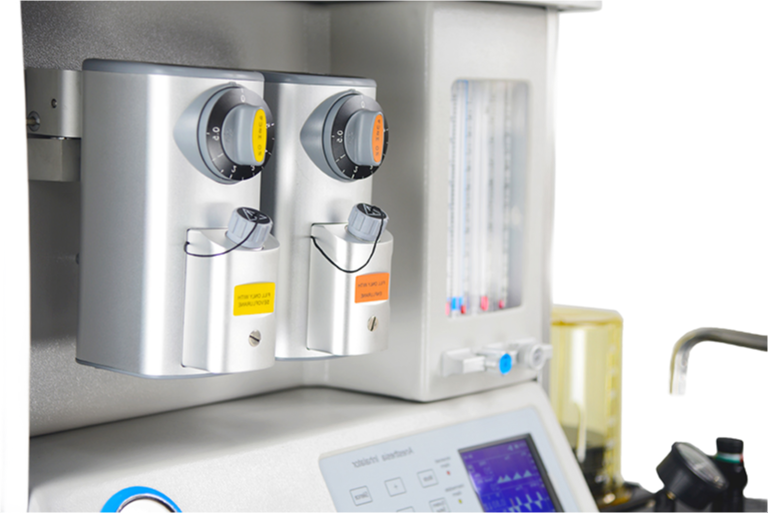

Equipped with double PA-I type vaporizer slots, the system supports Enflurane, Isoflurane, and Sevoflurane (with Halothane optional). The infrared turbine flow sensor ensures precise gas flow measurement, while the self-compensating functionality maintains consistent performance across various operating conditions.
