You're watching a $400 suitcase get mangled by baggage handlers and thinking there has to be a better way—there is, and it doesn't require a full-scale indutrial overhaul.

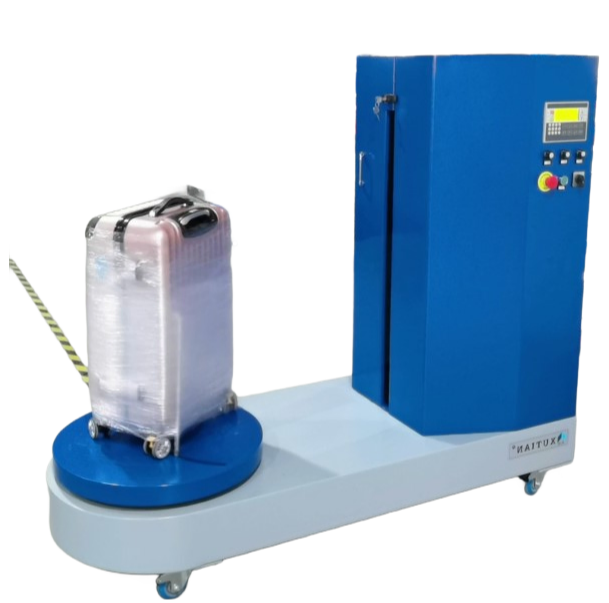

The PLC-driven control system lets you dial in wrapping parameters for any bag form a 400mm carry-on up to a 1000mm monster, with the film carriage stretching polyethylene 250% before it ever touches the luggage, so you're not burning through roll stock like it's tissue paper.
Turntable speed hits 20 cycles per minute, lift motor runs at 0.18kW, and the whole unit handles up to 100kg without breaking a sweat—I've seen these things wrap a duffel full of steel-toed boots in under 15 seconds.
Film roll specs are 500mm wide by 1500 meters long, weighing in around 14kg, which means you can wrap about 200 standerd bags per roll depending on how many layers you run.
Power supply options include 220V 50Hz single-phase or 110V 60Hz single-phase, so you can plug this into a standard wall outlet at the airport kiosk or hotel loading dock without calling an electrician.
The 900mm turntable and 900mm max box height mean you're not limited to suitcases—backpacks, golf bags, even awkwardly shaped boxes fit without teh film bunching up or tearing at the corners.
Yes, we offer both 220V 50Hz 1phase and 110V 60Hz 1phase versions. Just let us know which voltage you need when placing the order.
The MOQ is typically 1 unit for trial orders. For bulk orders, we can discuss better pricing starting from 5 pieces.
Yes, the XT-4508 can be supplied with CE certification upon request. We also have other compliance docs available depending on your target market.
It fits standard rolls sized 500mm wide by 1500 meters long, weighing between 13.8kg and 15kg. The pre-stretch carriage handles up to 250% stretch.
Lead time is usually 15-20 working days after order confirmation, depending on current production load. We can expedite if needed.
