We've seen these units go straight into utility-scale solar farms where the ground is anything but flat, and the combination of drilling and hammering in one pass saves a full day per row compared to using separate rigs—basically, you're looking at a machine that can handle both the auger work for the foundation and the pile driving itself without switching attachments.

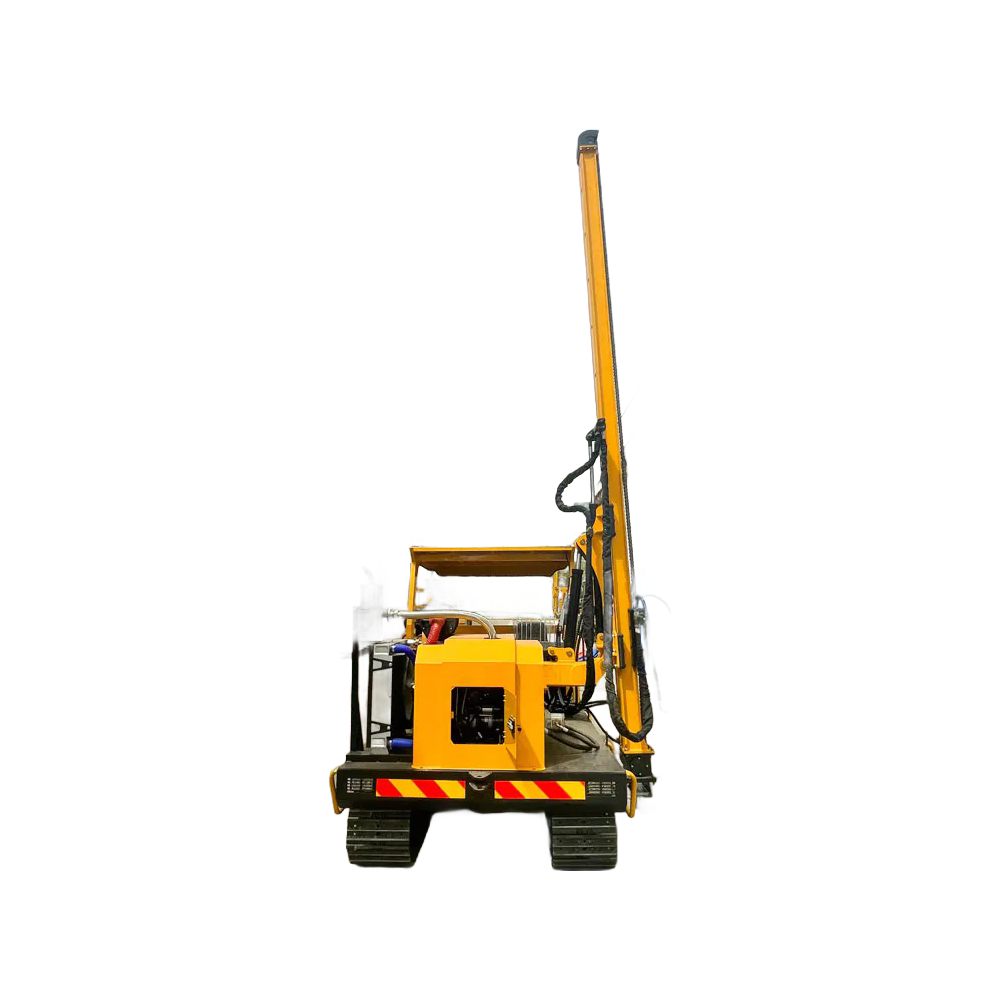

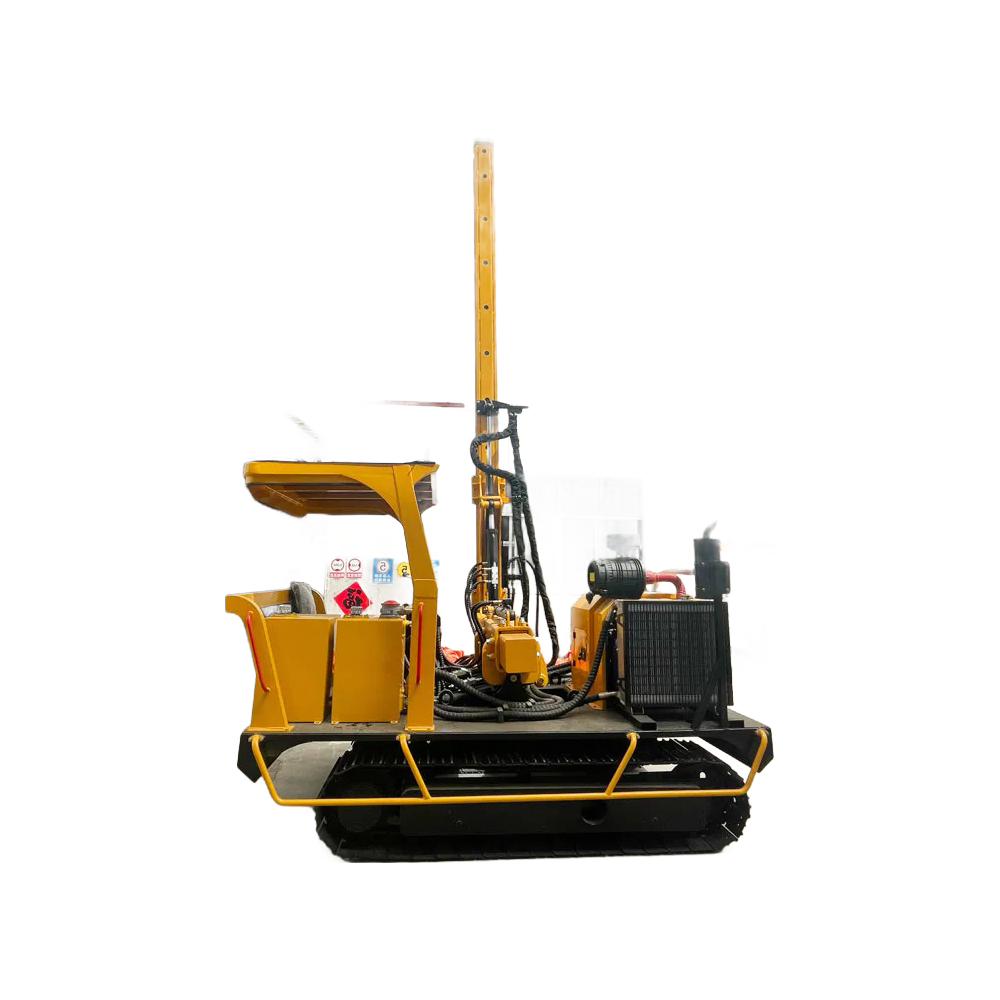

The HXR6 series runs a 96 kW engine feeding a 60 L/min hydraulic loop at 20 MPa, which gives you impact power between 1400 and 1960 J depending on how you set the Korean imported hammer, and the drilling diameter goes form 50 mm up to 300 mm with a max depth of 4 meters—though that depth assumes decent soil conditions, not solid rock.
It's not really suited for deep foundation work beyond 4 meters or so, so if your project calls for 5-meter piles you'll need a different approach, but for standerd solar racking where the piles are typically 2 to 3 meters deep this thing is pretty much ideal, and teh 30-degree climbing ability means it can handle slopes that would stall a lot of other rigs.
Walking speed is 3.8 km/h, which is slow enough to be safe on site but fast enough to reposition between rows without wasting time, and both the hydraulic and diesel tanks hold 80 liters each so you can run a full shift without refueling.
For ordering, we usually have stock on base model with a 1-year warranty, but if you need OEM or OEM modifications—like custom paint or private labeling—lead time stretches to about 6-8 weeks, so just confirm timing before you commit.
We don't have a strict MOQ for this model—single units are fine for most orders. But if you're looking at OEM/ODM customization, we'd typically ask for at least 5 units to make the tooling setup worthwhile.
Yes, we include copies of ISO, CE, EPA, and RoHS certificates with every machine. Just let us know if you need them notarized or in a specific format for your customs clearance.
For a standard unit without customization, we ship within 15–20 working days after payment. If you need OEM branding or spec changes, add about 10 more days for production.
We recommend using ISO VG 46 hydraulic oil for the 80 L tank. Using any other grade won't void the warranty, but it could reduce hammer performance—stick to the spec to keep the 1-year coverage intact.
Yes, the HXR6 accepts drill bits from 50 mm up to 300 mm—you just swap the bit. The Korean hydraulic hammer's impact power range (1400–1960 J) handles the whole span without any issue.
