Customizable KR300E Piling Machine with 83m Max Drilling Depth for Industrial Applications Customizable KR300E Piling Machine with 83m Max Drilling Depth for Industrial Applications
Customizable KR300E Piling Machine with 83m Max Drilling Depth for Industrial Applications Customizable KR300E Piling Machine with 83m Max Drilling Depth for Industrial Applications

Customizable KR300E Piling Machine with 83m Max Drilling Depth for Industrial Applications

US$ 647000.00 ~ 684000.00
Min.Order: 1
Product origin: Wuxi, Jiangsu, China
Category: Tools
Product Name: Tools
Availability:In Stock
Product Review : 4 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Type : KR300E Hydraulic Rotary Drilling Rig
  • Torque : 320 KN.m
  • Max. Diameter : 2000 mm
  • Max. Drilling Depth : 83/54 m
  • Rotation Speed : 6-27 rpm
  • Max. Crowd Pressure : 220 kN
  • Max. Crowd Pull : 220 kN
  • Main Winch Line Pull : 320 kN
  • Main Winch Line Speed : 65 m/min
  • Auxiliary Winch Line Pull : 110 kN
  • Stroke (Crowd System) : 6000 mm
  • Mast Inclination (Lateral) : ±5°
  • Mast Inclination (Forward) : 5°
  • Max. Operating Pressure : 34.3 MPa
  • Pilot Pressure : 4 MPa
  • Travel Speed : 1.5 km/h
  • Traction Force : 560 kN
  • Operating Height : 22903 mm
  • Operating Width : 4300 mm
  • Transport Height : 3660 mm
  • Transport Width : 3000 mm
  • Transport Length : 16525 mm
  • Overall Weight : 90 t
  • Power Source : Diesel
  • Certification : CE, ISO 9001:2000
  • Condition : New
  • Warranty : 1 Year or 2000 working hours

The KR300E hydraulic rotary drilling rig is engineered for high-efficiency foundation piling work in construction and industrial projects. With a powerful torque output of 320KN.m and maximum drilling diameter of 2000mm, this rig handles demanding soil conditions with ease.

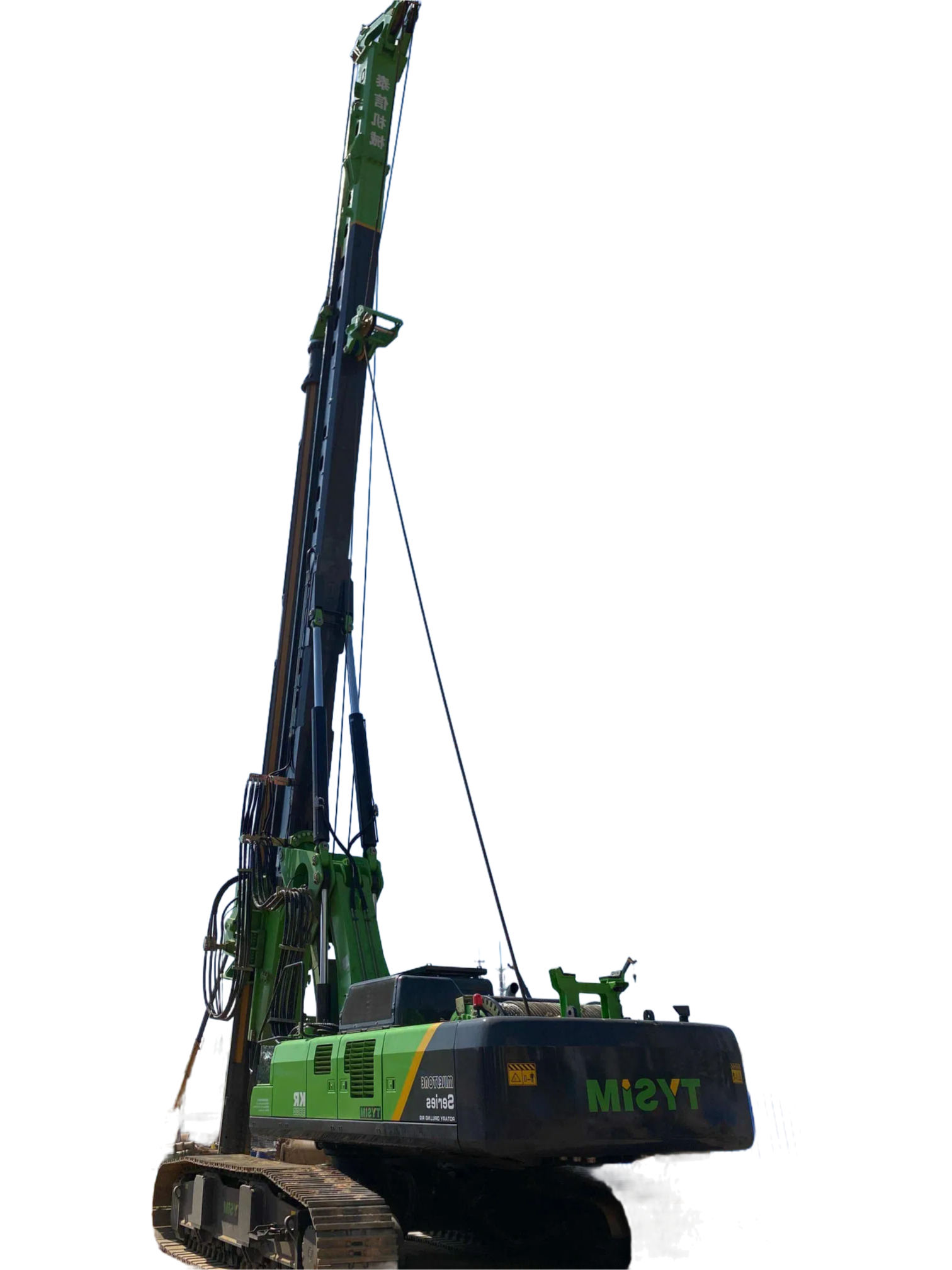

KR300E Rotary Drilling Rig

Key features include an impressive 83m maximum drilling depth (54m in certain configurations) and variable rotation speed between 6-27 rpm. The hydraulic system delivers 220kN crowd pressure and pull force, ensuring stable operation in challenging environments.

The machine's mast offers ±5° lateral inclination and 5° forward tilt for precise positioning. With a 6000mm stroke in the crowd system and 34.3MPa maximum operating pressure, the KR300E maintains consistent performance throughout extended work cycles.

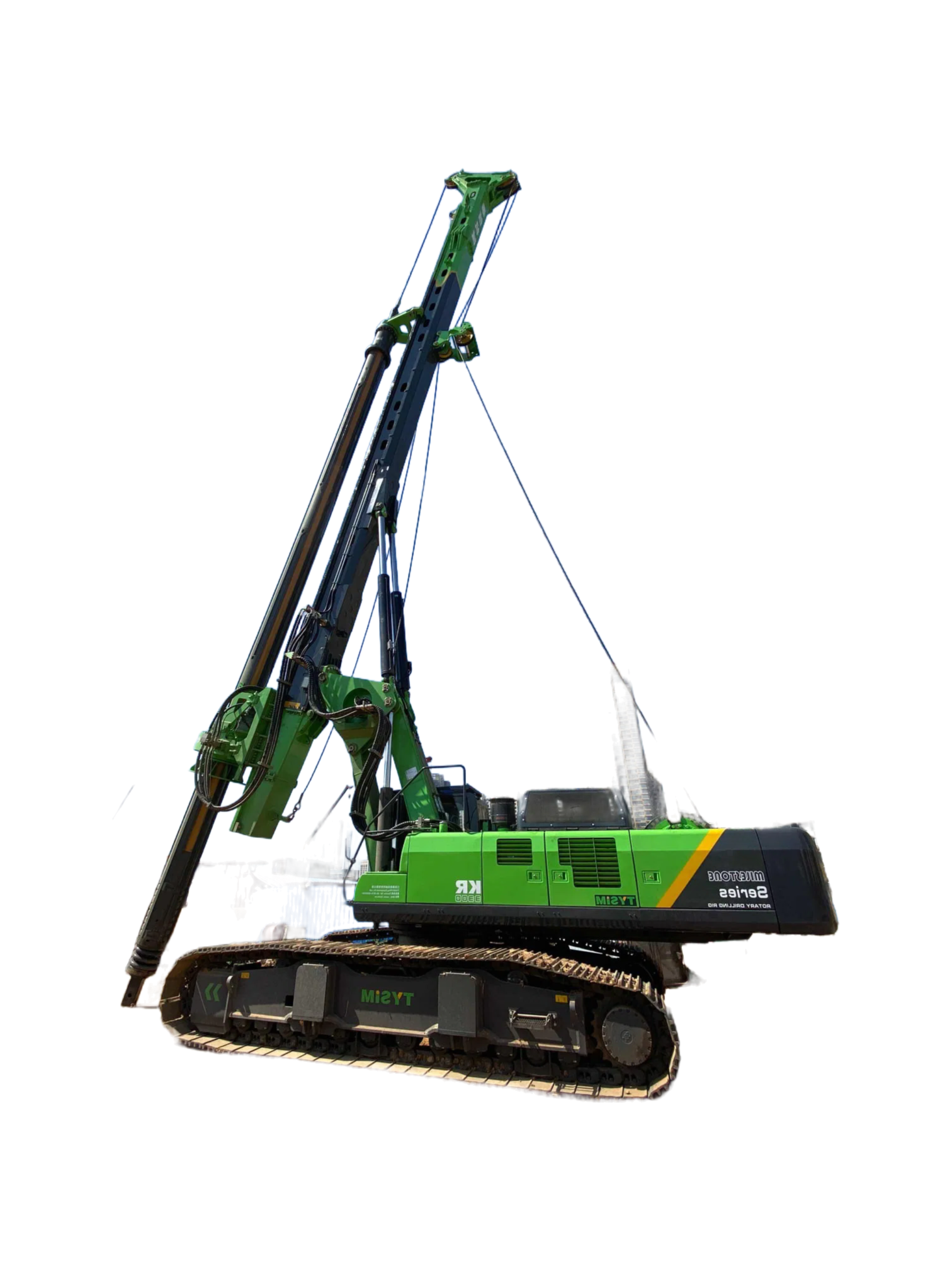

KR300E Drilling Rig Operation

Transport dimensions are optimized for mobility, with a transport height of 3660mm and length of 16525mm. The rig's 90-ton weight provides stability during operation while remaining within standard transport limits.

This drilling rig comes with comprehensive support including technical assistance and a standard warranty of 1 year or 2000 working hours. The machine meets CE and ISO 9001:2000 standards, ensuring quality and reliability for international projects.
