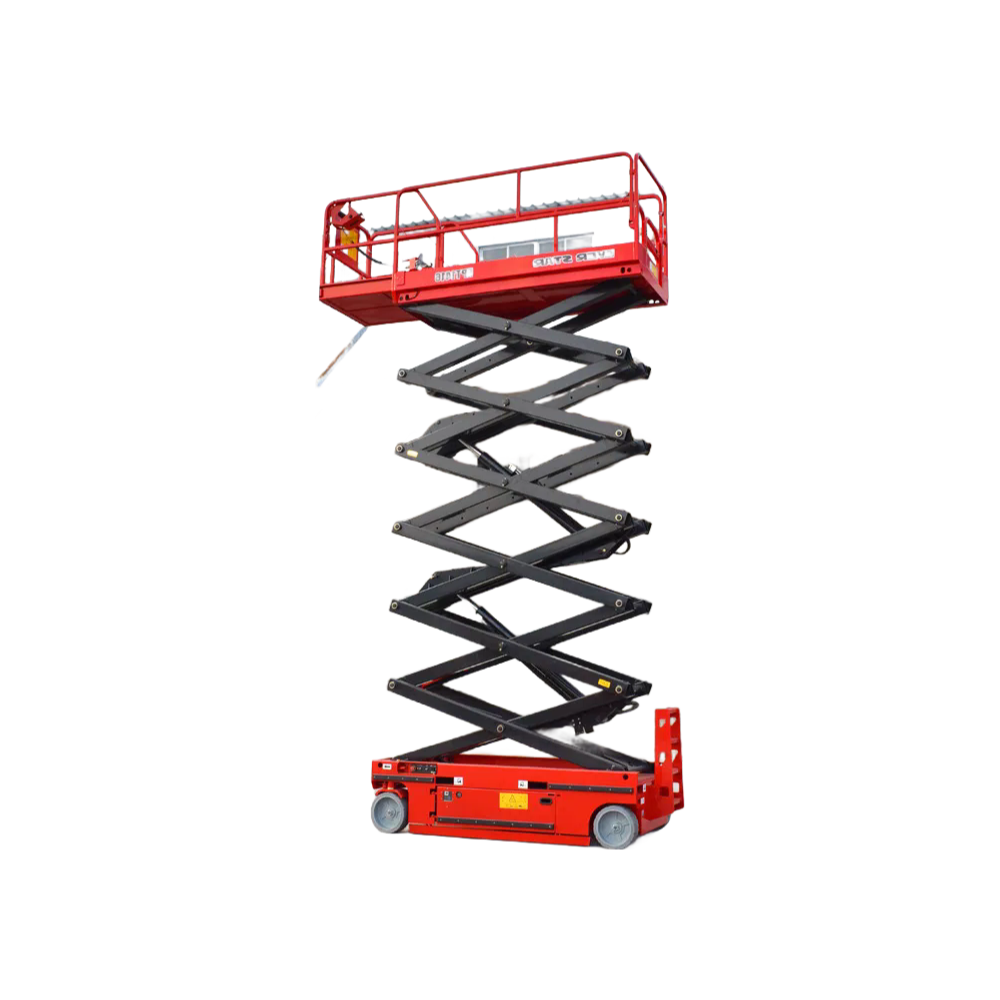

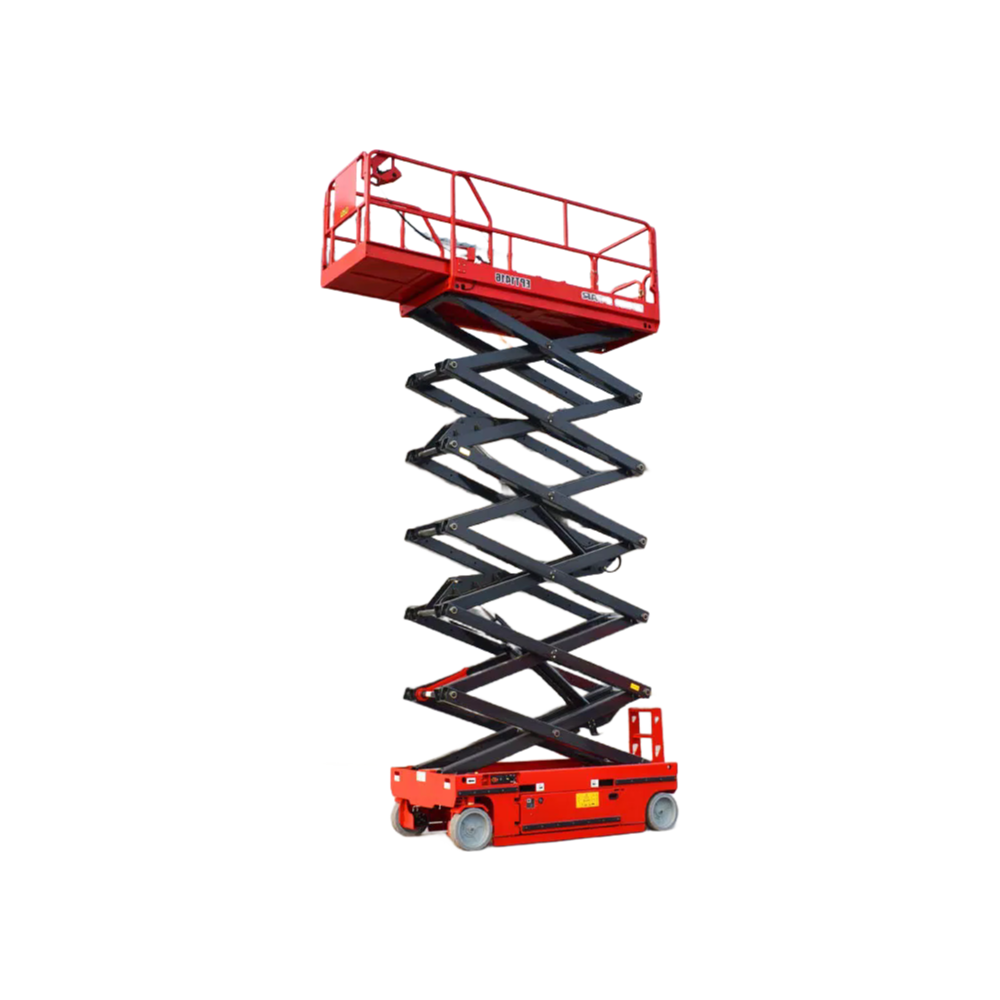

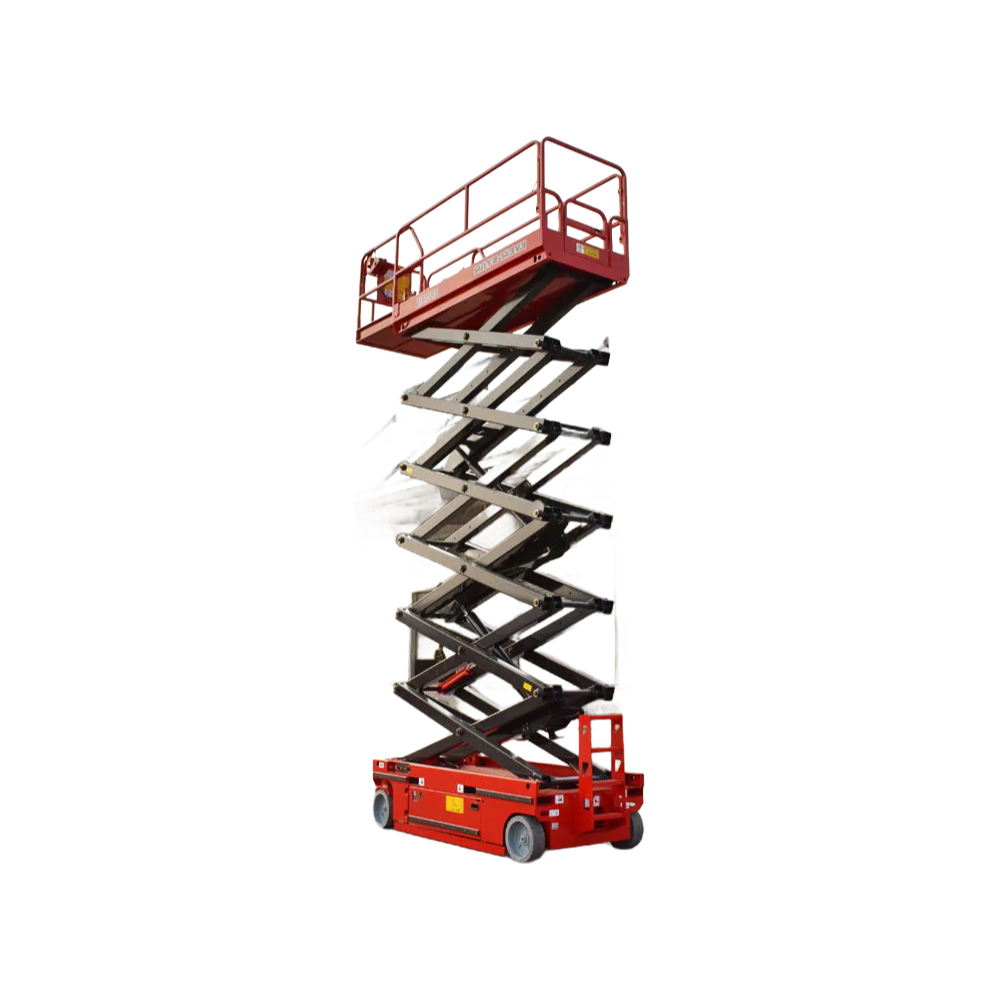

Basically, you're looking at a work platform that scissor lifts up to 8 meters, though we've got models that go all the way to 15.8m if you need more height — it's the same family of machines, just different frame sizes. The smallest model (EPT0608) lifts about 230kg, and teh bigger ones can handle up to 450kg, so think of it as a mobile elevation solution for construction or warehouse maintenance, not a people-mover for heavy materials.
It's powered by a 24-volt, 3.3kw motor driving four 6-volt batteries at 240 amp-hours, which gives you a full day's work on a charge in most cases, and the US DTC control system handles the steering and lift commands. Platform sizes range from 2270mm by 1120mm up to 2700mm by 1110mm, and every model includes a 900mm extension that slides out — handy when you're working near a wall or overhang and don't want to reposition the whole unit. Running speed is slow when lifted (0.8 km/h), but you can cruise along at 3.5 km/h when it's fully retracted, which is pretty much a walking pace.
The tires are Φ381X127mm, which is about 15 inches in diameter, and they handle slopes up to 2° or 3° depending on the direction — so you're not designed for rough terrain, but a flat warhouse or concrete slab is fine. There's a quirk: the platform holds 2 to 4 people depending on model, but the safe working load already accounts for both operators and tools, so don't overload it with extra gear. We've shipped these with CE and ISO 9001 certs, and the COA typically passes HPLC checks if that's your concern.
The overall dimnesions are quite compact for an 8m lift — one model folds down to 1860mm by 760mm by 1840mm, which fits through a standard double door, anyway. What we've found from handling these is the extension mechanism (that 900mm slide-out) tends to be the thing buyers don't think about until they're three floors up and need to reach around a beam; it's tight but works. Don't use it on loose gravel or muddy slopes — it's a scissor lift, not a tracked vehicle, and it'll bog down or slip.
3.5 km/h running speed when retracted, so it's not fast, but it's self-propelled and you don't need a tow — you walk alongside or ride it. We usually keep the EPT0810 and EPT1214 models in stock, but the larger ones like the EPT1416 have a lead time of about 20 days or so. Just confirm the MOQ with your batch since we sometimes mix model numbers on a single pallet.

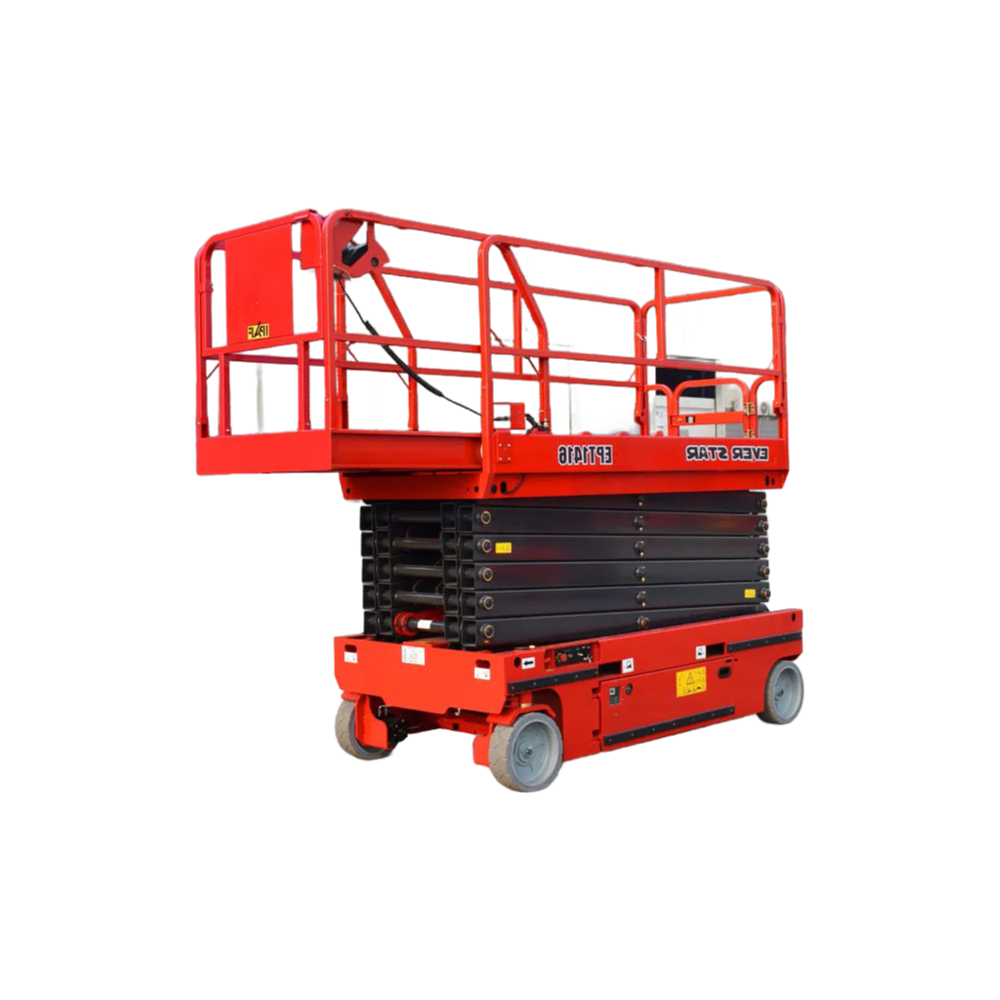

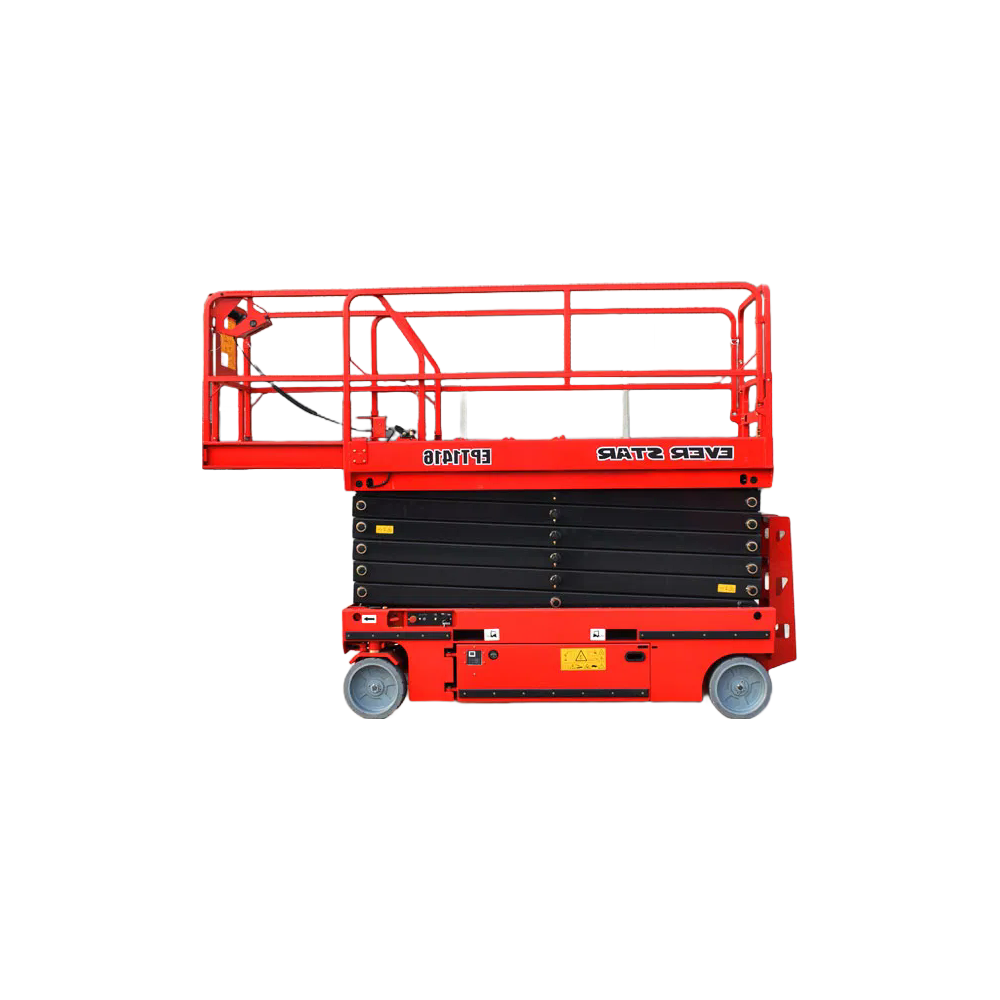

The EPT1416 has a max working height of 15.8m and a safe working load of 450kg, while the EPT0608 maxes out at 8m and 230kg. Platform size also varies, with the EPT1416 being larger at 2700x1110mm versus 2270x1120mm.
Yes, all models come with CE and ISO 9001 certifications. We can provide copies of the certificates upon request.
Our MOQ is typically 1 unit for stock models, but we can discuss larger quantities for bulk orders. Lead time depends on the model and quantity.
The standard platform extension is 900mm for all models, and we don't offer custom extensions on this series. If you need a different length, we can check other product lines.
The 4x6V/240ah battery pack typically runs for 6-8 hours of continuous use, depending on load and frequency of lifting. Charging takes about 8-10 hours.
