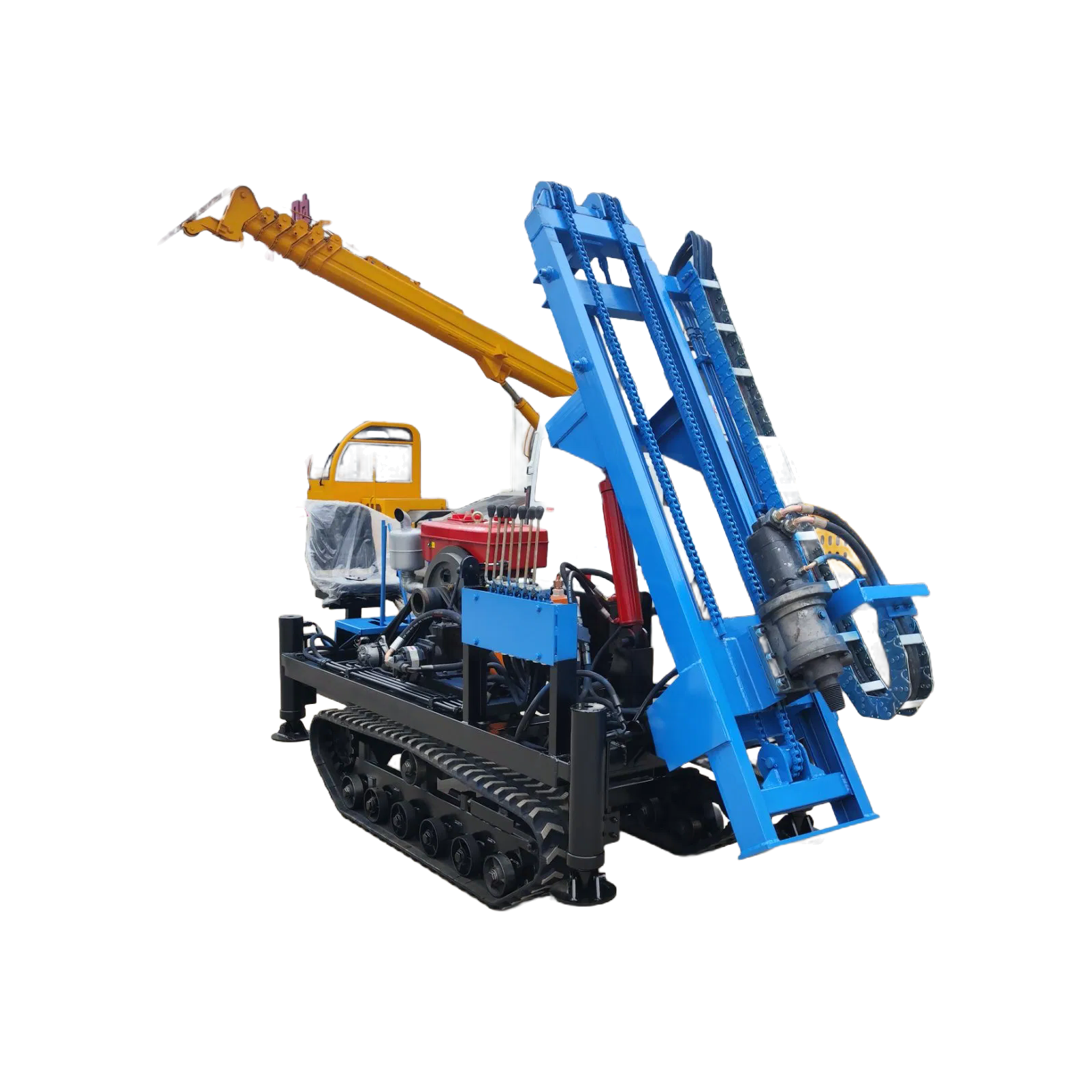

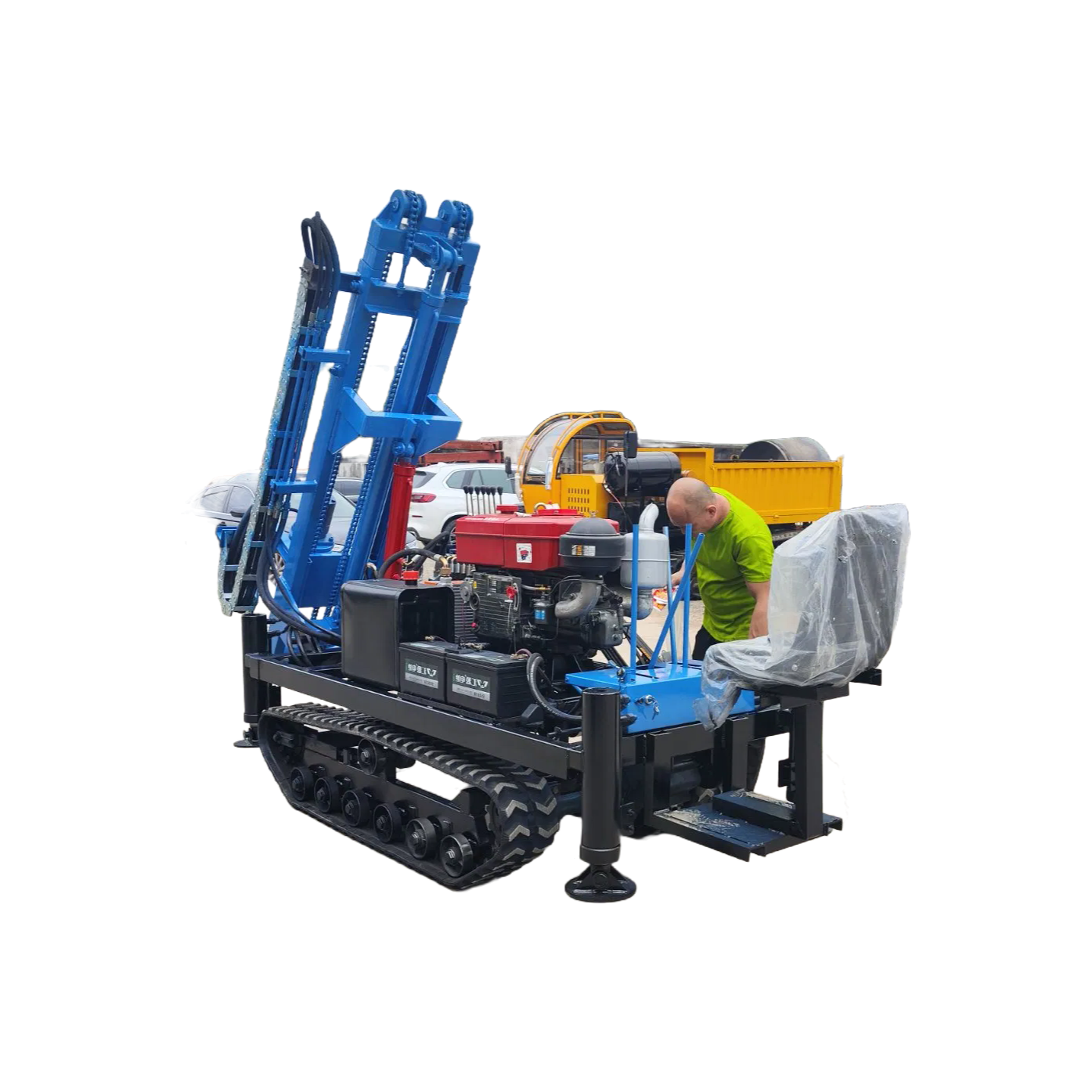

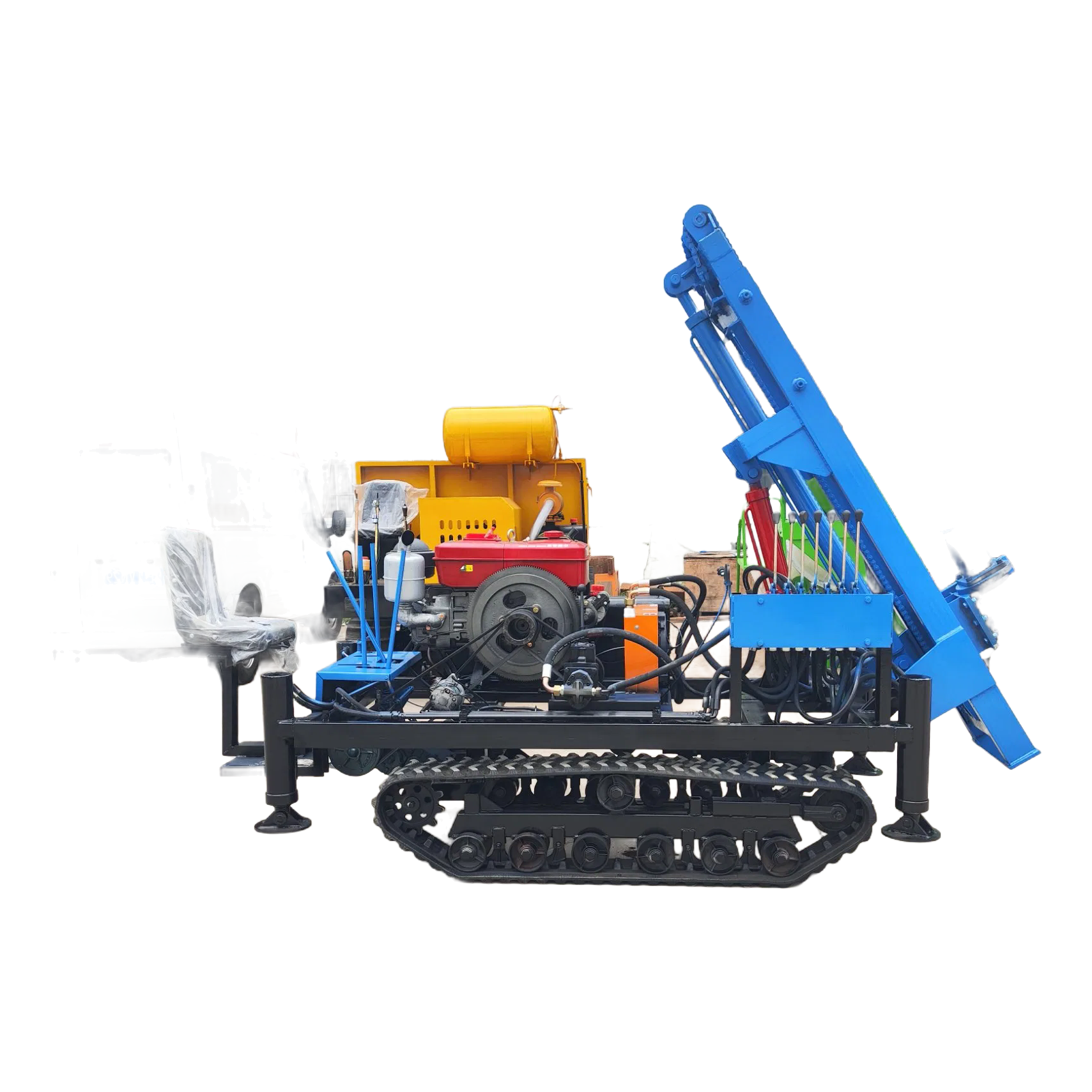

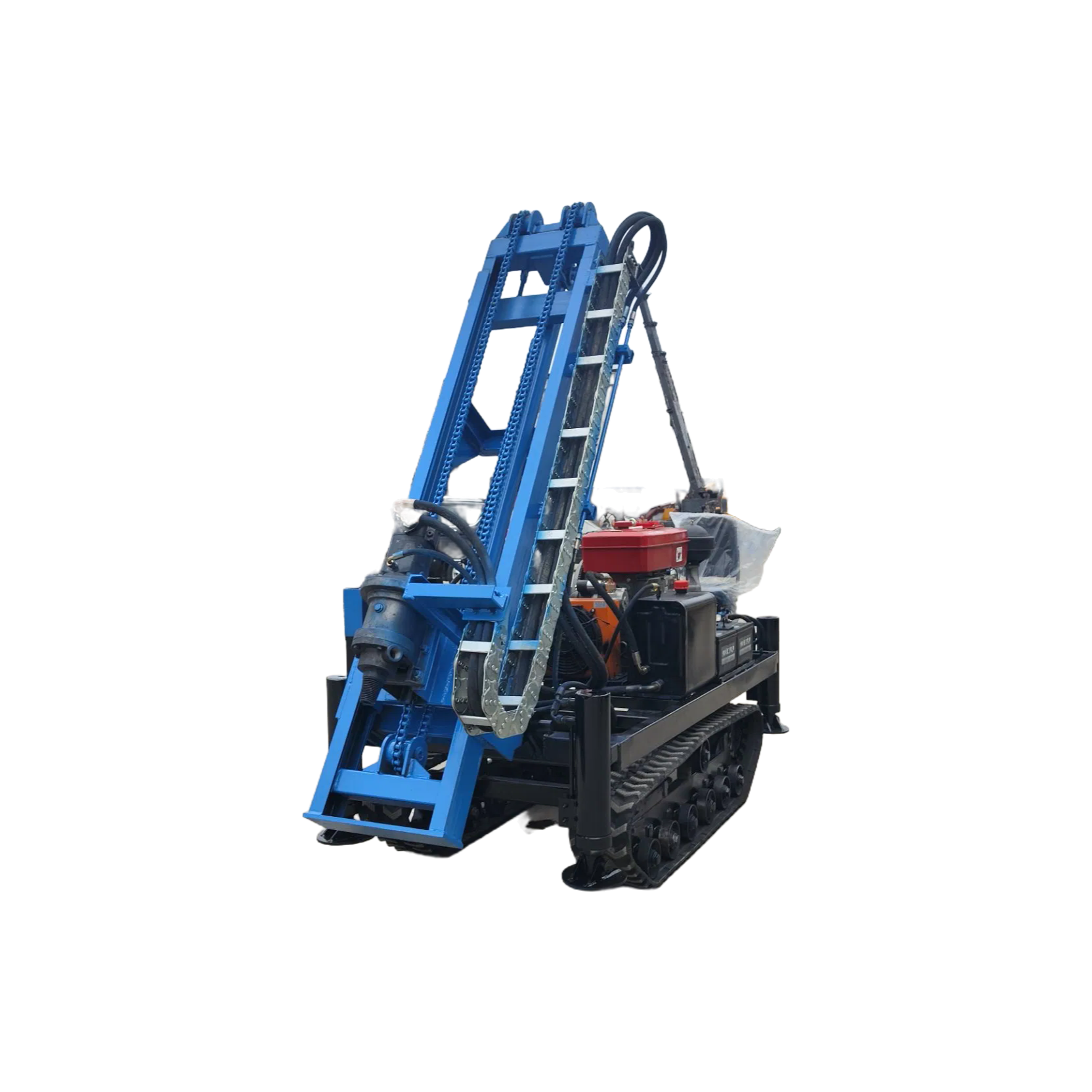

The small track pile driver is a robust and versatile machine engineered for ground nail drilling operations in construction and geotechnical projects. With an overall dimension of 3m in length, 1.1m in width, and 2.4m in height, it offers a compact yet powerful solution for on-site drilling needs. The machine is equipped with engineering rubber tracks measuring 230*72*46, providing excellent traction and stability on uneven terrains.
Powering the pile driver is a hydraulic downhole power head combined with an 18 transmission case, ensuring smooth and efficient operation. The 32 horsepower single-cylinder diesel engine delivers reliable performance, making it suitable for demanding environments. The walking mode utilizes transmission travel, and the machine is supported by four hydraulic outrigger legs for enhanced stability during operation.
The drilling frame employs an oil cylinder top chain for pressurization, allowing for precise control and consistent drilling depth of up to 3 meters. The hole diameter can be adjusted between 50mm and 300mm, catering to various project requirements. To maintain optimal performance, the hydraulic system features a strong wind radiator for effective heat dissipation, and the hydraulic pump is an integrated clutch gear pump for efficient power transmission.
This pile driver is designed with user convenience in mind, offering features such as a noise-free operation and certifications including EPA, CS, CE, RoHS, ISO 9001:2000, and ISO 9001:2008. It is a new condition machine, ideal for construction firms, contractors, and projects requiring reliable drilling equipment. The product is packaged in a wooden box for safe transportation and is origin from China with HS Code 848110.
