CE Certified Horizontal Directional Drilling Rig with Dual Drilling Modes - Air/Mud System

US$ 1 ~ 150000
Min.Order: 1
Product origin: Zhenjiang, Jiangsu, China
Category: Tools
Product Name: Tools
Availability:In Stock
Product Review : 184 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : KSD15
  • Certification : CE, ISO 9001
  • Max Torque : 9020 N.m
  • Rotation Speed : 0-70 rpm
  • Thrust Force : 180 kN
  • Pullback Force : 250 kN
  • Max Bore Length : 300 m
  • Max Bore Diameter : φ800 mm
  • Pilot Bore Diameter : 130 mm
  • Engine Power : 112 kW Diesel
  • Traveling Speed : 2.1 km/h
  • Ground Pressure : 0.69 kg/cm²
  • Rig Weight : 5680 kg
  • Power Pack Weight : 1800 kg
  • Drilling Modes : Air/Mud System
  • Bit Type : Diamond Bit (Optional)
  • Control System : Hydraulic with Console
  • Cooling System : APL430 Cooler
  • Detection System : RD386 (DataSonde)

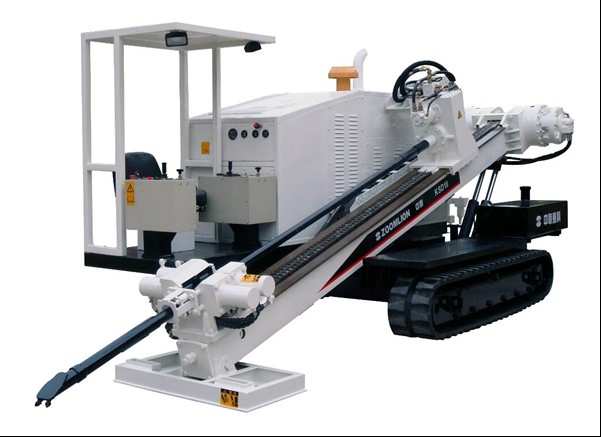

Horizontal Directional Drilling Rig

Our horizontal directional drilling rig is engineered for efficient underground pipe installation with minimal surface disruption. The system features two auxiliary drilling modes to adapt to various ground conditions: compressed air soil discharge (when equipped with pneumatic hammer) and mud-based soil discharge (when using mud system).

HDD Rig Structure

The machine consists of two main components: the rig and power pack. The rig integrates all operational units including traveling tracks, boom, stabilizers, clamps, and rotary head, all controlled via a centralized console. The power pack provides the necessary energy through its diesel engine, hydraulic systems, and cooling components, connected to the rig via hydraulic pipes and control cables.

HDD Rig in Operation

With a maximum bore length of 300m (depending on pipe material and ground conditions) and bore diameter up to φ800mm, this rig handles demanding underground installation projects. The 112kW diesel engine delivers reliable power, while the 250kN pullback force ensures efficient operation in challenging conditions.

HDD Rig Specifications

The equipment comes with comprehensive safety features and meets CE and ISO 9001 standards, ensuring quality and reliability for professional trenchless construction applications. Optional accessories including various diameter backreamers (φ220-φ800) allow customization for specific project requirements.
