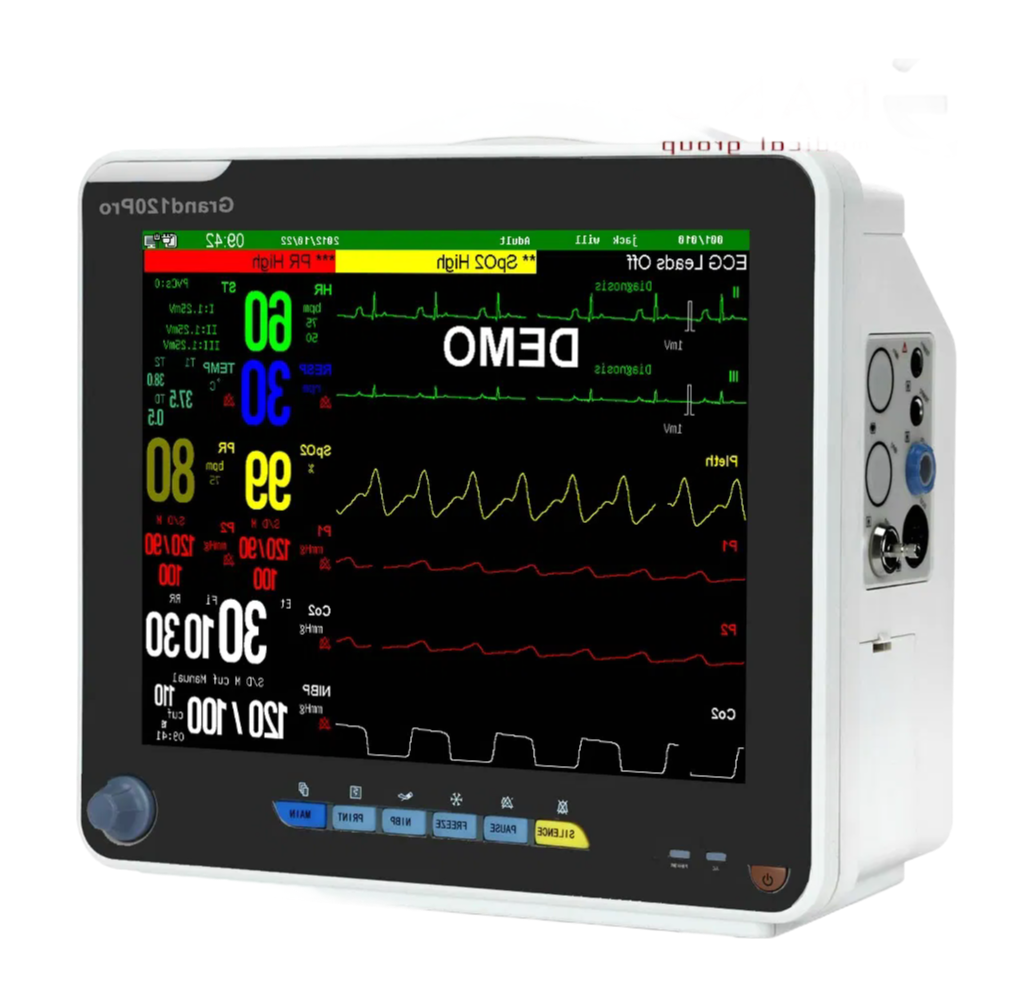

The Grand120 patient monitor is a comprehensive medical monitoring solution designed for hospital critical care units, operating rooms, and emergency departments. This advanced monitoring system provides accurate real-time measurements of multiple vital parameters to support patient care across all age groups.

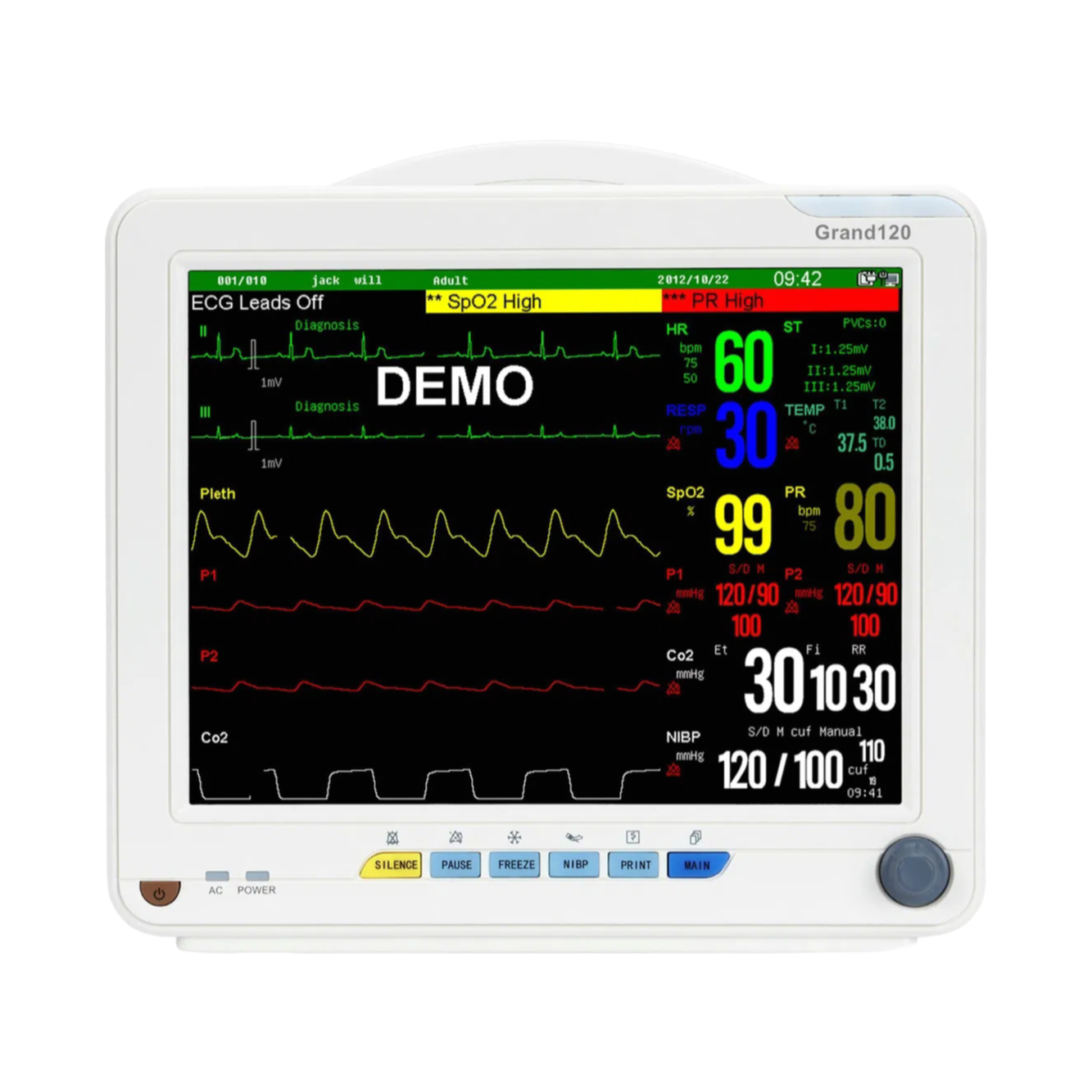

Featuring a 12.1-inch high-resolution TFT LCD touchscreen display with anti-glare technology, the monitor ensures clear visibility of patient data in various lighting conditions. The system simultaneously displays up to 9 waveforms, allowing medical professionals to monitor multiple parameters at a glance.
The standard configuration includes ECG monitoring with 12-lead display and analysis, non-invasive blood pressure measurement (NIBP), pulse oximetry (SpO2), respiration monitoring, and temperature measurement. Optional modules expand the capabilities to include invasive blood pressure monitoring (2 channels), capnometry (EtCO2), and cardiac output measurement.
Advanced features include arrhythmia analysis, S-T segment measurement, and comprehensive alarm systems with audible-visual alerts. The device offers extensive data storage capabilities, recording trends for all parameters over the last 2000 hours, 2000 NIBP measurements, and 2000 alarm events.
Designed for clinical flexibility, the monitor includes multiple connectivity options including Ethernet, USB, SD card, and optional Wi-Fi. The built-in 4400mAh lithium battery provides backup power during transport or power interruptions, while defibrillator protection ensures safe operation during emergency procedures.
The Grand120 is compatible with central monitoring systems, allowing for remote patient observation and data integration into hospital networks. Its ergonomic design and intuitive touchscreen interface facilitate efficient operation in demanding clinical environments.
