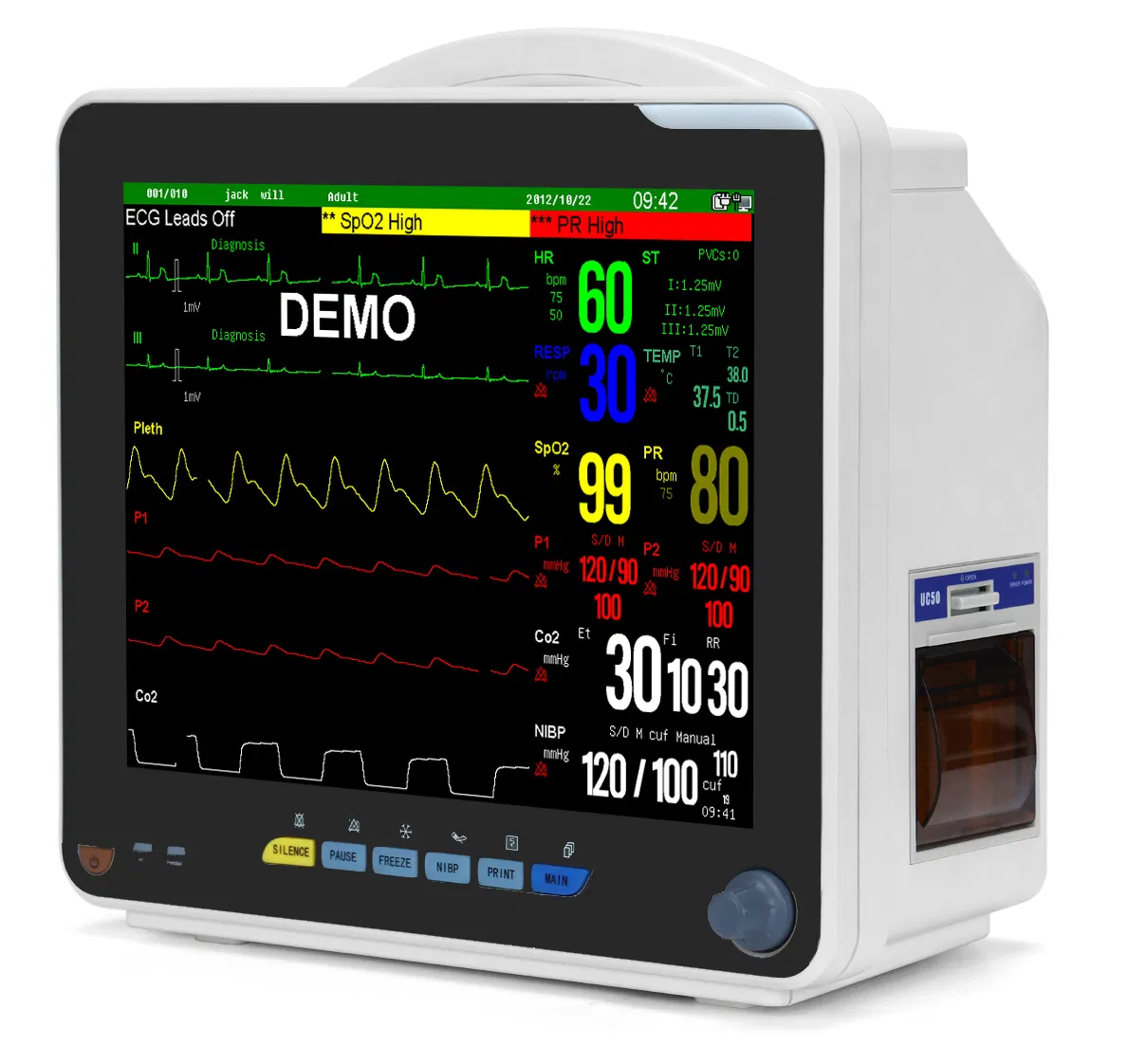

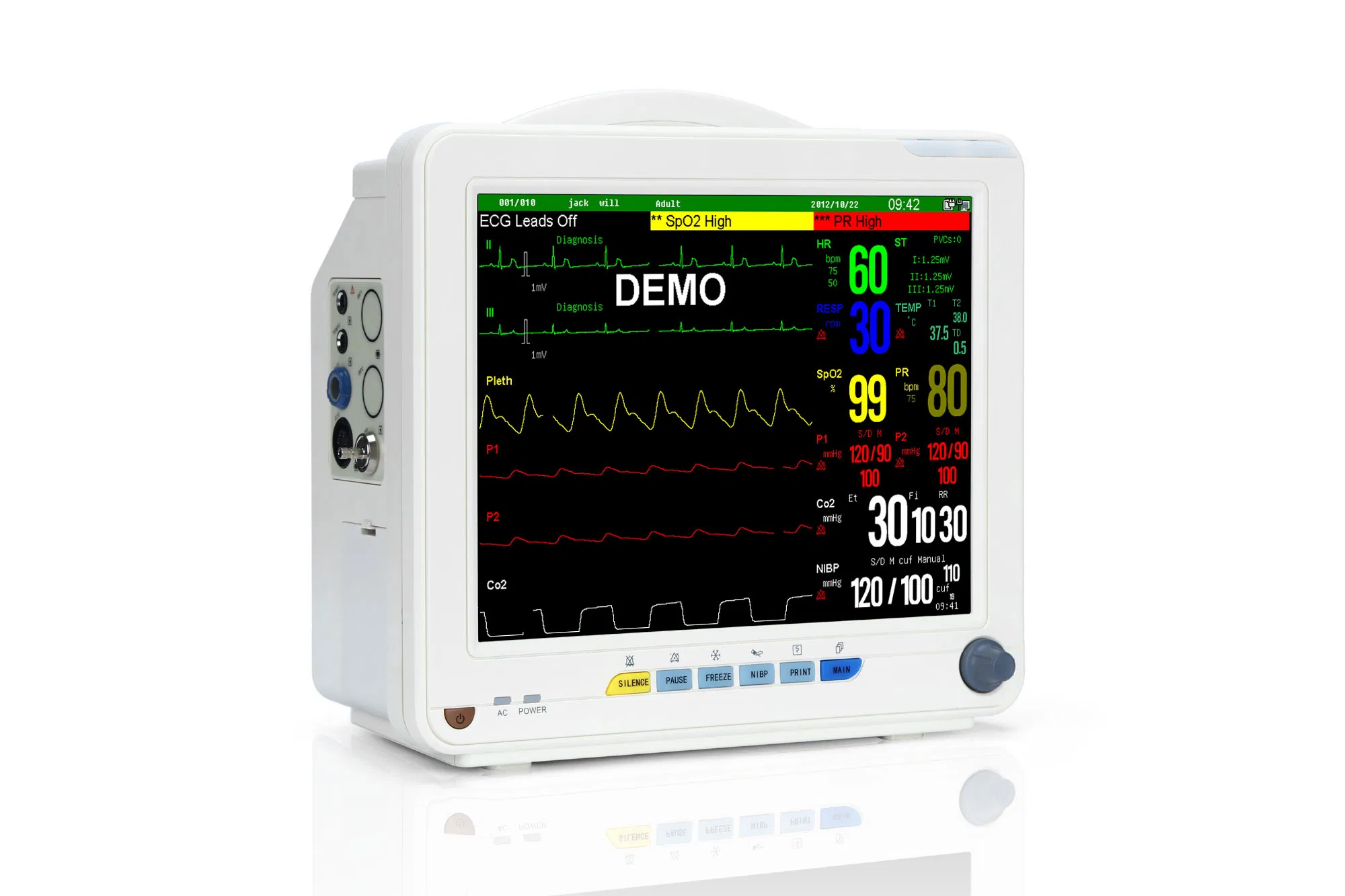

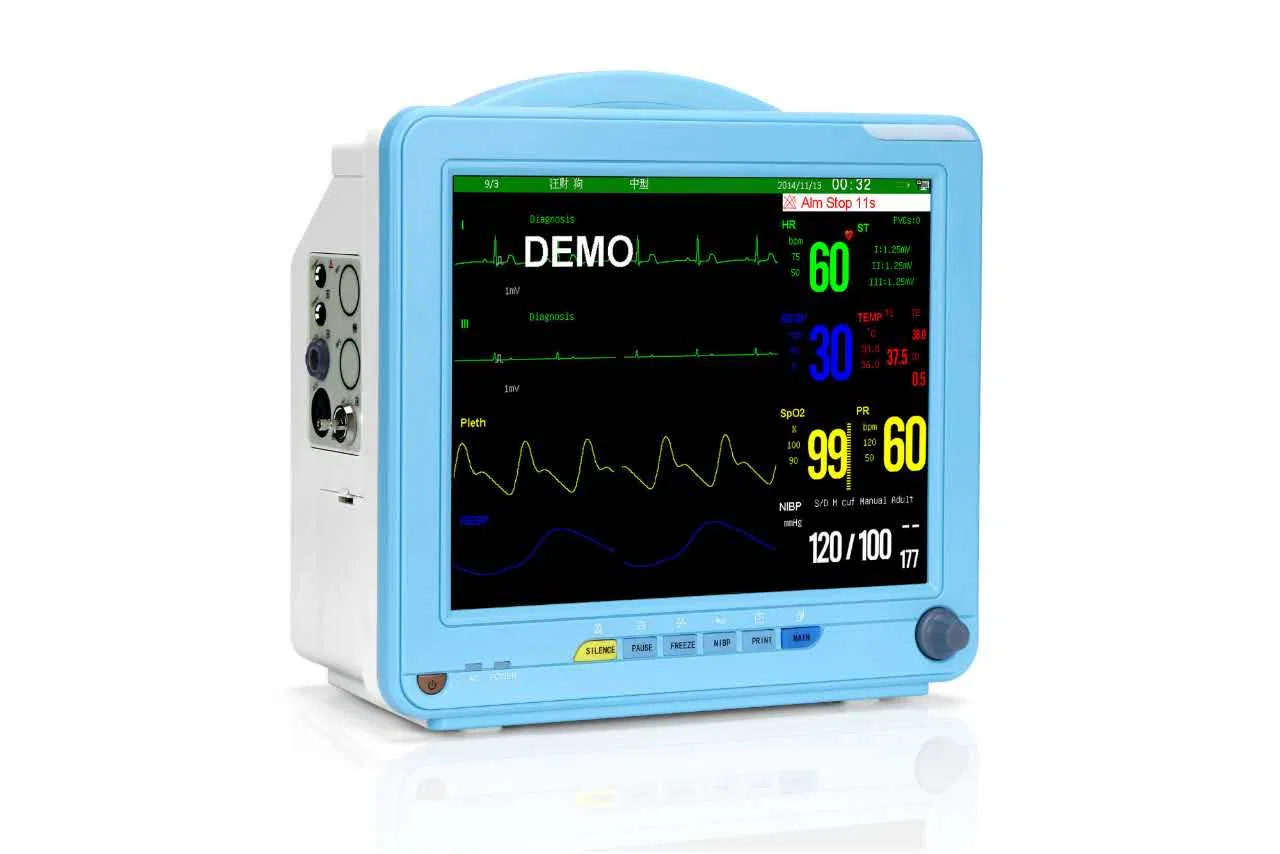

The SNP9000N multi-parameter patient monitor is a comprehensive medical monitoring solution designed for hospital and clinical environments. Featuring a 12.1" color TFT screen with 800×600 resolution, this monitor provides clear visualization of patient vital signs.
Standard monitoring parameters include 5-lead ECG/HR, non-invasive blood pressure (NIBP), pulse oximetry (SpO2), temperature (Temp.), and respiration (Resp.). The monitor offers optional expansion capabilities for 3/12-lead ECG, invasive blood pressure (IBP), end-tidal CO2 (ETCO2), and bispectral index (BIS) monitoring.
The device features multiple display modes including standard view, large font display, trend coexist display, and OxyCRG dynamic view. With built-in 8 languages and extensive data review capabilities (720h trends, 1000 NIBP records), the SNP9000N is suitable for global medical applications.
Advanced features include real-time S-T segment analysis, 20 types of arrhythmia analysis, drug dose calculation, and hemodynamic calculations. The monitor supports TCP/IP networking for central monitoring systems with optional WiFi connectivity.
The fanless design ensures quiet operation in clinical environments. With a rechargeable lithium battery providing 2 hours of continuous operation (4 hours optional), the monitor maintains functionality during patient transport.
Optional accessories include touch screen interface, printer, wall mount, VGA connection, and specialized SpO2 sensors compatible with Nellcor/Masimo technologies.
