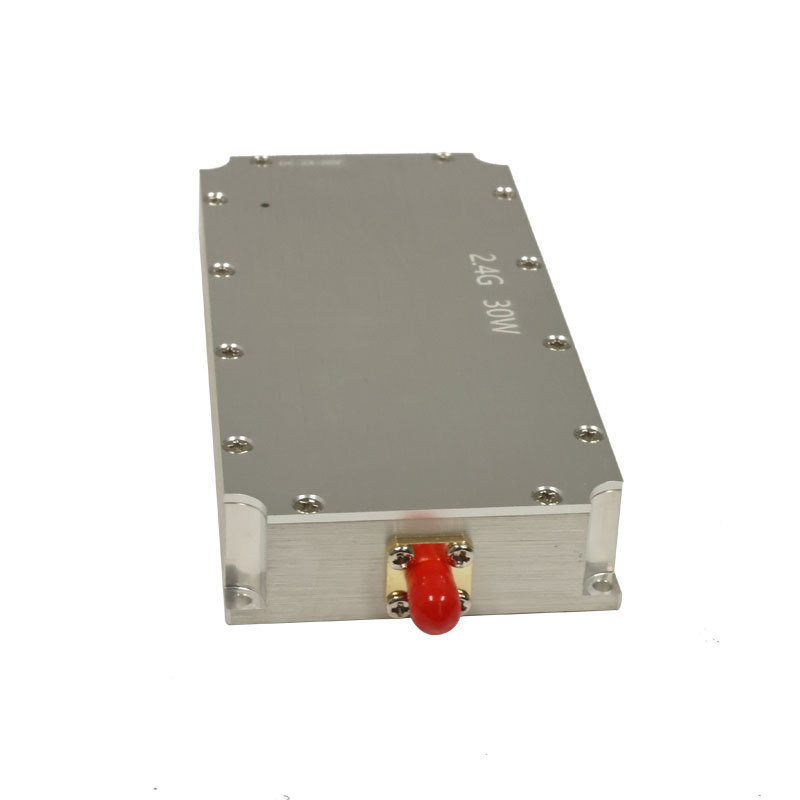

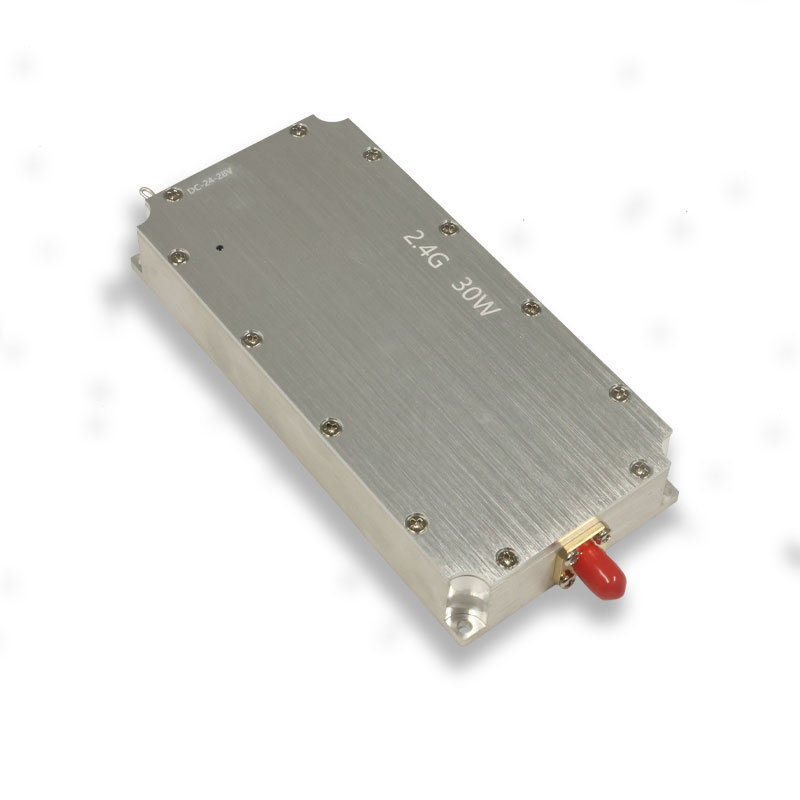

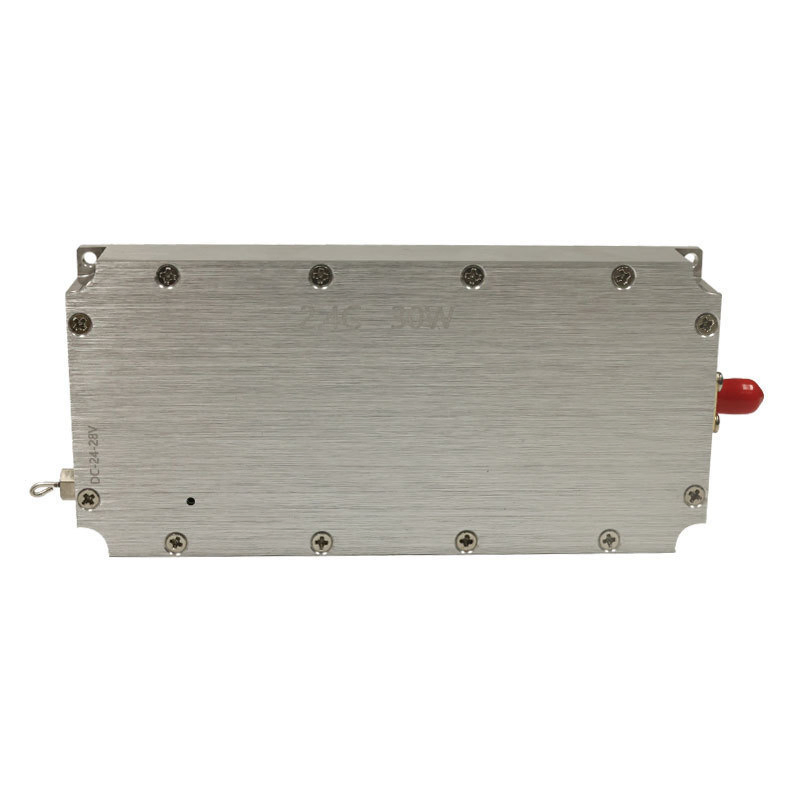

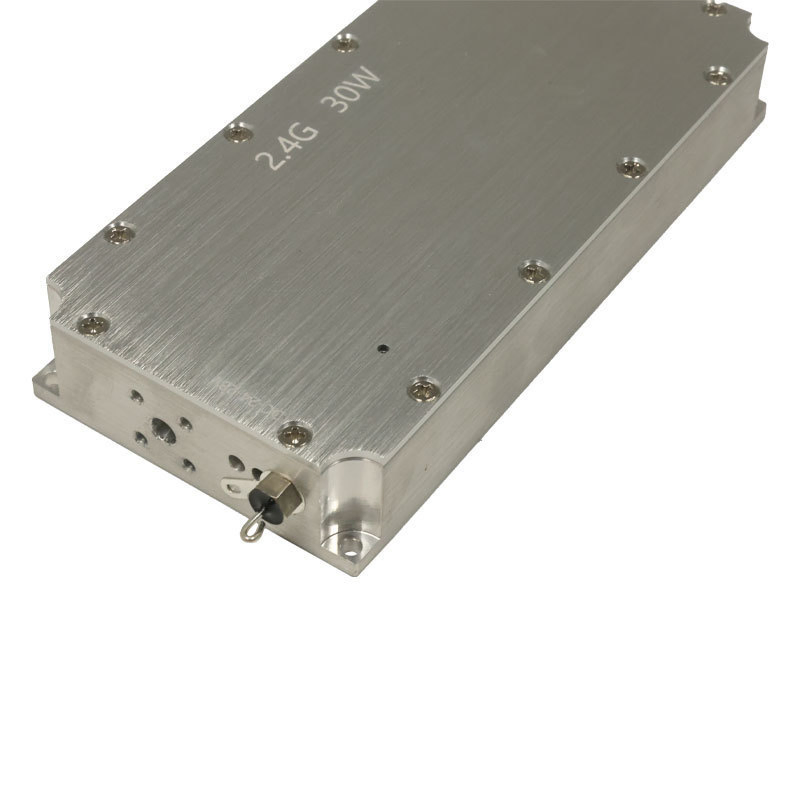

30W 2.4G Anti-Drone Signal Jammer Power Amplifier Module for UAV Defense System

We see a lot of these modules coming through for counter-UAV setups, and what usually makes this one worth sourcing is combination of that 30W output with teh ability to customize the sweep rate—it gives you leeway if you're dialing in a specific frequency enviroment.

It runs on 28V DC, but you’ve got a 24-30V range to play with, so a standerd power supply will work in most cases, and current draw sits at ≤4.2A, which is pretty manageable for a rack mount or field deployment.

The ripple is ≤3dB, which is tighter than some of the cheaper 2.4G amps we've handled, and that matters if you're trying to avoid bleeding into adjacent bands—though it’s not a precision lab instrument, it’s built for field jamming.

You can set the analog sweep form 50 to 300KHz; the standard is 120KHz, but we usually have stock of the customizable versions as well, so confirm lead time if you need something outside that default.

Documentation includes a COA and basic test data, but don’t expect a full spec sheet with every harmonic measured—what you get is what works for procurement and customs clearance, basically.

It ships in an anti-static bag with foam padding, and the 1-year manufacturing defects, but we’ve seen a few units with slightly off gain specs (45±1 dB is typical) so it’s worth checking the batch before full payment.
