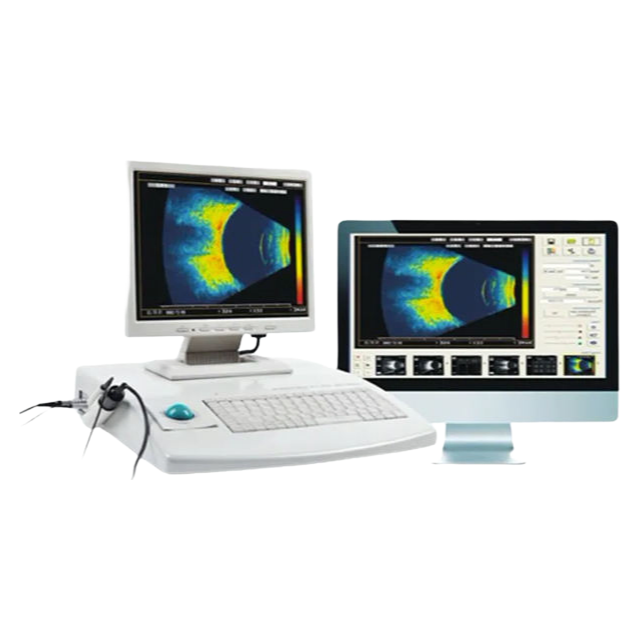

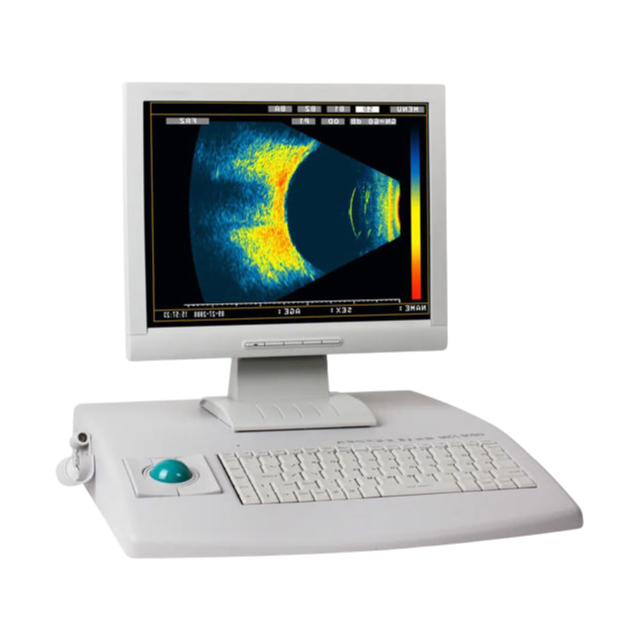

The ODM-2200 A/B Scan Ophthalmic Ultrasound Scanner is a high-performance diagnostic instrument designed for comprehensive eye examinations. This advanced equipment combines multiple scanning modes with superior image quality for accurate clinical assessments.
Featuring a 10MHz probe frequency and mechanical sector scan technology, the scanner delivers high-resolution images with axial resolution <0.2mm and lateral resolution <0.4mm. The 53-degree scanning angle provides wide coverage for thorough examinations.
The system offers multiple display modes including B, B+A, B+B, and A modes, with 8 color codes for enhanced visualization. The 15-inch LED display presents clear images with 256 gray scale levels, while the 6-step zoom function (34-60mm) allows for detailed examination of specific areas.
Advanced measurement capabilities include accurate axial measurement under B-mode, manual correction of axial measurement under A-mode, and various distance and area measurement functions. The system features 5 sections adjustable TGC (-30db-0db dynamic) and 6 points manually adjustable for optimal image quality.
The scanner includes practical features such as 8-image memory, 5.6-second cineloop function, and automatic probe protection that stops scanning after 10 minutes of continuous use. The trackball control ensures easy operation and precise measurements.
For research and documentation purposes, the system can save up to 50 groups of IOL calculation results and offers optional image output to video printers or workstations. The real-time clock ensures accurate time-stamping of all examinations.
This ophthalmic ultrasound scanner is designed for both contact and immersion measuring modes, making it versatile for various clinical applications. The system's post-processing capabilities include 4 groups of curves (Linear, Logarithmic, Exponential, S-curve) for enhanced image analysis.
