Anyway, if you're building a jammer rig for vehicle-mounted counter-drone work, you already know the power demands are brutal and space is tight.
It cranks out 50W to 70W across 400-2700MHz with 47dB gain and output stability within 1dB, which basically means it holds a tight signal under load—better than most amp modules we've handled for this.

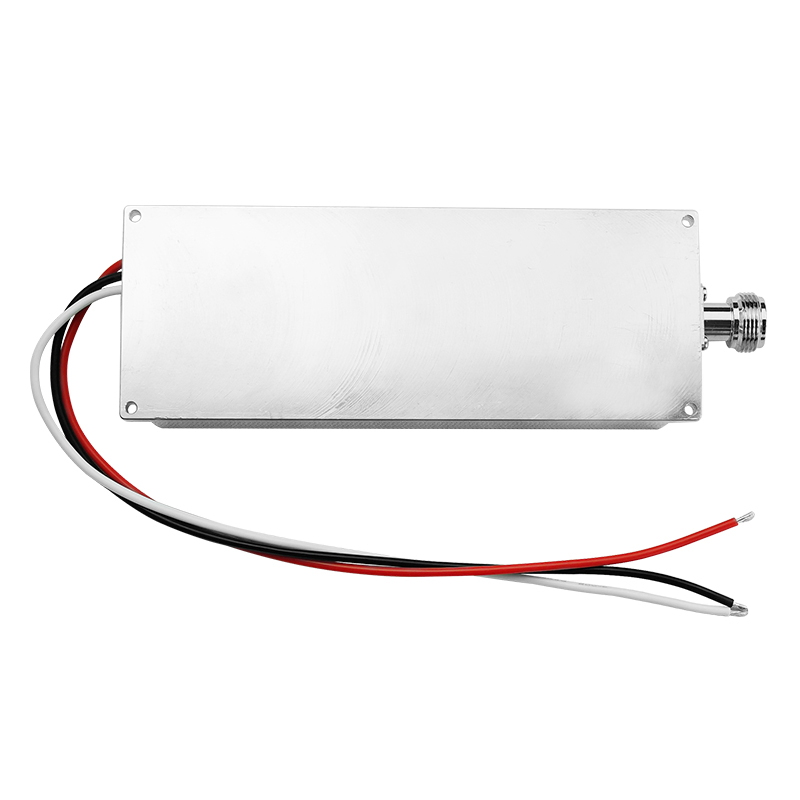

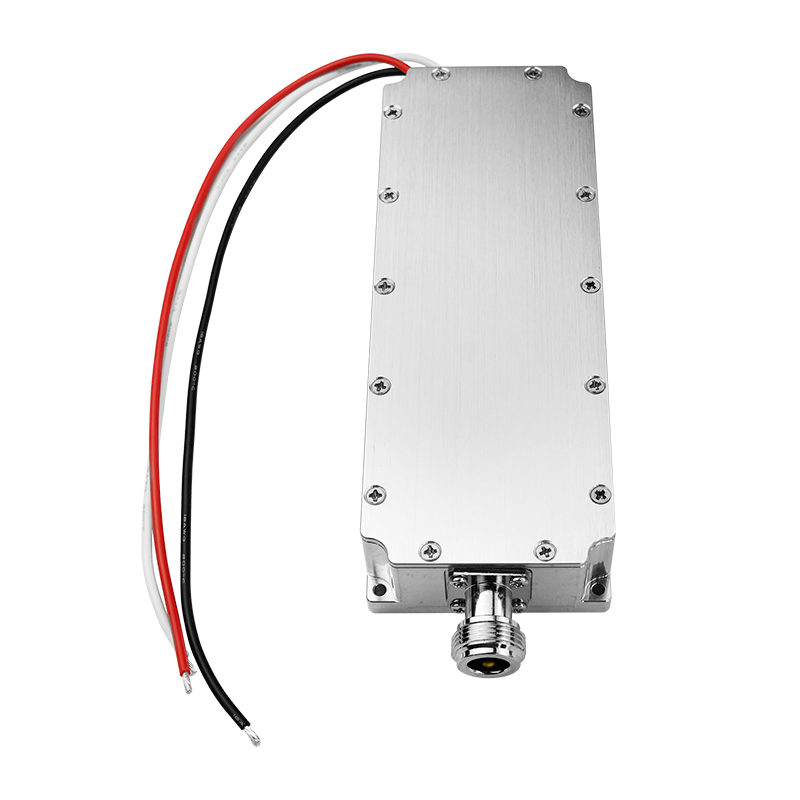

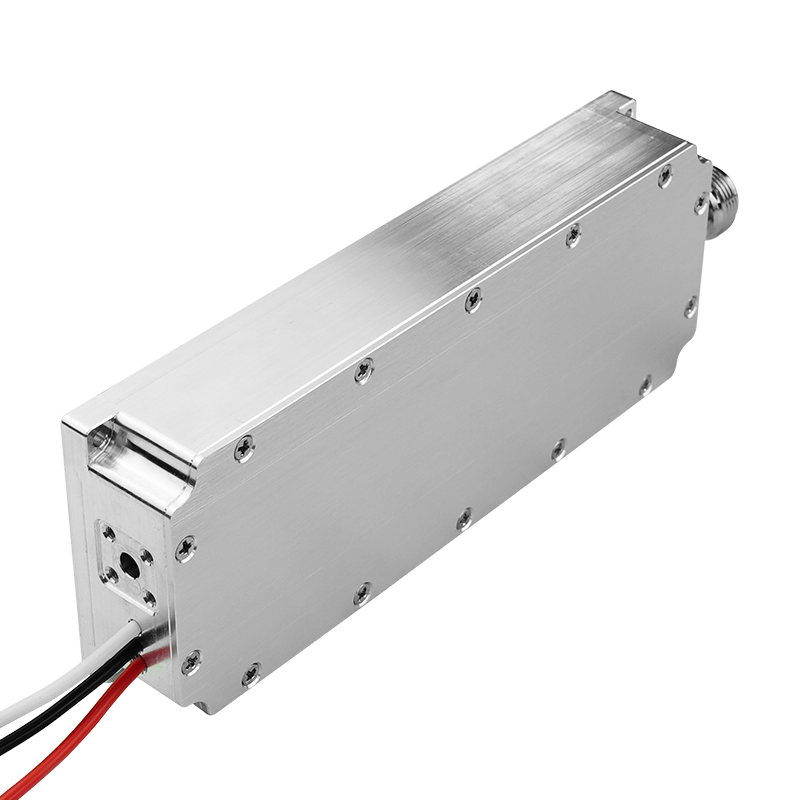

The aluminum shell takes the heat, but what you don't see is the vibration resistnce is actually tested for car mounting (usually shitty brackets and bumpy roads kill lesser modules). Suck, but it handles form -40°C to 65°C, so don't bother insulating for winter ops.

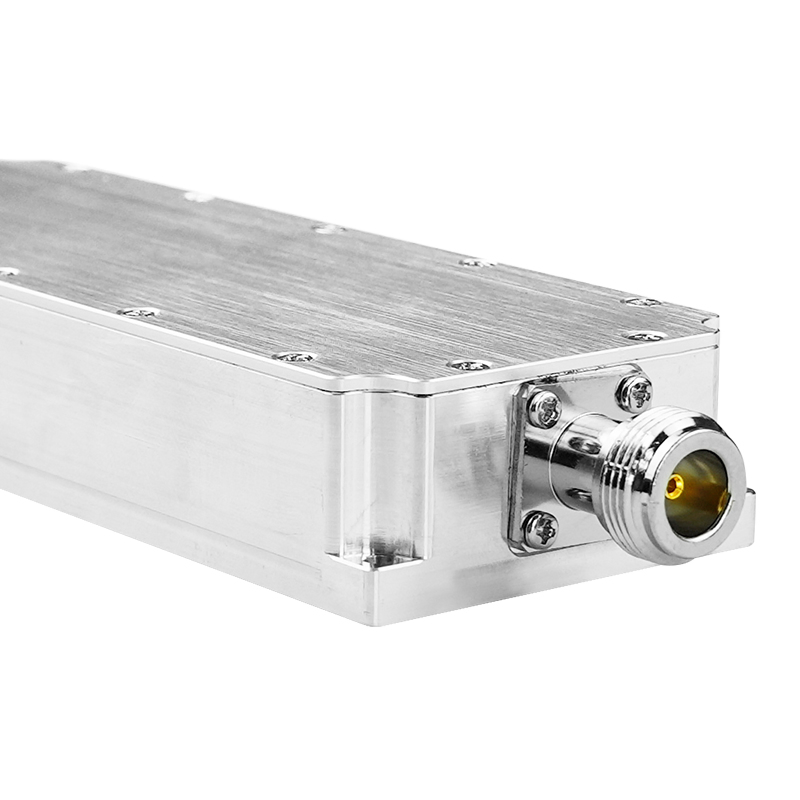

N Male connector standerd, 28V input draws about 4.2A, and the whole thing fits in 145×54×25mm at 396g—light enough for a backpack if you're not bolting it to a truck.
on the frequency spread: it covers 400-2700MHz, but you'll want to confirm teh band-splitting practicalities if you're targeting specific drone protocols (the 5.8GHz band isn't included, obviously, so a second module handles that).
You'll get module itself, (check lead time on the SMA adapter we usually include), and the COA covers HPLC purity testing on the reference sample if batch-matched.
We typically require a minimum order of 10 units for this specific module, but we can discuss smaller quantities for initial testing or sampling.
We can provide CE and RoHS certificates with the shipment. FCC certification is not standard, but we can work on it if your order volume justifies the process.
Yes, we can adjust the frequency range or tune it to specific bands like 2.4GHz or 5.8GHz for your application. Customization may affect lead time slightly.
Stock orders ship within 7-10 business days. For custom frequency configurations or larger quantities, lead time is typically 3-4 weeks.
The high gain ensures strong signal jamming over distance, while the 1dB stability keeps output consistent even with vehicle vibrations or temperature changes. It's built for mobile use.
