Professional Semi-Auto Chemistry Analyzer with 7-Wavelength Filter System Professional Semi-Auto Chemistry Analyzer with 7-Wavelength Filter System
Professional Semi-Auto Chemistry Analyzer with 7-Wavelength Filter System Professional Semi-Auto Chemistry Analyzer with 7-Wavelength Filter System
Professional Semi-Auto Chemistry Analyzer with 7-Wavelength Filter System Professional Semi-Auto Chemistry Analyzer with 7-Wavelength Filter System

Professional Semi-Auto Chemistry Analyzer with 7-Wavelength Filter System

US$ 300.00 ~ 500.00
Min.Order: 1
Product origin: Jinan, Shandong, China
Category: Medical Equipment
Product Name: Medical Equipment
Availability:In Stock
Product Review : 0 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model : BIOBASE-Claire
  • Type : Semi-Auto Biochemistry Analyzer
  • Reading Cuvette : Quartz Cuvette
  • Light Source : 6V,10W Halogen Lamp
  • Wavelength Range : 340-630nm (7 filters + 2 open positions)
  • Wavelength Accuracy : ±2nm
  • Measuring Range : 0-3.500 O.D.
  • Photometric Accuracy : ±2% (0-2.500 O.D.)
  • Photometric Linearity : ±2% (0-2.500 O.D.)
  • Drift : <0.005 O.D.
  • Printer : Built-in Thermal Printer
  • Memory Capacity : 144 test programs, 5600 results
  • Interfaces : RS-232, USB
  • Power Supply : AC110/220V±10%, 50/60Hz
  • Dimensions : 400×380×190mm (W×D×H)
  • Weight : 11kg

The BIOBASE-Claire Semi-Auto Biochemistry Analyzer is a professional medical diagnostic instrument designed for clinical laboratories and research facilities. This advanced analyzer combines precision optical technology with user-friendly operation for reliable test results.

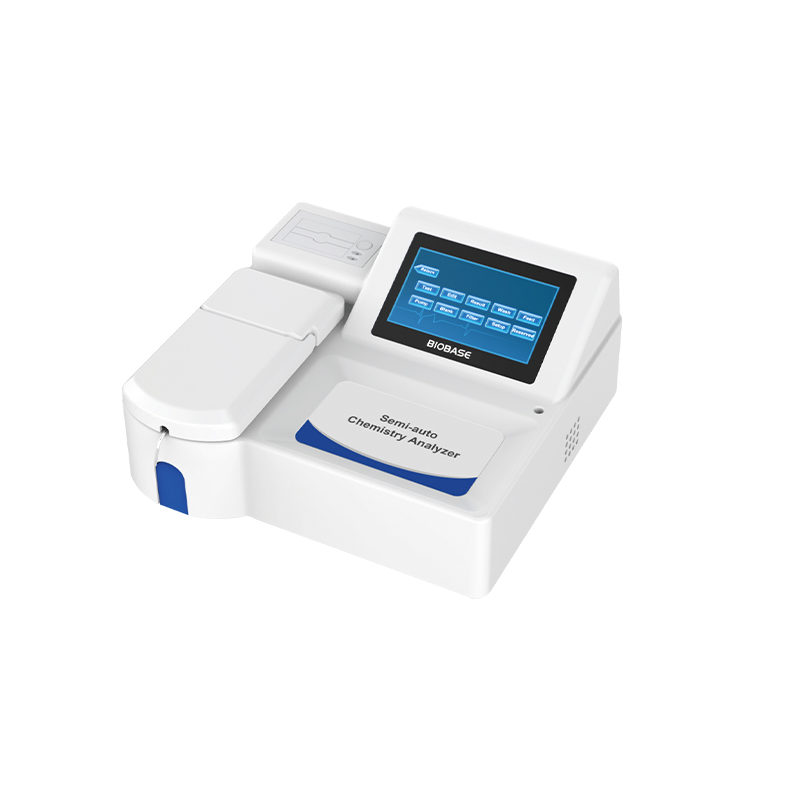

BIOBASE-Claire Biochemistry Analyzer

The analyzer features a high-quality quartz cuvette measurement system with excellent photometric accuracy (±2%) across a wide measuring range of 0-3.500 O.D. The optical system utilizes a 6V,10W long-life halogen lamp and includes seven standard wavelength filters (340/405/450/510/546/578/630nm) plus two open filter positions for versatile testing capabilities.

Biochemistry Analyzer Display

Key features include a large touch screen display for easy operation, built-in thermal printer for immediate result output, and comprehensive memory storage for 144 test programs and 5600 testing results. The analyzer supports multiple measurement methods including end point, kinetic, fixed time, and rate analysis.

The system includes excellent quality control functions with storage and display of Q.C. charts, plus real-time graphing capability. With RS-232 and USB interfaces, the analyzer easily connects to laboratory information systems for efficient data management.

Biochemistry Analyzer Internal View

This compact analyzer (400×380×190mm) is designed for reliable performance in clinical settings, featuring low drift (<0.005 O.D.) and stable operation with AC110/220V±10% power input. The robust construction ensures durability while maintaining precision measurement capabilities.
