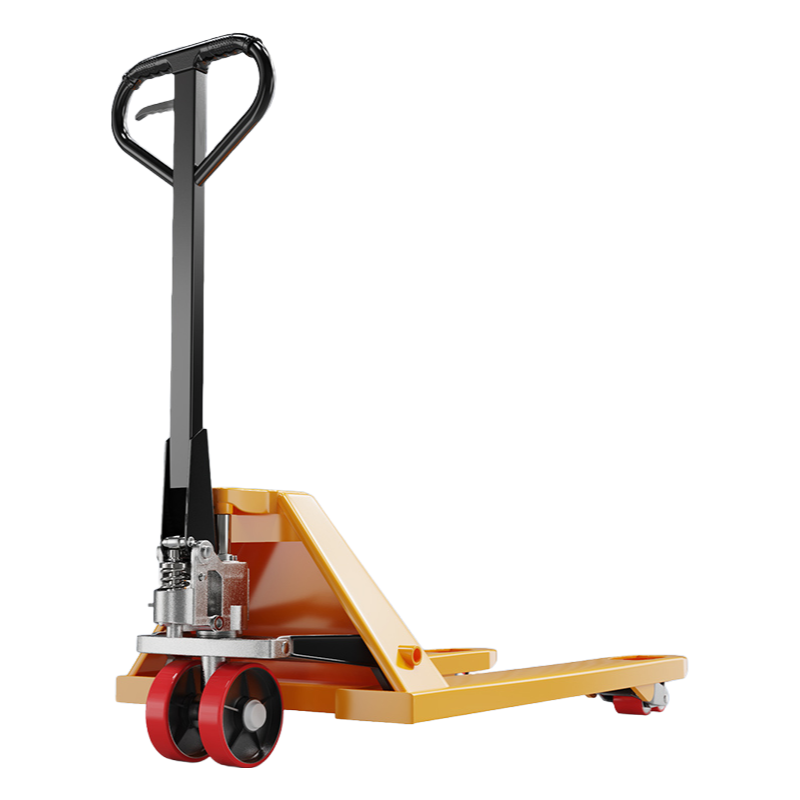

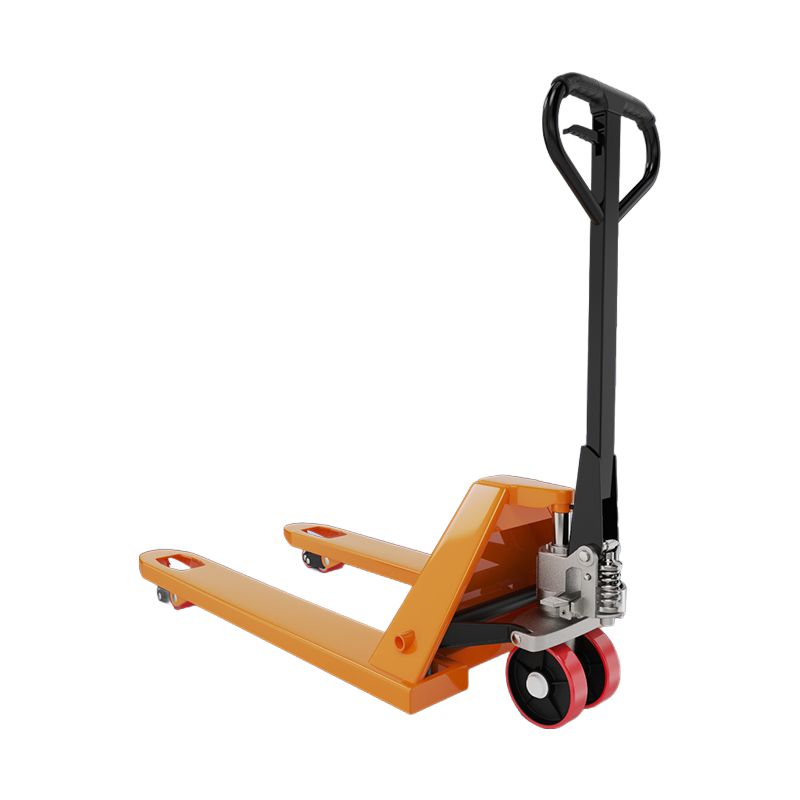

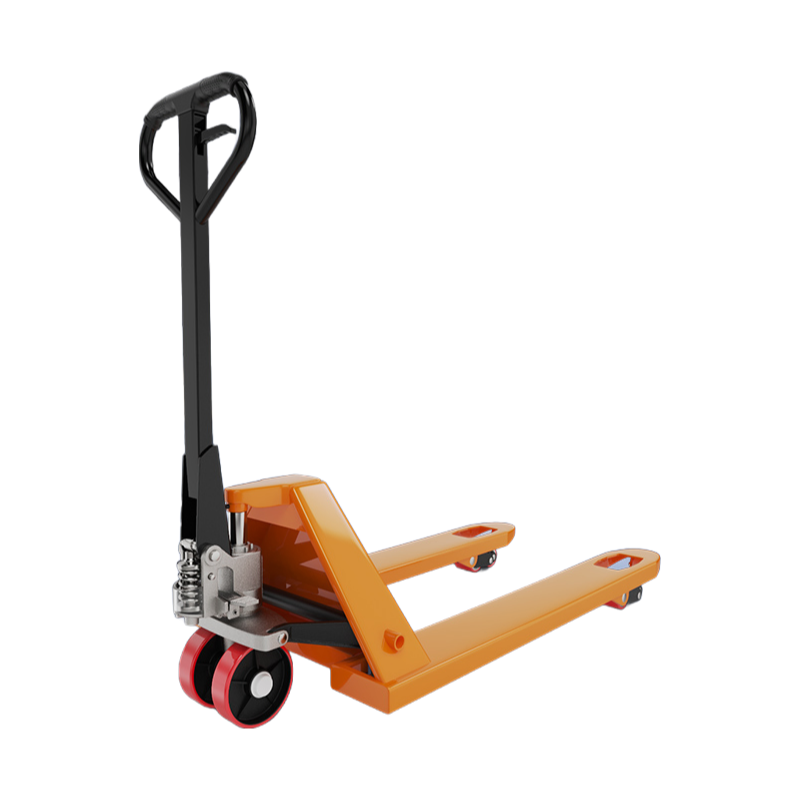

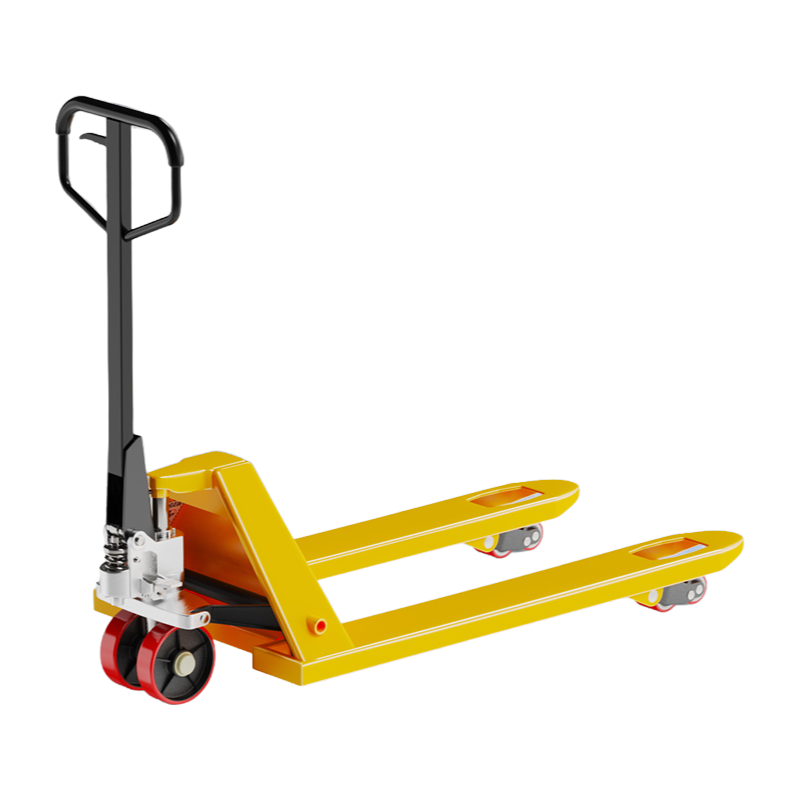

So the one you're asking about is the standard manual pallet jack we supply to warehouses—basically the same design most of the market uses, but we've tinkered with the fork reinforcement a bit to handle heavier loads better over time.
Load capacity ranges from 2 tons up to 5 tons depending on the frame, with a load center of 500mm, lift height form 80mm to 195mm, and turning radius from about 1249mm to 1319mm—that shorter turning one is popular for tight-aisle setups, but the 5-ton model obviously requires more space to maneuver.
3, we use manganese steel for the forks at 4mm thickness, with a multi-layer reinforced rib structure that a lot of guys don't think to ask about but it prevents the fork depression you sometimes see after a year or so with cheaper units, and the AC oil pump is a sealed unit—no welding joints means fewer leak points, which is one of those details that matters when you're running them daily.
These work fine for moving pallets on concrete or smooth asphalt, but honestly they're not great for outdoor gravel lots or uneven ground because the PU wheels (or nylon, your choice) don't grip well there—most buyers go with the nylon wheels for warehouse floors since they roll easier and shed debris.
Lead time is usually 20 days or so for standdard specs, but if you want OEM work like your logo or a specific color that'll add maybe a week—bulk pricing kicks in around 50 units or so, and we can get you a COA with each batch if that's required; just confirm teh wheel type when ordering because the 5-ton model comes with heavier-duty forks that shift the weight to about 76kg net.
We offer load capacities of 2t, 2.5t, 3t, and 5t. Yes, every model includes the overload valve as standard to prevent lifting beyond its rated capacity.
For OEM orders with custom logo, label, or color, the typical lead time is 15-20 working days. The minimum order quantity is generally 50 units, but we can discuss smaller quantities depending on the specifics.
Yes, every pallet jack comes with a CE certificate. We can also provide a packing list, inspection report, and other documents you need for customs clearance.
The forks are made from 4mm thick manganese steel. That combination gives you a high strength-to-weight ratio, so the jack handles heavy loads without bending, and it's more resistant to wear than standard steel.
Store it in a dry area with the forks lowered to the ground to relieve hydraulic pressure. Before storing for a while, just wipe down the forks and pump rod, and check the oil level—no special prep needed beyond that.
