The smaller 45-ton units usually run around $12,000 to $15,000 for a single unit at sample pricing, but once you're looking at mid-volume orders of 5-10 units, that drops to about $10,500 each—bulk pricing for 20+ can get you under $9,000 per jack, and that's where the real cost-effectiveness kicks in.
We've seen buyers try to save by using standerd jacks with manual controls, but what happens is they end up spending more on labor and downtime because you can't get that precise multi-point lift without the synchronization module, and frankly, trying to coordinate three or more jacks by hand is a nightmare—basically, intelligent control system here handles all of that automatically, keeping accuracy within a few millimeters across all points, which is tighter than you'd get with any mechanical setup.

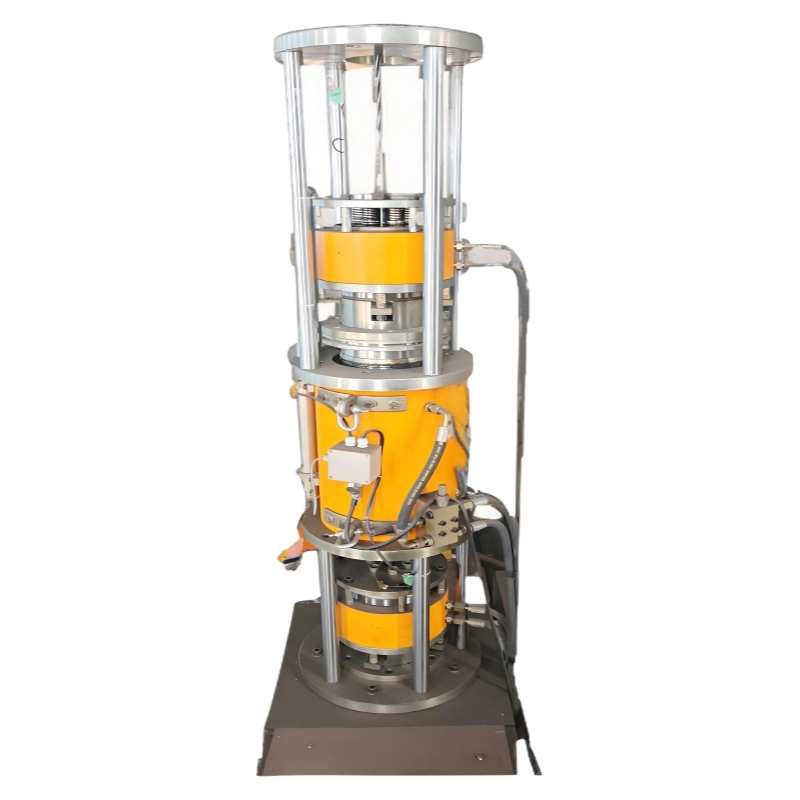

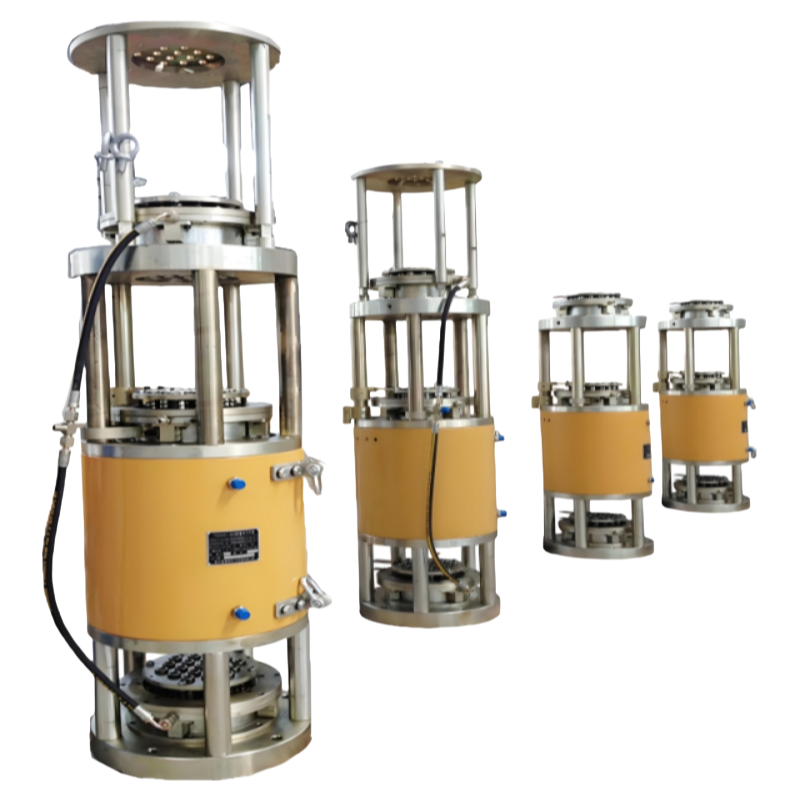

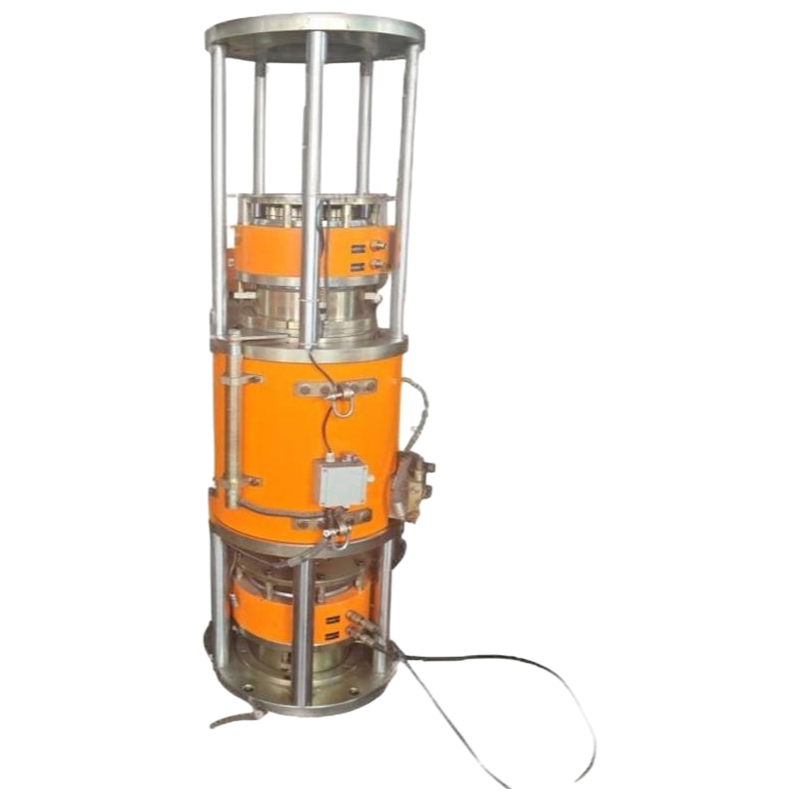

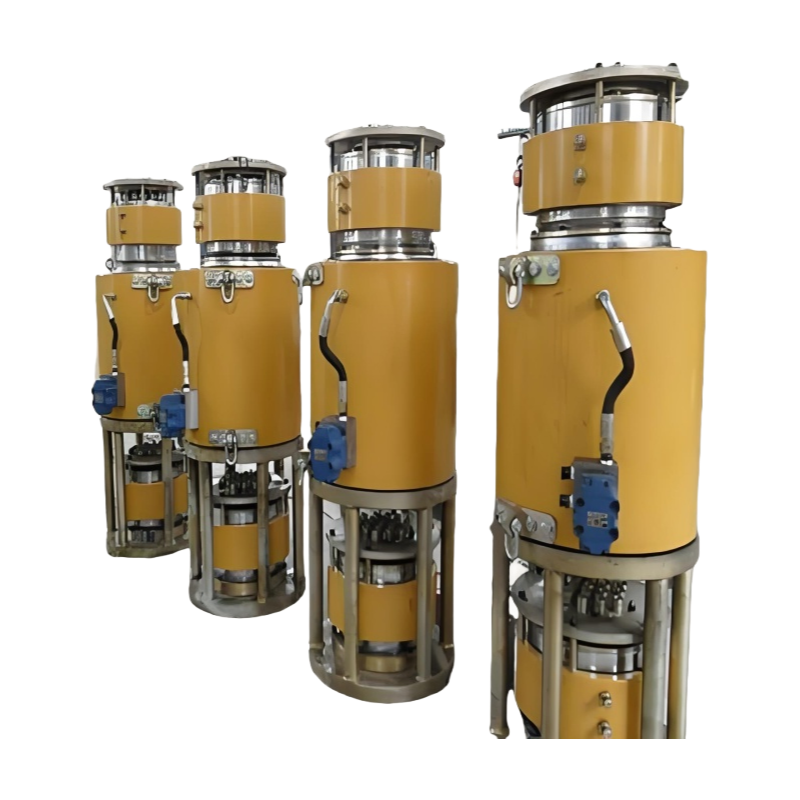

And the 31.5MPa working presure is what lets you lift those 300-ton loads without the jack straining, so you're not pushing the equipment to its limit every time you use it, and that extends the service life considerably—most of our clients who buy the TSD series get 8-10 years of regular use before needing a rebuild.
Now, the weight on these things ranges from 266kg for the small ones up to 2460kg for the big 300-ton units, so you'll need a forklift or crane to handle insallation, but the 1726-1940mm retraction height means you can fit them under most equipment without digging a pit or modifying teh floor—the 500mm stroke is usually enough for industrial lifts unless you're raising something unusually tall.
You should know these aren't suited for outdoor rough terrain jobs where you'd be lifting on uneven ground every day—they're designed for controlled factory or warehouse environments where the floor is level and clean, and we usually recommend a concrete base with anchor bolts for permanent installations (check your local building codes first).
One thing buyers don't always think about is the strand count—the 18mm diameter strands work in bundles of 3 to 20, and that directly affects both lifting speed and safety margin, so a 12-strand setup gives you about 180 tons capacity at half the max speed of 25m/h, which is pretty much the sweet spot for most industrial equipment installations.
Our MOQ is typically 1 unit for the smaller capacities, though we can discuss bulk orders if you need multiple jacks for a project.
We provide a CE certificate and a full test report with each unit, including proof of the overload protection valve calibration.
Lead time is usually 4-6 weeks for standard 300-ton models, depending on stock and customization requests.
Yes, we can adjust the stroke length on request, but it will affect the retraction height and weight—just let us know your specs.
Each jack is packed in a reinforced wooden crate with rust-proofing treatment, and we recommend storing them indoors in a dry environment below 40°C.
