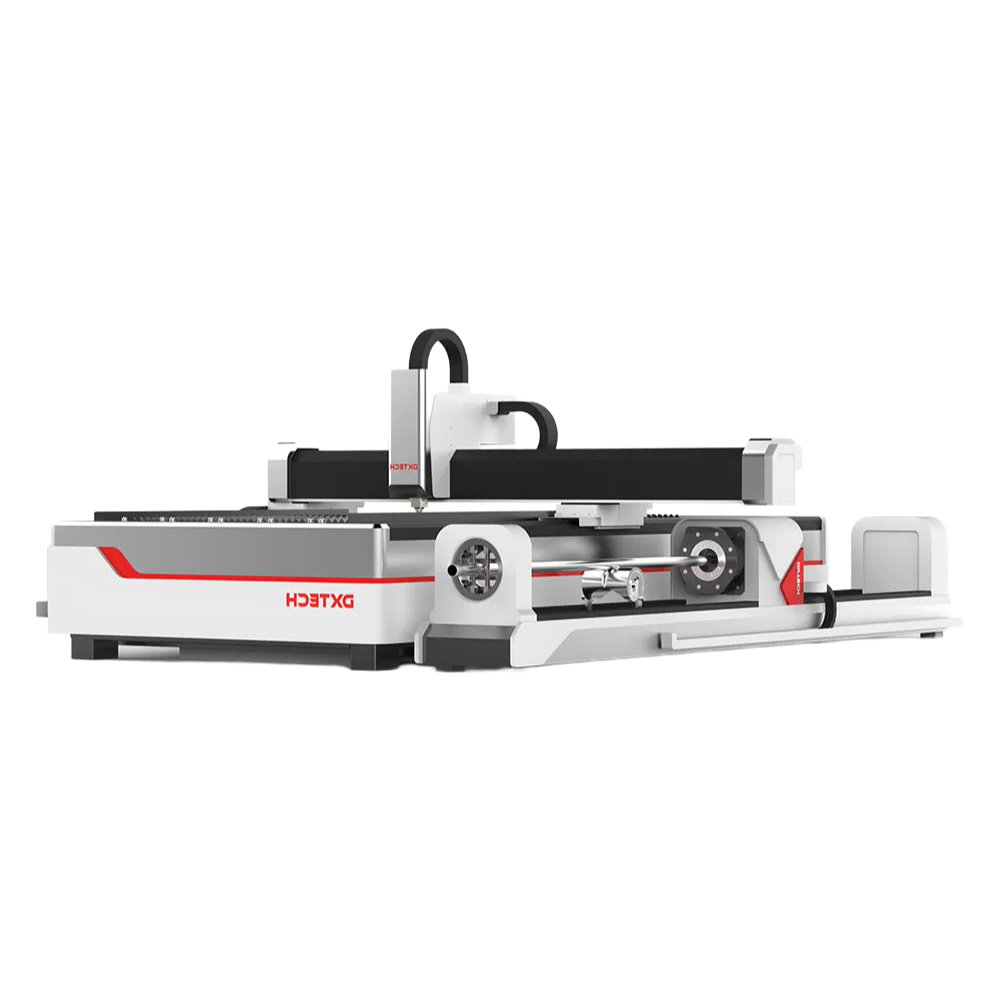

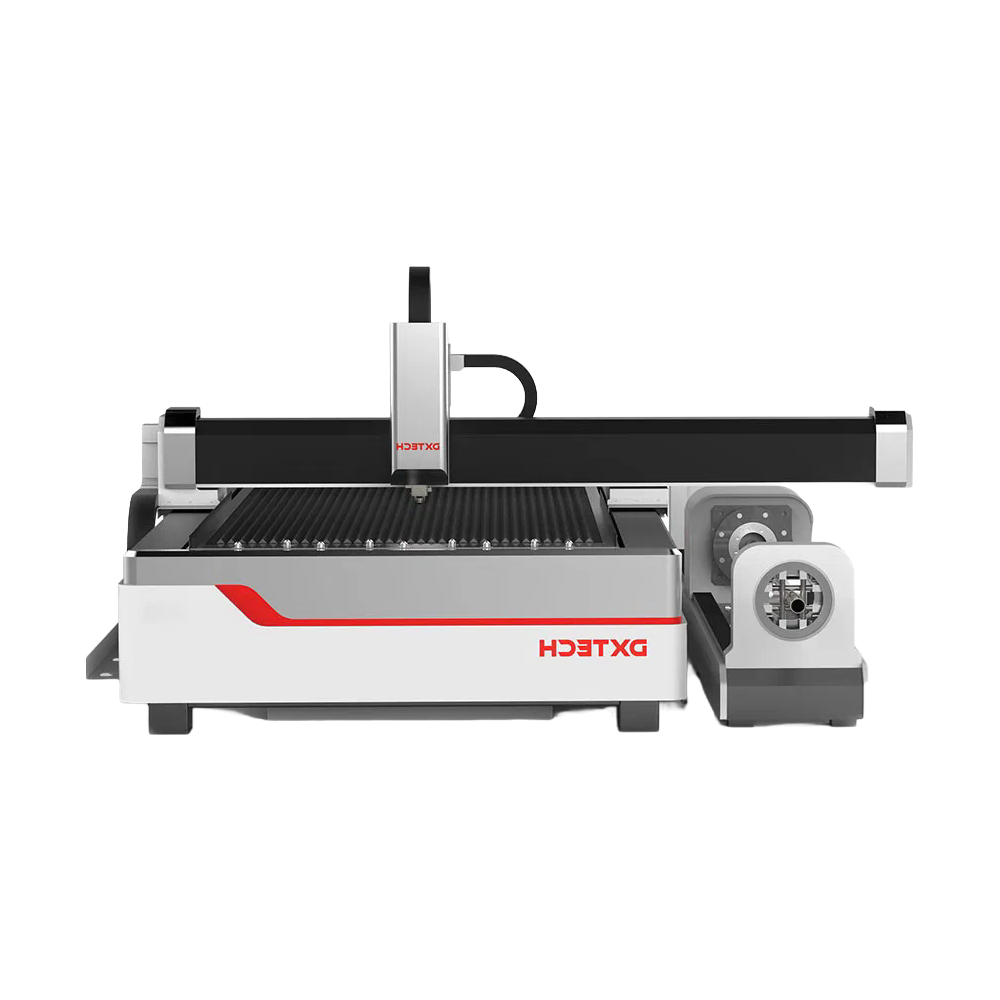

One of our guys was running a job with mixed 20mm tube and 6mm sheet, switching between them on the fly, and the DXTECH 3015FT just handled it without any rejigging — it's pretty much a set-and-forget setup for those combo runs, though you do need to dial in gas presure if you're jumping between stainlss and mild steel.
Working area is the standdard 3000x1500mm, and you're looking at positioning accuracy within ±0.03mm with repositioning at ±0.02mm, which for most jobs is better than you actually need, but it's a nice safety margin when you're pushing thin-gauge parts, and the top speed of 120m/min with 1.5G acceleration means it's not holding up your throughput even on complex nests.
We've got a 2000W Raycus unit in house, and it'll slice through up to 50mm on good day, but honestly for anything over 25mm in carbon steel you're going to want to slow down the feed rate or consider a higher power option — the 3000W is better suited for those thick plate runs, and the water cooling keeps it stable even after a full shift of continuous.
The Cypcut software takes about a day to get comfortable with, and the Schneider electricals are solid, but the real thing is the 1-year the laser source and servo motors (Yaskawa or Fuji, your pick), and we got our unit delivered within six weeks or so.
Lead time is usually 30-45 days depending on the power option and whether they have the specific Raycus or IPG generator in stock, but we confirmed COA and CE certs before shiping, so no surprises on the paperwork side.
Anyway, the 3015FT isn't great for ultra-thin foils below 0.5mm — the beam can warp them — but for standard tube and plate work, it's a solid workhorse that most operators can run after a few shifts.
The machine comes in 1000W, 2000W, or 3000W configurations. The 3000W version can cut up to 50mm thick metal, while lower wattages handle thinner materials—just let your supplier know your typical material and thickness when ordering.
Yes, you can choose between Yaskawa or Fuji servo motors and Raycus, IPG, or MAX laser generators. Just specify your preferred brand when placing the order, and we'll set it up accordingly.
The DXTECH-3015FT is CE and ISO certified. We'll supply the certificates with the shipment, so you're covered for most import customs requirements.
MOQ is 1 unit. Lead time is usually 30-45 days depending on stock and customization options—we'll confirm the exact timeline when you place the order.
Keep it in a dry, dust-free environment with stable temperature. The water cooling system should be drained if temperatures might drop below freezing to prevent damage.
