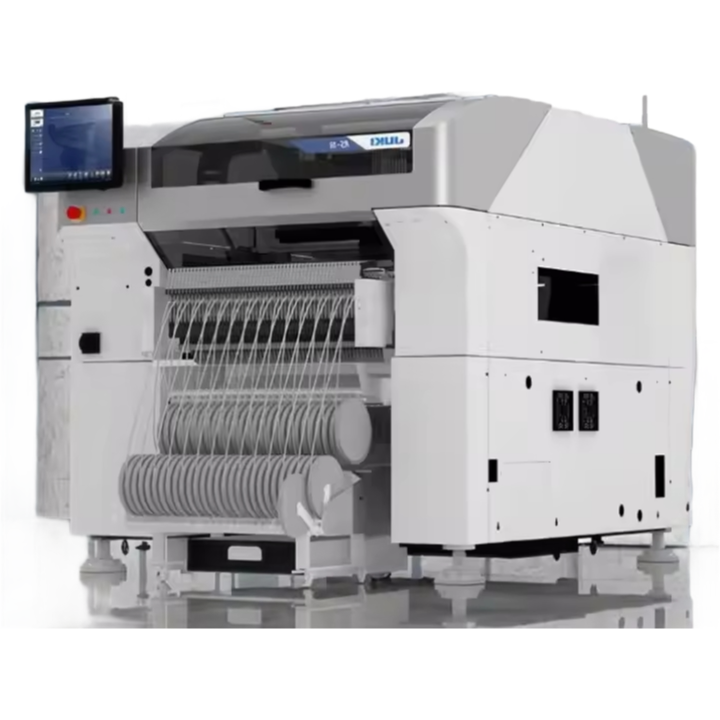

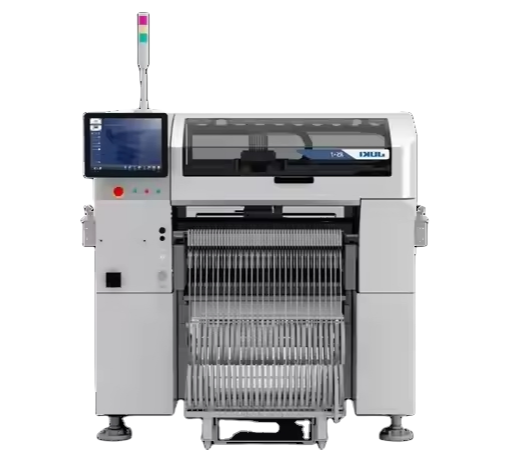

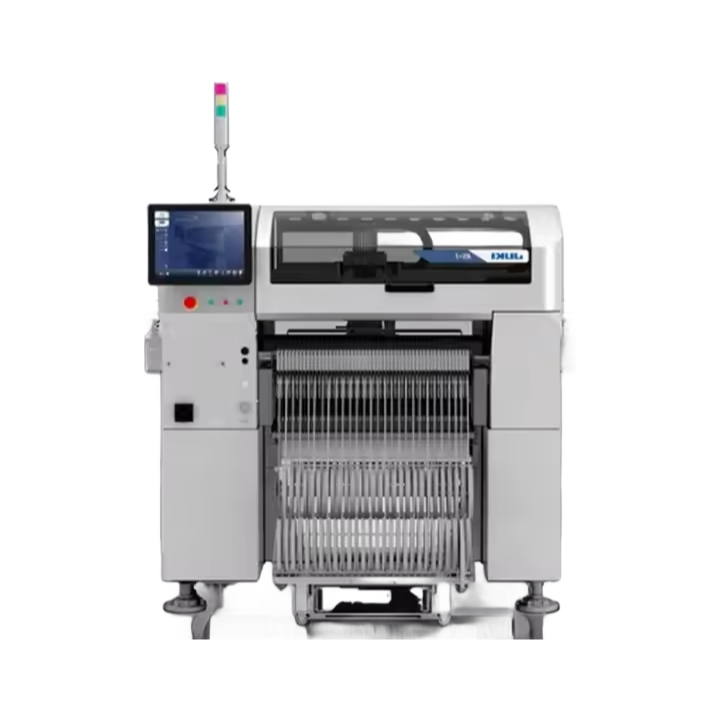

Precision SMT Chip Mounter JUKI RS-1R 47000CPH for LED and IC Component Placement

The JUKI RS-1R is a cutting-edge high-speed chip mounter designed for precision placement in SMT production lines. With a remarkable speed of up to 47,000 components per hour (CPH), this machine sets new standards in electronic assembly efficiency.

Key features include the revolutionary Takumi smart head that automatically optimizes its height across six positions based on component requirements, ensuring minimal travel time and maximum placement accuracy. The self-optimizing design eliminates the need for head replacement when changing production requirements.

The RS-1R handles an impressive component range from tiny 0201 metric chips to large connectors and ICs measuring up to 74mm square or 50x150mm rectangular parts, with a maximum component height of 25mm. This versatility makes it ideal for diverse production needs.

For LED production, the machine offers exceptional precision in placing diffusion lenses, supporting both vision and laser centering methods depending on component specifications. The placement area accommodates PCBs up to 650x370mm with single clamping, extendable to 950x370mm with dual clamping or 1200x370mm with optional conveyor extensions.

The feeder system supports either 56 or 112 units, providing flexibility for various production scales. Core components including PLC, high-quality bearings, precision motors, gears, and pumps ensure reliable long-term operation.

With certifications including RoHS, ISO, and CE compliance, the JUKI RS-1R meets international quality and safety standards. The machine comes with a 12-month warranty and optional on-site installation services.
