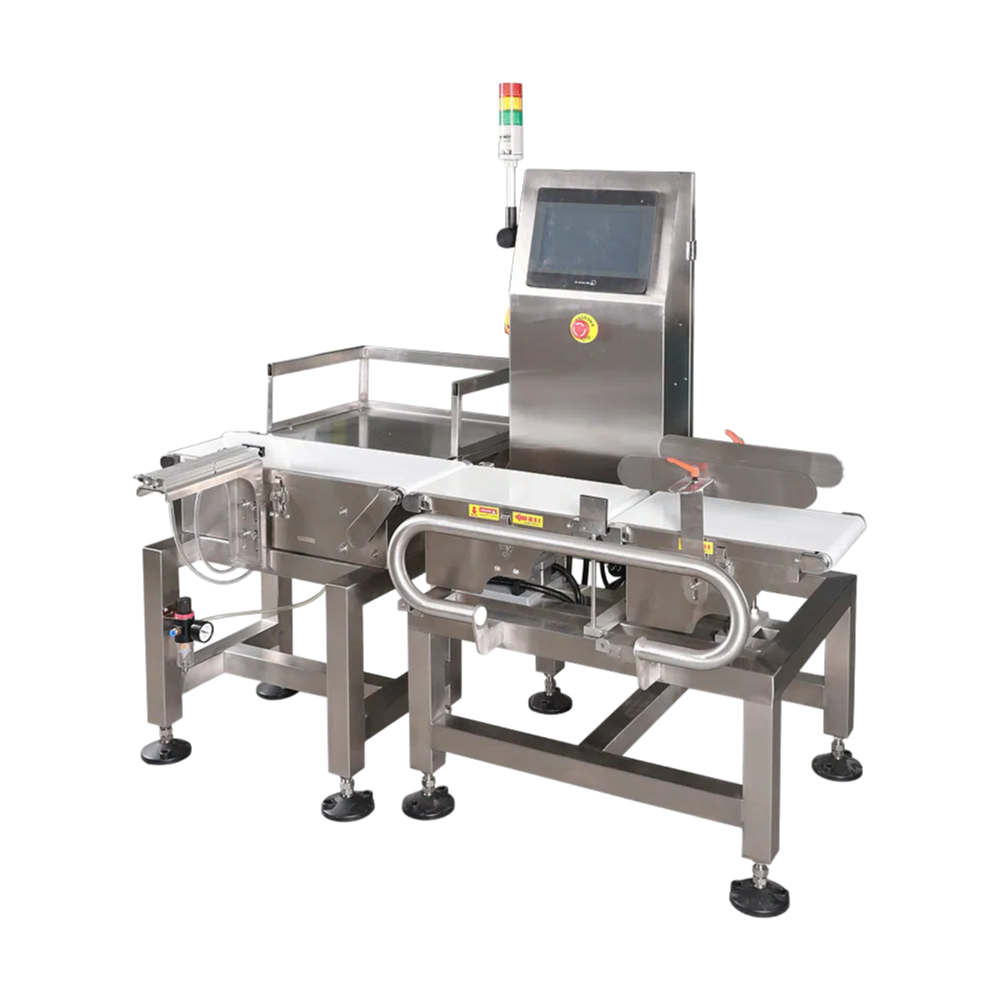

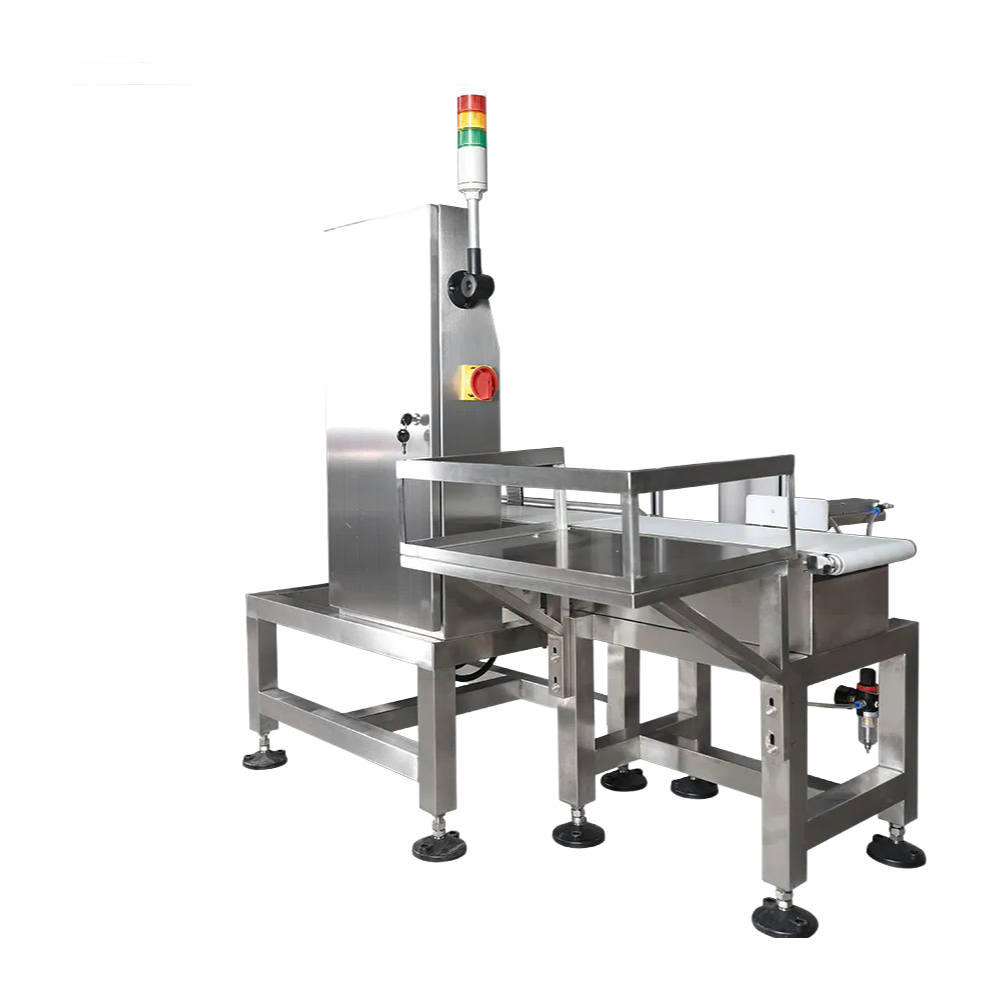

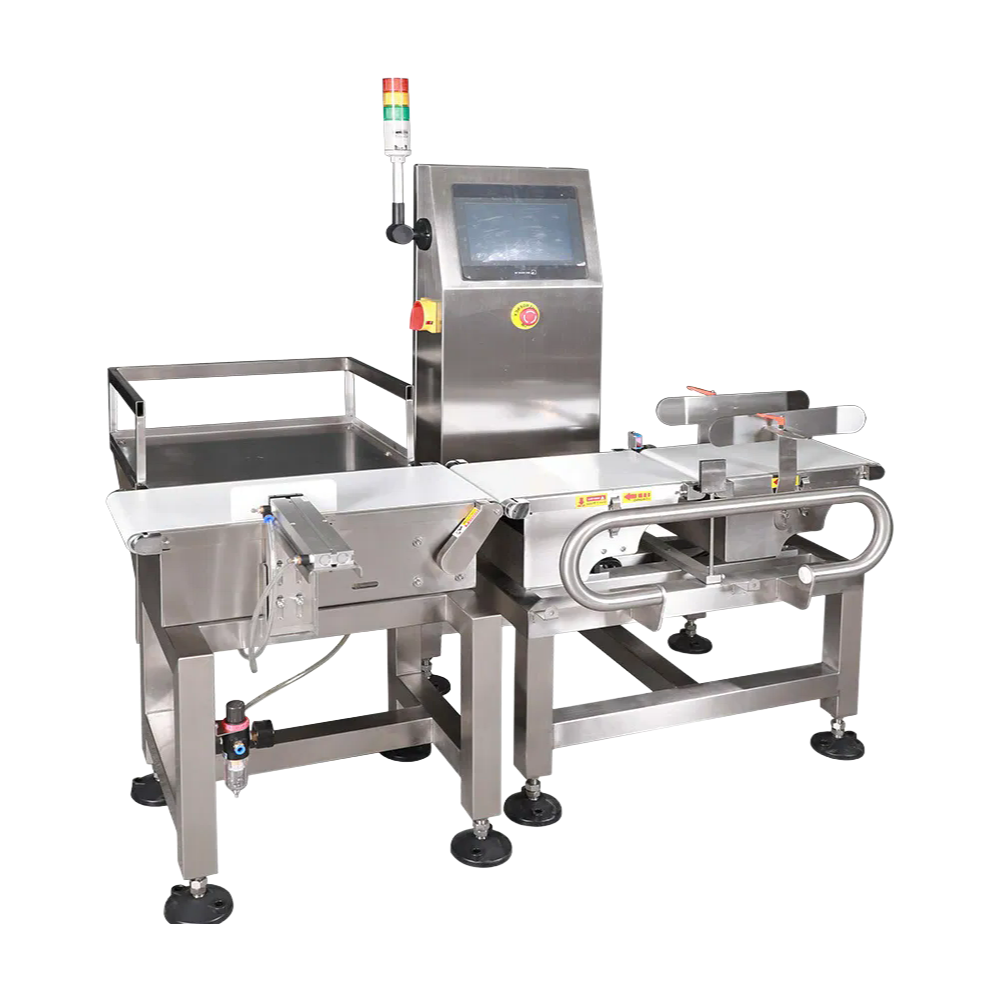

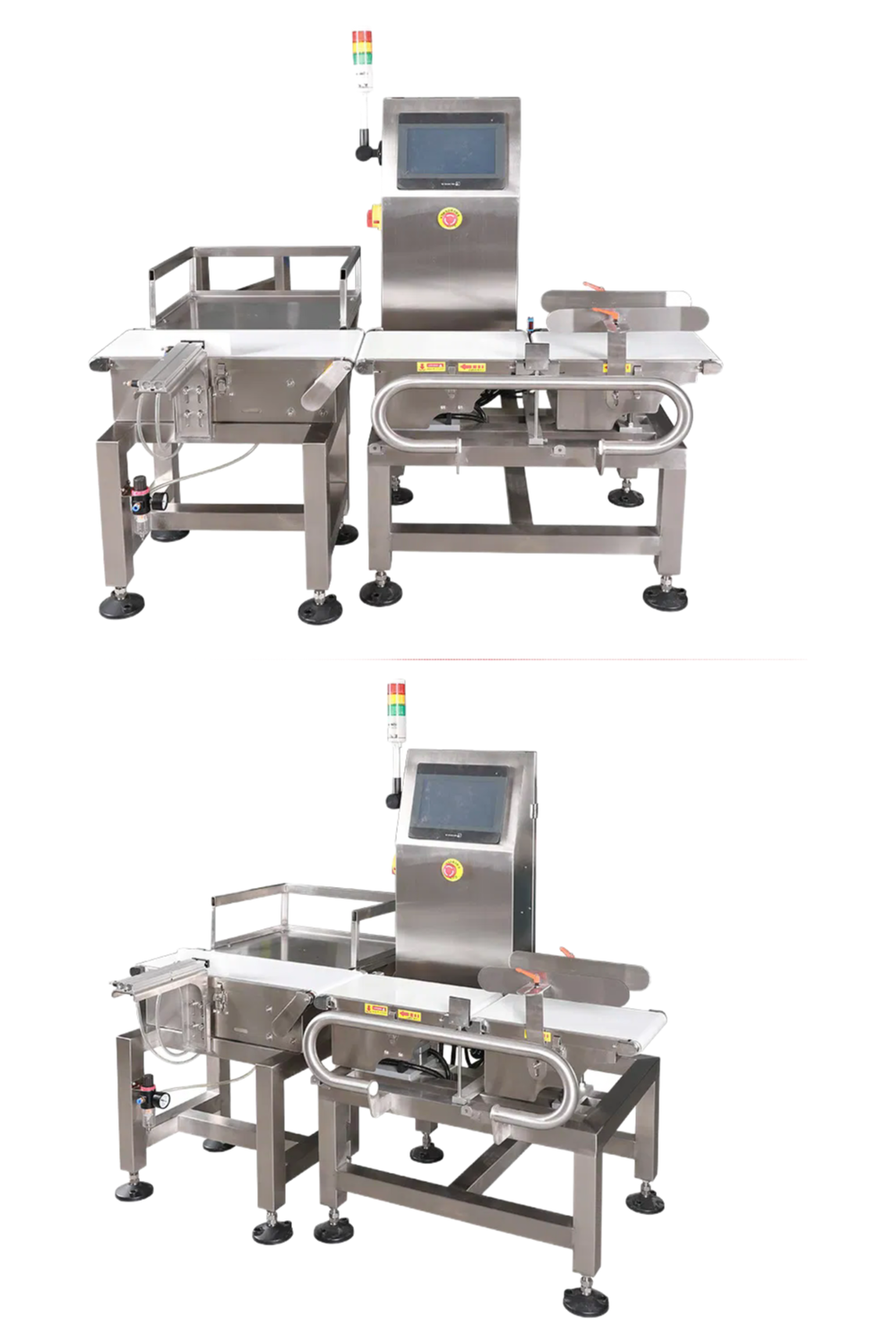

Industrial Grade Automatic Weight Classifier Conveyor with 10.1 Inch Touch Display

When you're running high-speed snack packaing line pushing through 60 bags a minute, the last thing you need is a manual scale bottleneck — this JD-520 is basically the automated checkpoint that catches underfills before they hit the box.

Weighing range sits at 1 to 200 grams with a minimum scale of 0.07g, and teh sorting accuracy lands between ±0.2g and ±1g depending on your product consistency and belt speed — that 15-30 m/min adjustment gives you some room to dial it in for different runs.

The 10.1-inch color TFT touch display runs Chinese or English (you can customize that), and whole frame is 304 stainless steel so it holds up to washdowns in food plants, but don't expect it to handle anything over 200g — the 1-200g range is pretty firm, and we've seen buyers try to push 250g through it with mixed results.

Belt height is 750mm as standdard but we can adjust that if your infeed conveyor sits higher or lower — just confirm the dimension when ordering.

Power draw is 300W at 220V 50Hz, machine weight is 150kg, and the footprint is roughly 1700×635×1335 mm — you'll want to measure your floor space before it arrives (usually 2-3 weeks lead time).

Also, the sorting method is just two outputs — accept and reject — so if you need three-way sorting you're looking at a different machine entirely.
