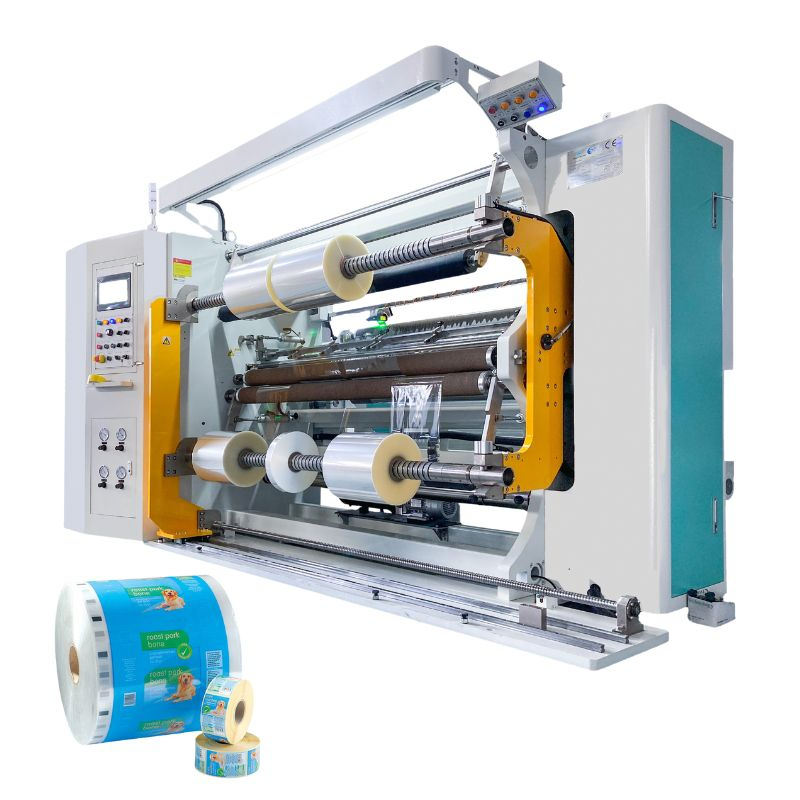

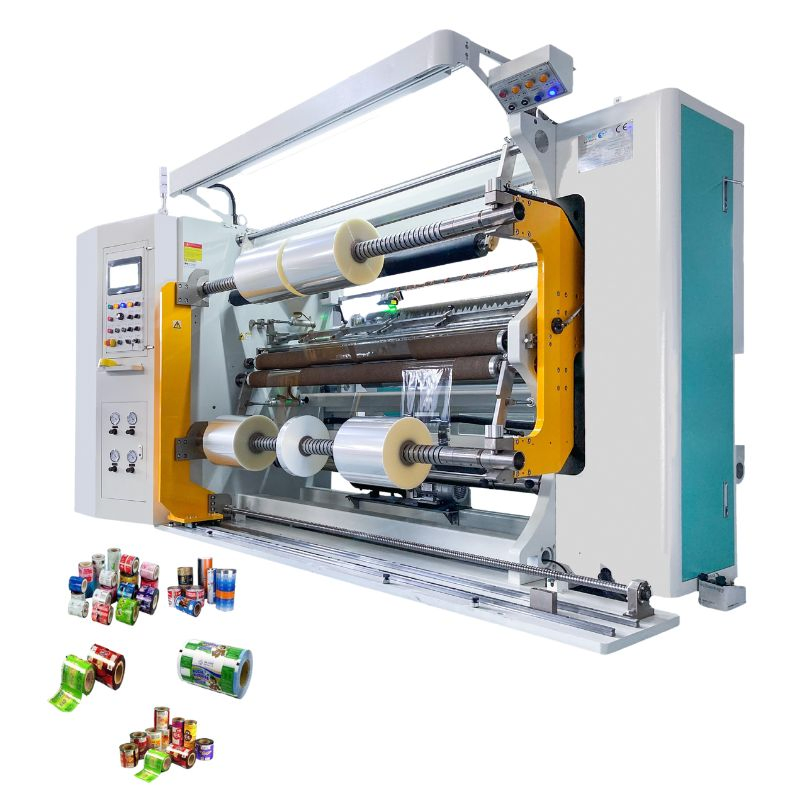

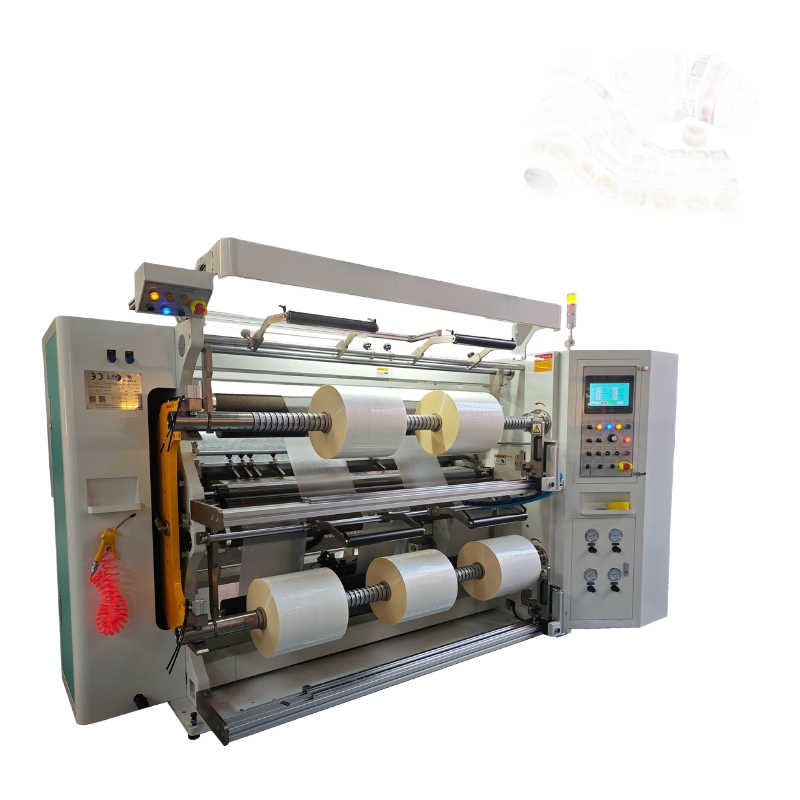

High Speed Matte Foil Slitter Rewinder Machine for Film & Foil Processing 1300mm Max Width

You’re looking at a 1300mm max web width machine that hits 500 m/min at top end, handling foils and films from 12 to 200 microns thick — the HN1300 uses a shaftless 3-inch and 6-inch unwind with magnetic powder brake tension control, which is critical for maintaining consistent nip presure across the slit web, especially when you’re running aluminum foil or metalized PET that tends to wrinkle under uneven tension.

We’ve set the minimum slit width at 40mm, but you can push it a bit tighter if your tooling is dialed in — most buyers running hot stamping foils or holographic laminates actually stay above 50mm to avoid edge curl on the rewound rolls. The EPC edge guiding system keeps the web tracking true during the unwind, so you’re not chasing wandering edges through the knife station.

It basically handles BOPP, PVC, LDPE, PET, and aluminum foil, but what it’s really built for is matte foil and hot stamping foil — that’s where the matte finish on the rollers matters, reducing static buildup and surface marking on coated films. The max unwind is 800mm standard or 1000mm optional, and the rewind maxes out at 600mm with an 800mm option (usually 2-4 weeks lead time on the larger rewind).

And you’ll want to check the material outgassing if you’re running 12-micron PET — the tension profile changes pretty dramatically below 20 microns, so we recommend a slow ramp-up during the initial setup. The PLC controls let you store recipes for different film grades, which saves time when swapping between holographic foil and clear BOPP on the same shift.

One limitation — this machine isn’t suited for sticky tapes or adhesive-coated laminates without a release liner; the magnetic powder brake and rubber-covered rollers will grab adhesive residue and cause tracking issues. We typically quote 30-45 days for dilevery form order, though we keep a few units in partial build for quick ship. The 380V power supply is fixed, so you’ll need a transformer if your facility runs 480V.

the key components for a year — PLC, servo motors, bearings — but the knives and wear items like the rubber rollers are consumables. We usually have stock on the standard 3-inch and 6-inch air shafts, but the 1000mm unwind option may require a longer lead time (check with us first). Also, the machine dimensions are 3690 by 2550 by 1970mm at roughly 3500kg, so plan your floor loading accordingly.
