Especially for buyers in the US and EU, the CE and ISO9001 certifications mean we've already dealt with the compliance paperwork—standerd shippng includes teh COA and any import docs you might need for customs clearance.
It can handle a 700kg workpiece on that 950×650mm table, with travel at 500×630mm and Z-axis movement up to 800mm, so you're not constantly repositioning heavy dies or molds.
What it actually does is cut at 120mm²/min with a positioning accuracy within 0.02mm—better than most mid-range wire EDM units we've handled here in the warehouse, and the suface finish lands right around Ra 2.5μm when you dial it in.
taper angle hits ±6° over 80mm (check the spec if you need steeper—this isn't high-angled machine for complex draft angles, it's more a general production workhorse), and most buyers go with the 380V option for consistent power draw at 1.5kW.
Roughly 20 days or so lead time if we've got stock—but that can stretch if demand spikes, and we usually have 3-5 units ready to ship out of the Shanghai warehouse.

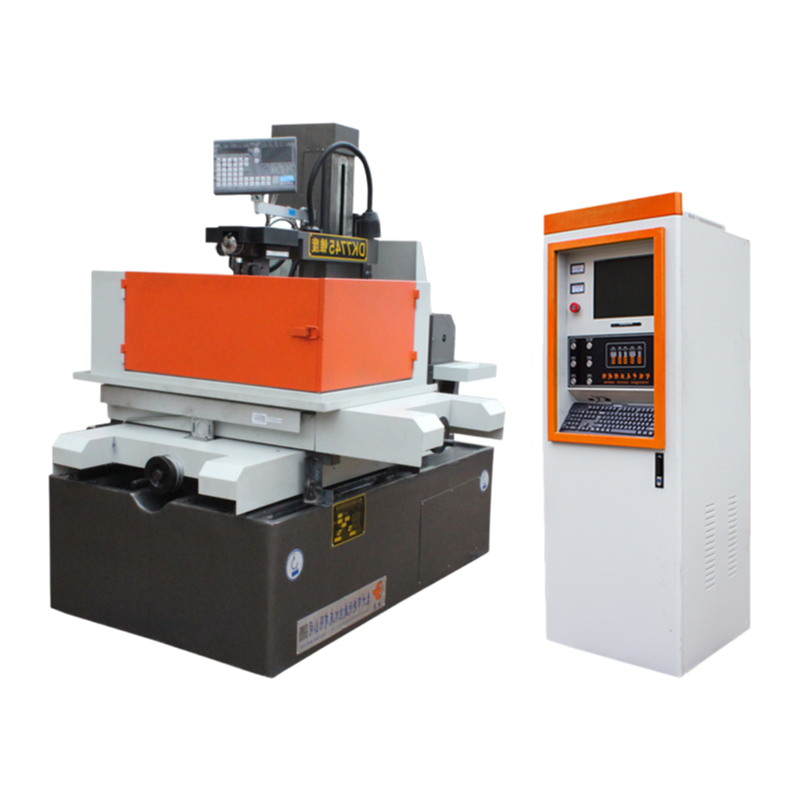

Anyway, the DK7750 ships on a pallet strapped down, 1800kg total, dimensoins 2000x1500x1900mm, and you'll want a forklift at least 2 tons to unload it.
No, the ±6° taper is only guaranteed up to 80mm thickness. For thicker workpieces, the achievable angle decreases, so you'd need to check with us for your specific dimensions.
We typically require a MOQ of 1 unit for this model, but we can discuss bulk discounts if you're ordering multiple machines.
Yes, both CE and ISO9001 certificates are included with the machine, and we can send you copies before shipment if needed.
Standard lead time is about 30-45 days. Customizations like switching to 220V or 380V don't add much time, but major mods might push it to 60 days.
The machine is shipped in a wooden crate with foam padding. For storage, keep it in a dry, dust-free area with temperatures between 5°C and 40°C to prevent rust or electrical damage.
