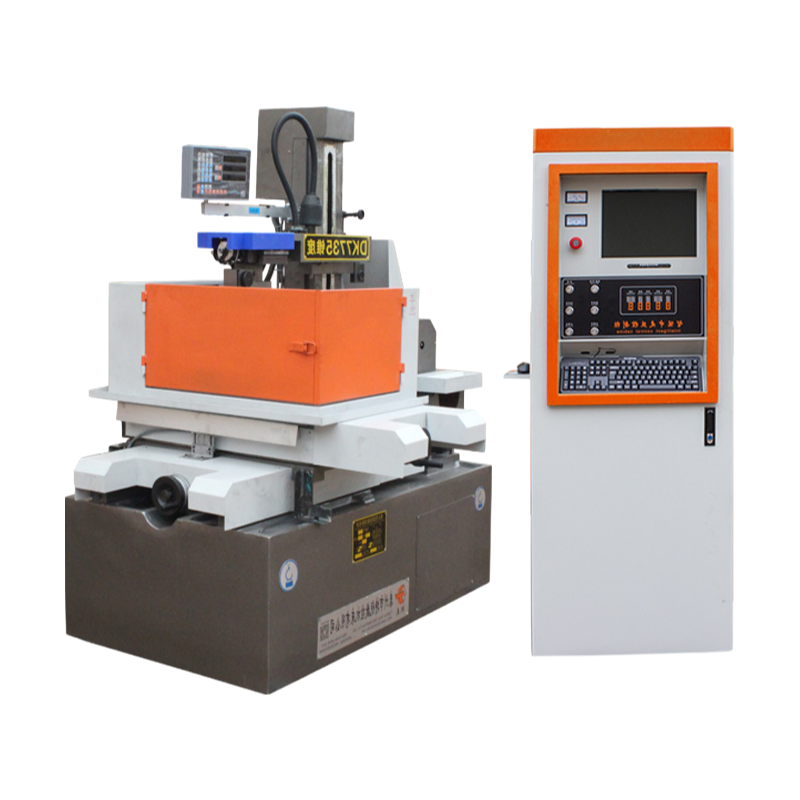

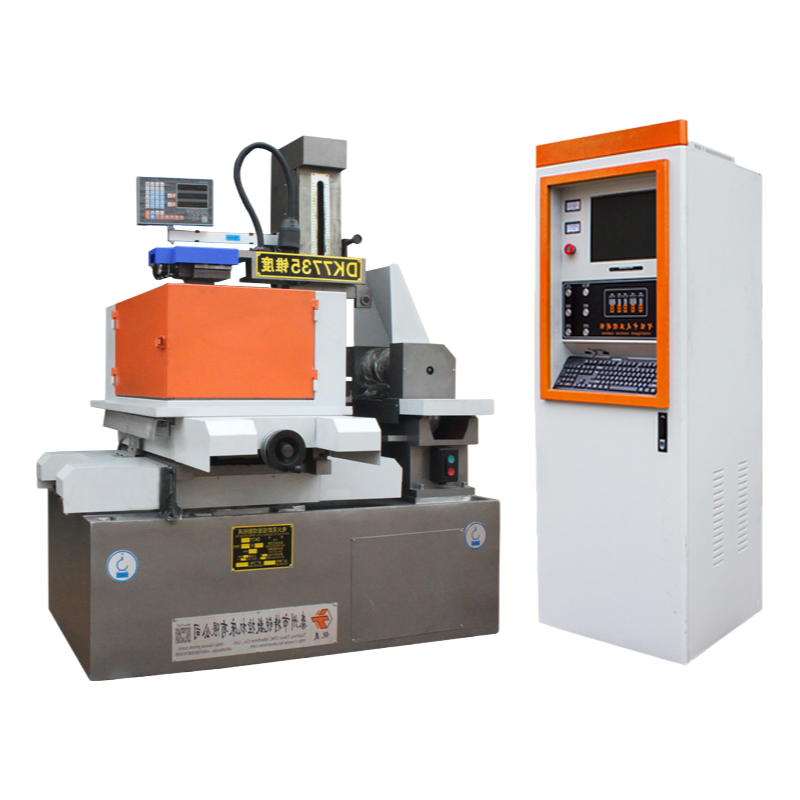

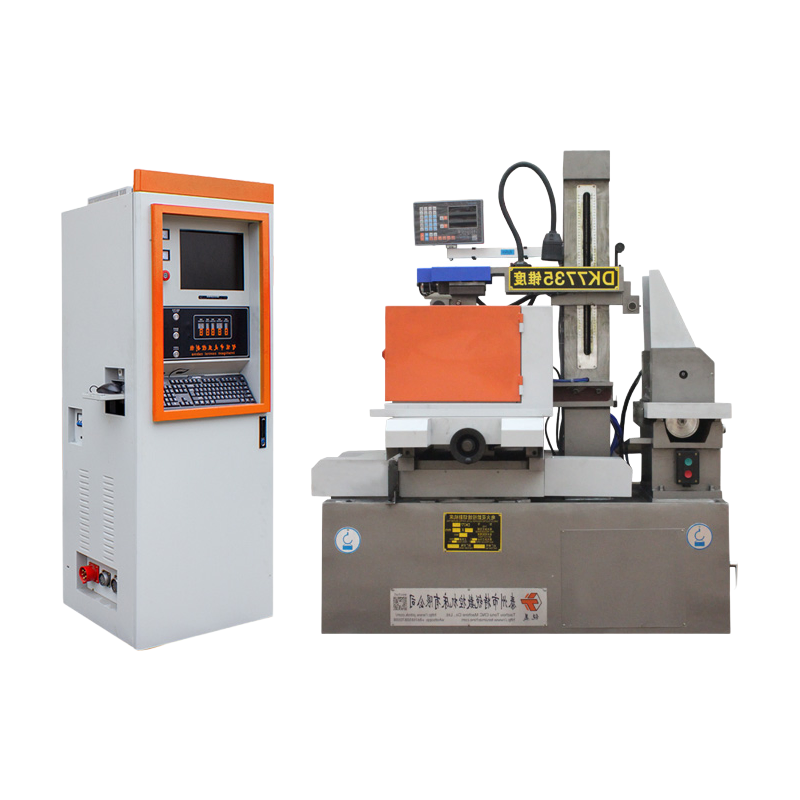

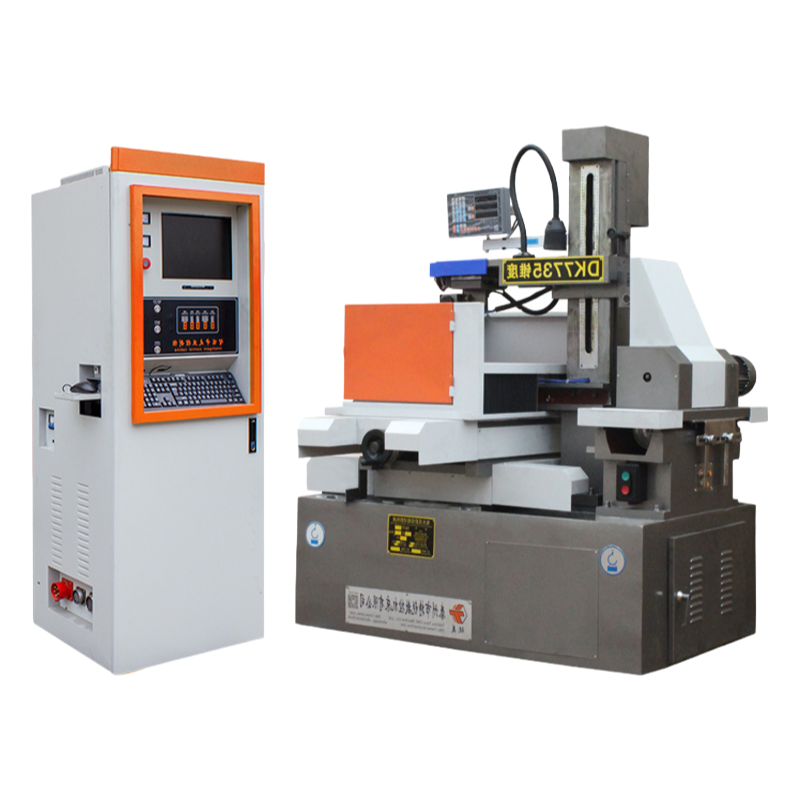

They’ve got a 950×650mm worktable on this one, and the travel is 500×630mm — enough for most stainlss jobs we run, and the Z-axis goes up to 800mm so thick plates aren’t a problem. speed peaks at 120mm²/min, surface roughness comes in around Ra2.5μm, and the positioning accuracy holds to ≤0.02mm, which is tighter than a lot of older gear we’ve used.
1.5kW power draw at 220V or 380V, depending on what you’ve got in the shop, and it weighs about 1800kg so you’ll need a solid floor or a pallet jack to move it. The taper capasity is ±6° over 80mm, which is handy for angled cuts but not for deep tapers — we usually keep it under 50mm for those.
Most of our buyers are in precision engineering shops or tool-and-die houses, basically guys hardened steel or carbide where tolerance matters more than speed. It’s not really suited for high-volume — the wire eats through slower than a laser, but the finish is better than reagent grade for this kind of work.
We source these through a suppiler we’ve worked with for a few years, and they typically hold stock on the DK7750 — lead time is usually 2-4 weeks, but check if you need a specific voltge or a custom control panel. The machine ships on a wooden crate with foam inserts, and the control system is CNC intelligent type, so you’ll need someone who knows G-code basics to set it up.
Also, warranty runs 2 years, and they’ll send a COA with each unit — HPLC isn’t relevant here, but the CE and ISO9001 docs are standdard. One thing nobody mentions is the wire spool size: it takes a standard 0.25mm brass wire, and you’ll blow through roughly 50 meters per hour at max speed, so budget for consumables.
We can do a single unit for your first order, no minimum quantity required. Just let us know how many you need.
Standard lead time is about 30-45 days from order confirmation, depending on customization needs. We'll give you a precise timeline when you place the order.
Yes, we include CE, ISO9001, and SGS certificates with every shipment. We can send you copies before delivery if needed.
Absolutely, the ≤0.02mm accuracy is maintained across all materials, including stainless steel. The machine's CNC control compensates for material hardness during processing.
We pack it in a plywood crate with foam padding and waterproof lining to prevent any damage during transit. The machine weighs 1800kg, so we use heavy-duty straps and secure it properly.
