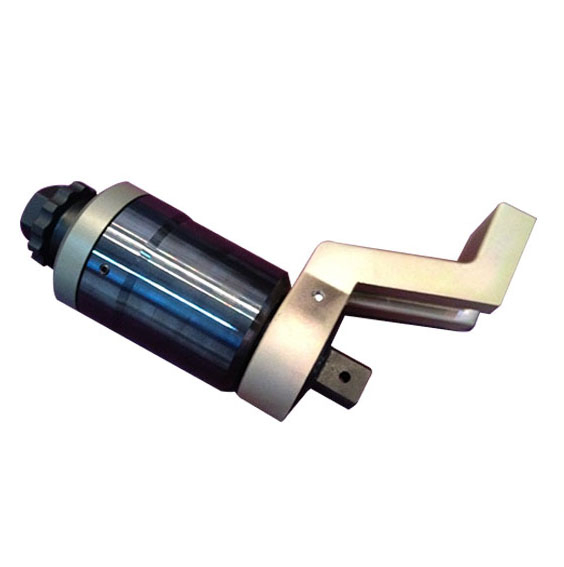

We've seen a lot of buyers frustrated when a stubborn flange bolt on a pipeline refuses to budge with standdard impact wrenches, and that's where this thing actually earns its keep—it'll break loose what a 1/2" gun just can't touch.
It basically delivers 3500 Nm at the nut through a 17.5:1 ratio, so what that means is a guy can get that torque with a standard ratchet instead of a 3/4" setup, and the input is 1/2" square while output is 1" square, covering bolts from M30 up to M45.
Accuracy is within ±5% on the drive, which is pretty good for a manual tool and beats guessing with a cheater bar, though you'll want to check the reaction foot clearance on tight installations (usually 2-4 weeks for that customization).
The electrophoretic coating holds up better than paint in petrochemical splash zones, but don't expect it to survive a direct caustic drip overnight—it's steel, not stainles.
We usually stock about 50 units or so, and most orders ship within 20 days in teh aluminum case with a full set of sockets from S46 to S70, so lead time is pretty consistent unless we're slammed on a big plant order.
And the warranty is one year, but honestly, if you're using it daily on M42 studs in a refinery, the gear train is what you'll wear out first, not the housing.
The input drive is 1/2" square, and the output drive is 1" square. That means you'll need a 1/2" drive ratchet or torque wrench to operate it, and it'll fit 1" drive sockets.
Yes, it includes interchangeable sockets in the package. It covers bolt sizes from M30 to M45 and nut sizes from S46 to S70.
The torque ratio is 17.5:1, so every 1 Nm you put in gives you 17.5 Nm out. Drive accuracy is within ±5%, which is solid for manual bolting work.
It's CE certified and meets ISO9001:2008 standards. We back it with a 1-year limited warranty against defects.
Yes, a reaction foot is available as a customization option. Just let us know your requirements when ordering.
