Wholesale H05VV-F 300/500V BS6500 3184Y Flexible Cable for Electrical Wiring

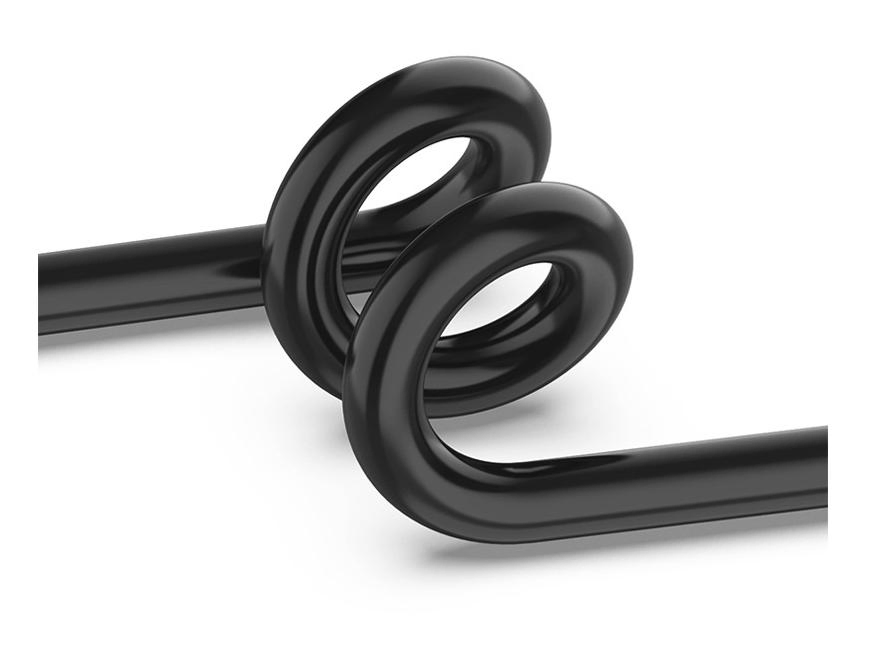

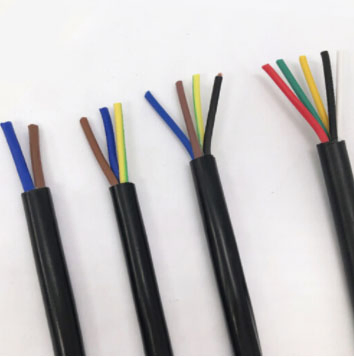

The H05VV-F 300/500V BS6500 3184Y flexible cable is designed for medium mechanical stresses, making it ideal for various electrical wiring applications. This 4 core cable features high-quality materials and construction to ensure durability and safety.

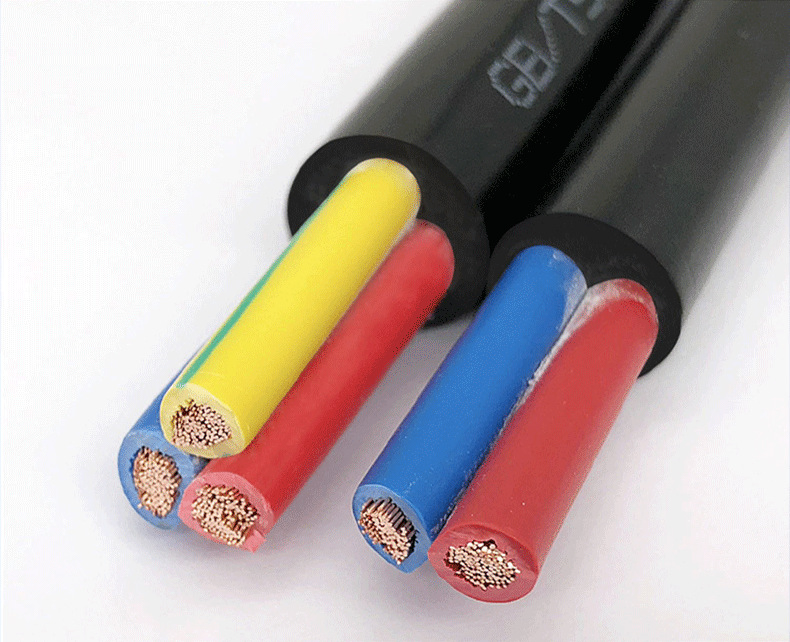

Constructed with bare copper fine wire or copper clad aluminum wire (CCA wire) stranded conductors, this cable meets IEC60228 Class 5 standards. The PVC insulation and sheath provide excellent protection against environmental factors.

Technical specifications include a temperature range of -30°C to +70°C for fixed installation, with short circuit tolerance up to 160°C for maximum 5 seconds. The nominal voltage is 300/500V for H05VV-F models.

This flame retardant cable complies with IEC60332-1 standards and features a minimum inner bending radius of 4D for diameters less than 8mm, 5D for 12mm, and 6D for diameters greater than 12mm.

Applications include household appliances (washing machines, dryers, refrigerators), office equipment, and fixed installations in furniture or partition walls. The cable is suitable for dry and damp conditions when properly adapted to device specifications.
