A buyer’s custoemr running a PET bottle blowing line would fire these up to get preforms up to softening temperture in seconds—no contact, just straight radiant heat. They use short wave mostly, with wavelengths tuned so the plastic absorbs energy fast, not just the air around it. This cuts cycle times roughly by half compared to a hot air oven, and it's not nearly as bulky on the floor.
The white ceramic reflector is what you pick when you want the beam spread wide across a large area—say a paint drying tunnel—versus a gold reflector which focuses tighter. You can get lengths from 100mm up to 3500mm, and power from 200W to 6000W, with voltage anywhere between 120 and 480V. Response time hits 2 seconds, which basically means you feel the heat near-instantly after hitting the switch.

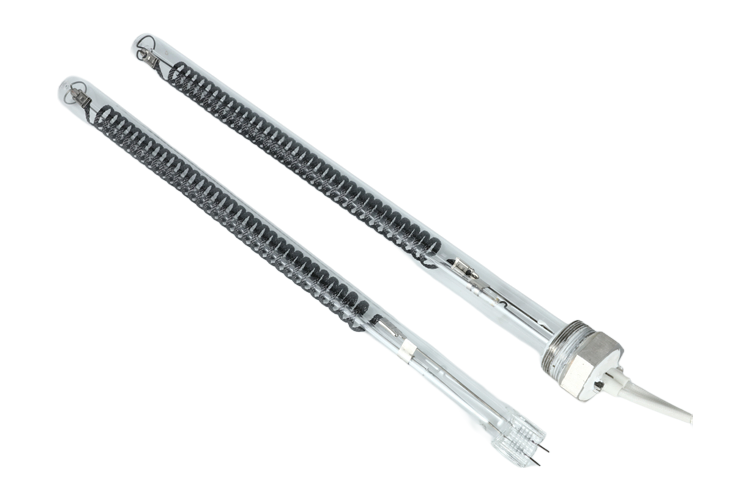

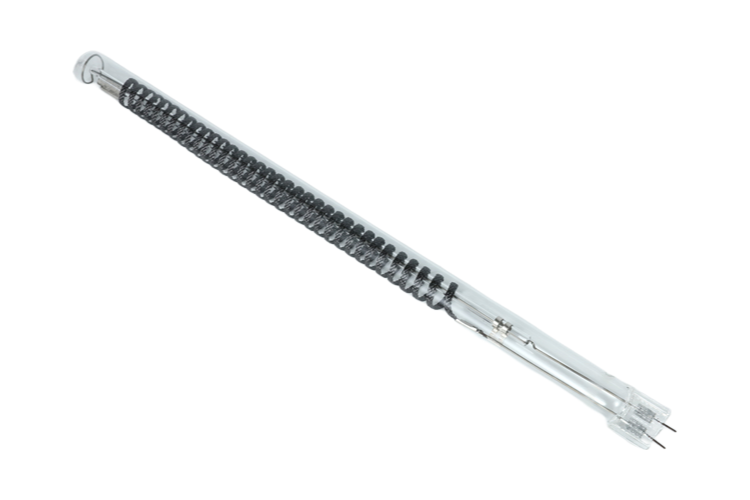

Quartz tubes come in diameters like 10mm, 12mm, 15mm, and those oval profiles like 11x23mm—the thicker ones handle higher watt densities without cooking themselves. End caps are Sk15 or R7s or ceramic, depending on your fixture, and you'll want to check diameter clearance before ordering. our company have a production lead time of 7-15 days for most configs.
Operating temperature goes up to 1000°C, but you won't need that for plastics drying or most paint curing—actually staying below 800°C extends the tube life, which is 5000-8000 hours depending on on-off cycles. Efficiency is rated up to 86%, better than reagent-grade coils for this use (they waste more energy as convective loss). CE cert is standard, COAs available per batch.
Anyway, one thing buyers new to these don't consider is that wavelength matters for absorption: dark materials grab short wave readily, but if you're heating clear glass or inside of a hollow form, medium wave is usually better. These lamps are not suited for food processing or any open-flame risk environments despite the high heat—they're strictly indutrial enclosures.
We don't have a strict MOQ; we can accommodate small trial orders. Just let us know the quantity and specs you need, and we'll work out a price for you.
Standard production time is 7-15 days from order confirmation, depending on the quantity and custom specs. Shipping time varies by destination, but we'll give you an exact ETA when you order.
Yes, all our quartz infrared lamps are CE certified. We can also provide a material test report or other compliance docs upon request to meet your quality checks.
Absolutely. We offer lengths from 100mm to 3500mm, power from 200W to 6000W, and voltages from 120V to 480V. Just send us your requirements, and we'll make them to match.
Each lamp is individually packed in shock-proof foam and then boxed to prevent breakage. For storage, keep them in a dry, cool place; they have a shelf life of over a year if unopened.
